NDR-240-48

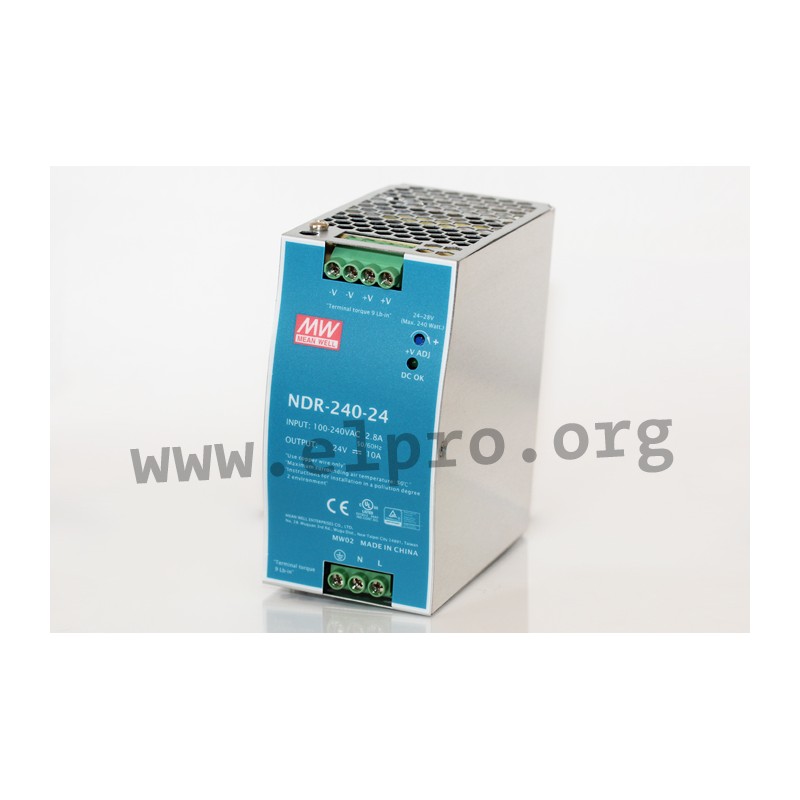

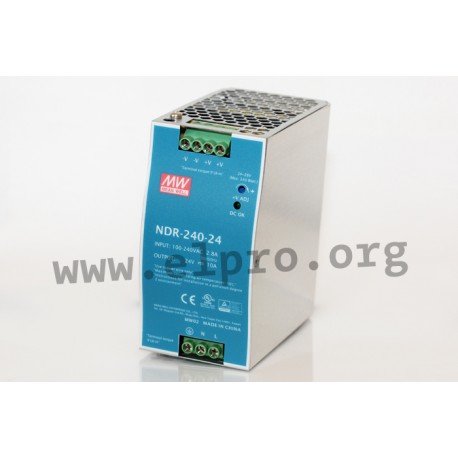

Mean Well DIN rail power supply series NDR-240

Switching power supplies in an enclosed housing with 240W, screw terminals (touch guard), an LED indicator and a universal input. These devices are suitable for DIN rail mounting and are protected against overload (auto recovery), short circuit as well as overvoltage. They have a fanless design and comply with EN61000-6-2, EN50082-2, EN62368-1, EN55032, EN61204-3 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: NDR-240-24 and NDR-240-48.

  • single output
  • output: 240W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 35A
  • leakage current: <1mA
  • output voltage adjustment: +15%
  • overload protection: 105 to 130%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -20 to +70°C
  • weight: 1000g

NDR-240-48

104819 NDR-240-48 NDR-240-48 4711287422299 Mean Well DIN rail power supply series NDR-240. Switching power supplies in an enclosed housing with 240W, screw terminals (touch guard), an LED indicator and a universal input. These devices are suitable for DIN rail mounting and are protected against overload (auto recovery), short circuit as well as overvoltage. They have a fanless design and comply with&nbsp;EN61000-6-2, EN50082-2, EN62368-1, EN55032, EN61204-3 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series:&nbsp;NDR-240-24 and NDR-240-48. single output output: 240W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 35A leakage current: &lt;1mA output voltage adjustment: +15% overload protection: 105 to 130% withstand voltage&nbsp;I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -20 to +70&deg;C weight: 1000g

Specifications

manufacturer
Manufacturer's name NDR-240-48
GTIN 4711287422299
Output voltage [V] 48
Efficiency [%] 90
Output current [A] 0...5
Output voltage tolerance: [%] 1
Output power [W] 240
Ripple [mVp-p] 150
Data Sheet

Unit price

38,09 €

Volume discounts

Quantity Unit price
50 + 37,19 €

Stock: 765
Next incoming goods:
CW 26/2024
1490 units


Further delivery:
CW 41/2024
