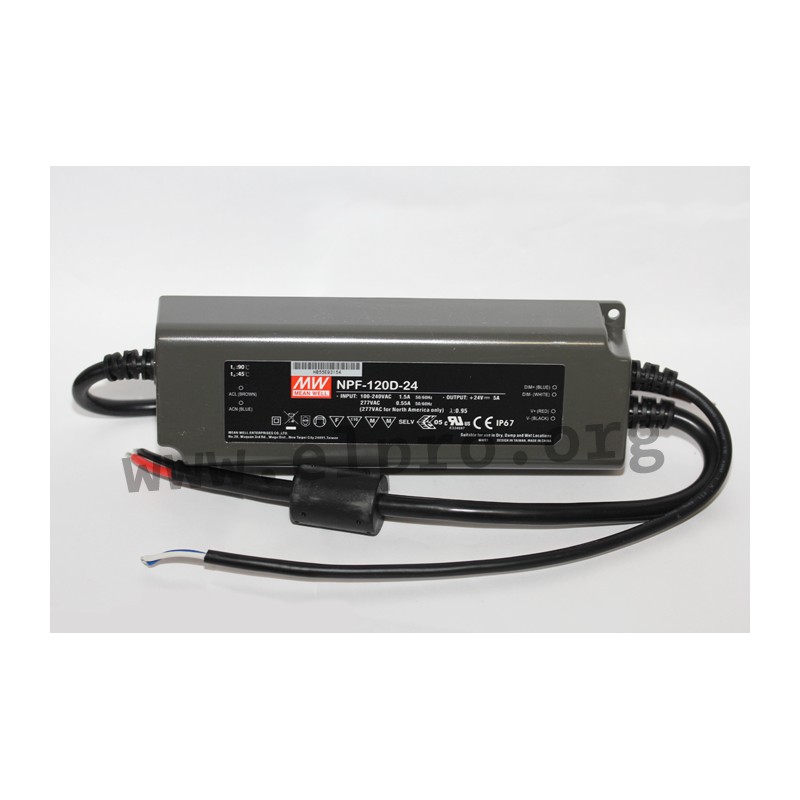

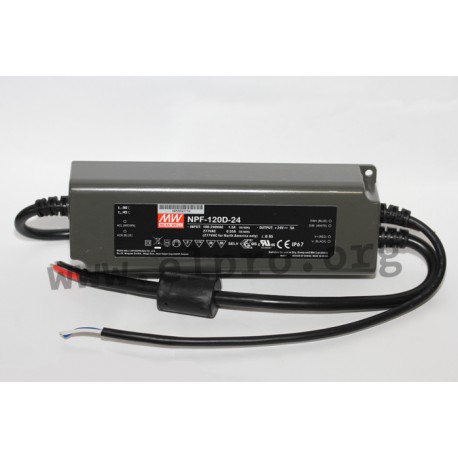

LED drivers in a plastic housing (IP67) with a constant current, 120W, a 3 in 1 dimming function (external voltage 0 to 10V DC, PWM, potentiometer) and a low no-load power. These devices comply with EN61000-3-2, class C, EN55015, EN61347-1 as well as EN61347-2-13 and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: NPF-120D-12, NPF-120D-15, NPF-120D-20, NPF-120D-24, NPF-120D-30, NPF-120D-36, NPF-120D-42, NPF-120D-48 and NPFD-120-54.
Discontinued items. Only remainder of stock available.
|Output voltage [V]||36|
|Output current [A]||3,4|
|Output power [W]||122,4|
|Output voltage tolerance: [%]||2|
