NPF-40D-20

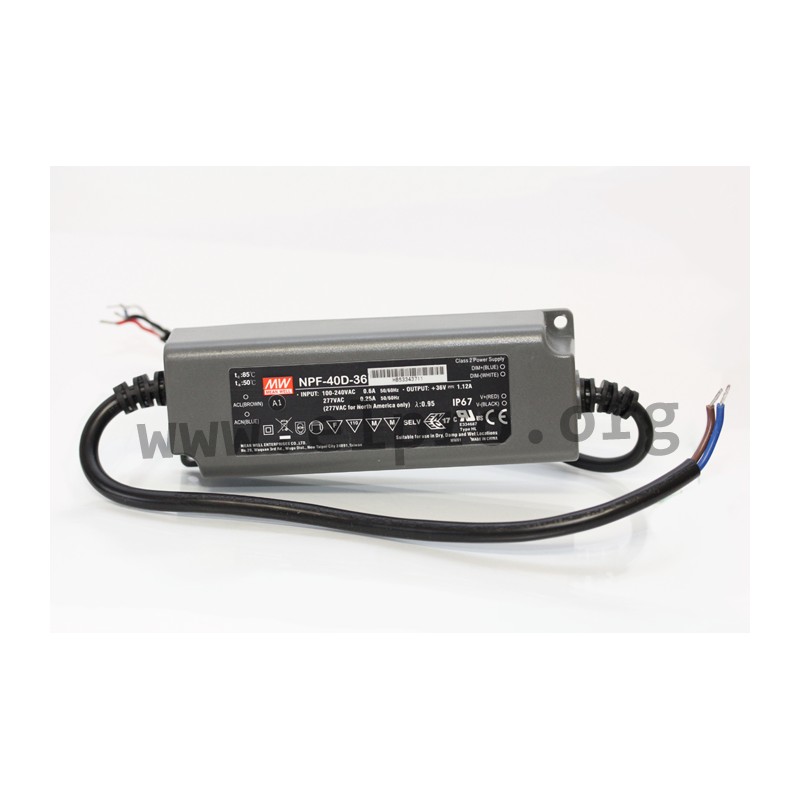

Mean Well LED driver series NPF-40D

LED drivers in a plastic housing (IP67) with a low no-load power, a constant current / constant voltage (mixed mode), a 3 in 1 dimming function (external voltage 1 to 10V DC, PWM, potentiometer) and 40W. These devices comply with EN61000-3-2, class C, EN55015, EN61347-1 as well as EN61347-2-13 and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: NPF-40D-12, NPF-40D-15, NPF-40D-20, NPF-40D-24, NPF-40D-30, NPF-40D-36, NPF-40D-42, NPF-40D-48 and NPF-40D-54.

  • single output
  • output: 40 to 41,04W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 50A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • dimensions: 150x53x35mm
  • weight: 490g

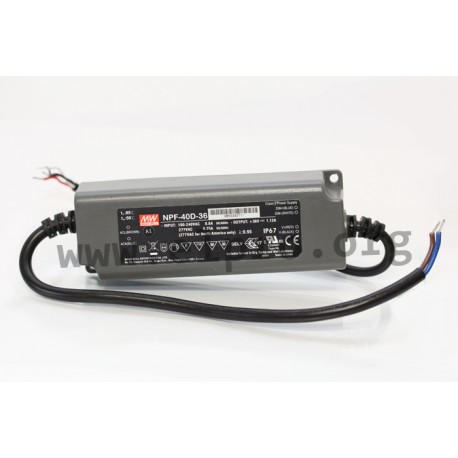

Meanwell NPF-40D series

NPF-40D-20

45585 NPF-40D-20 NPF-40D-20 4711287459493 Mean Well LED driver series NPF-40D. LED drivers in a plastic housing (IP67) with a low no-load power, a constant current / constant voltage (mixed mode), a 3 in 1 dimming function (external voltage 1 to 10V DC, PWM, potentiometer) and 40W. These devices comply with EN61000-3-2, class C, EN55015, EN61347-1 as well as EN61347-2-13 and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: NPF-40D-12, NPF-40D-15, NPF-40D-20, NPF-40D-24, NPF-40D-30, NPF-40D-36, NPF-40D-42, NPF-40D-48 and NPF-40D-54. single output output: 40 to 41,04W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 50A no-load power: &lt;0,5W withstand voltage I/P-O/P: 3750V AC dimensions: 150x53x35mm weight: 490g

Specifications

manufacturer
Manufacturer's name NPF-40D-20
GTIN 4711287459493
Output voltage [V] 20
Efficiency [%] 88
Output current range [A] 2
Output voltage tolerance: [%] 4
Output power [W] 40
Ripple [mVp-p] 150
Data Sheet

Unit price

22,79 €

Volume discounts

Quantity Unit price
50 + 21,29 €

Stock: 46
Further delivery:
CW 32/2024
