NPF-40D-24

LED switching power supply NPF-40D by Meanwell

These switching power supplies have a constant current, a low no-load power as well as a fixed output voltage and are suitable for LED and illumination applications (indoor/outdoor). The devices are dimmable (external voltage 1 to 10 volt DC, PWM, potentiometer). Endued with universal AC input and built-in PFC function, plastic enclosure (IP67) and are protected against short circuit, overvoltage and overload by current limitation (auto recovery). We offer the following types by manufacturer Mean Well: NPF-40D-12, NPF-40D-15, NPF-40D-20, NPF-40D-24, NPF-40D-30, NPF-40D-36, NPF-40D-42, NPF-40D-48 und NPF-40D-54

• output: 40.08 watt
• input voltage: up 127 to 431 volt DC, 90 to 305 volt AC (47 to 63Hz)
• output constant current range: 60 to 100%
• maximal input inrush current: 50A
• maximal no load power consumption: 0.5W
• 95 to 108% over current protection
• I/P-O/P, withstand voltage: 3750 volt AC
• operating temperature: up -40 to +70°C
• by Meanwell
• weight: 0.49 kg

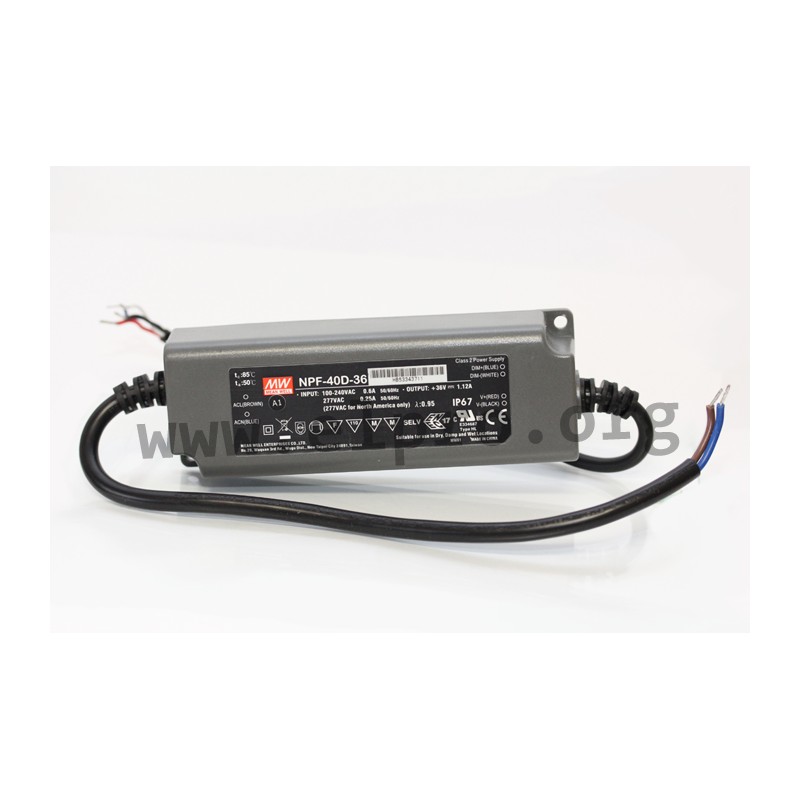

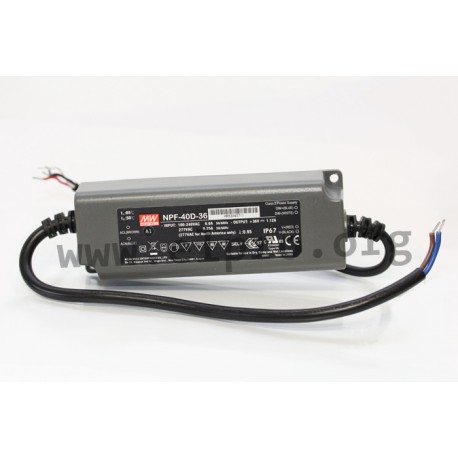

Meanwell NPF-40D series View larger

NPF-40D-24

45586 NPF-40D-24 NPF-40D-24 LED switching power supply NPF-40D by Meanwell. These switching power supplies have a constant current, a low no-load power as well as a fixed output voltage and are suitable for LED and illumination applications (indoor/outdoor). The devices are dimmable (external voltage 1 to 10 volt DC, PWM, potentiometer). Endued with universal AC input and built-in PFC function, plastic enclosure (IP67) and are protected against short circuit, overvoltage and overload by current limitation (auto recovery). We offer the following types by manufacturer Mean Well: NPF-40D-12, NPF-40D-15, NPF-40D-20, NPF-40D-24, NPF-40D-30, NPF-40D-36, NPF-40D-42, NPF-40D-48 und NPF-40D-54• output: 40.08 watt• input voltage: up 127 to 431 volt DC, 90 to 305 volt AC (47 to 63Hz)• output constant current range: 60 to 100%• maximal input inrush current: 50A• maximal no load power consumption: 0.5W• 95 to 108% over current protection• I/P-O/P, withstand voltage: 3750 volt AC• operating temperature: up -40 to +70°C• by Meanwell• weight: 0.49 kg

Data sheet

manufacturer
manufacturer's name NPF-40D-24
output voltage [V] 24
efficiency [%] 89
output current range [A] 1,67
output power [W] 40,08
output voltage tolerance: [%] 3
ripple [mVp-p] 150

Download

Data Sheet

23,10 €

Volume discounts

20 pcs. / 20,40 €

stock: 53
