NPF-60-12

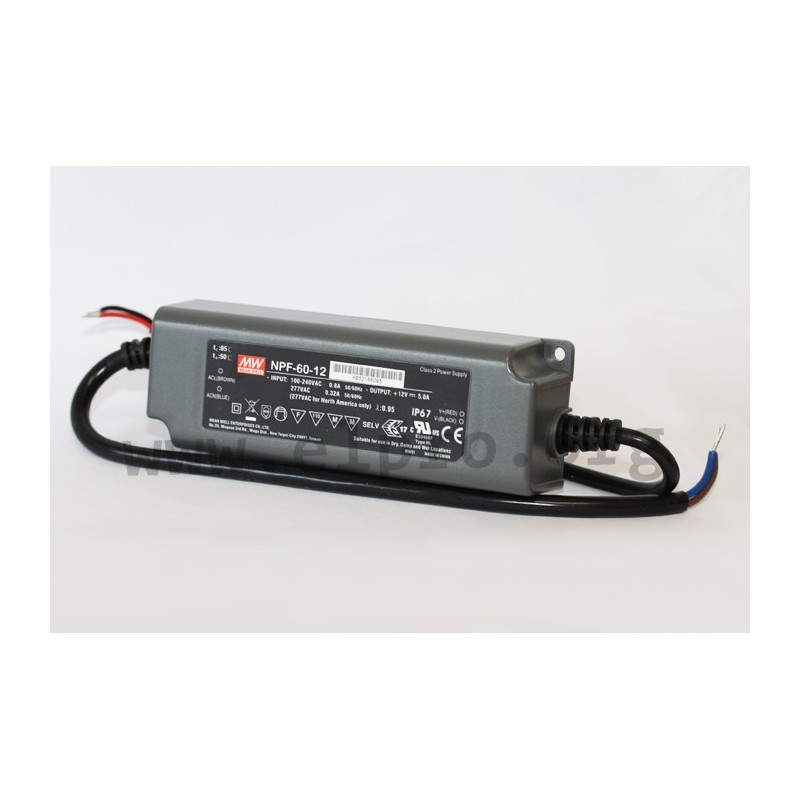

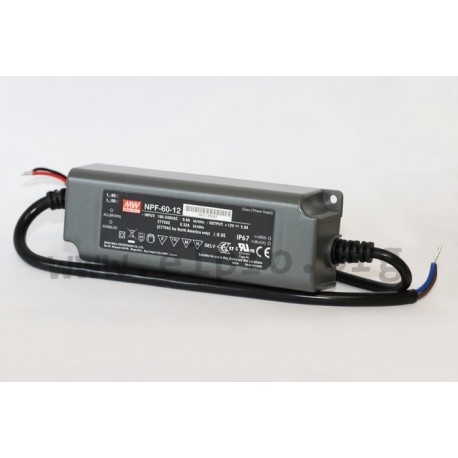

Mean Well LED driver series NPF-60

LED drivers in a plastic housing (IP67) with a low no-load power, 60W and a universal input. These devices comply with EN61000-3-2, class C, EN55015, EN61347-1 as well as EN61347-2-13 and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: NPF-60-12, NPF-60-15, NPF-60-20, NPF-60-24, NPF-60-30, NPF-60-36, NPF-60-42, NPF-60-48 and NPF-60-54.

  • single output
  • output: 60 to 60,48W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 50A
  • no-load power: <0,15W
  • overcurrent protection: 95 to 108%
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -40 to +70°C

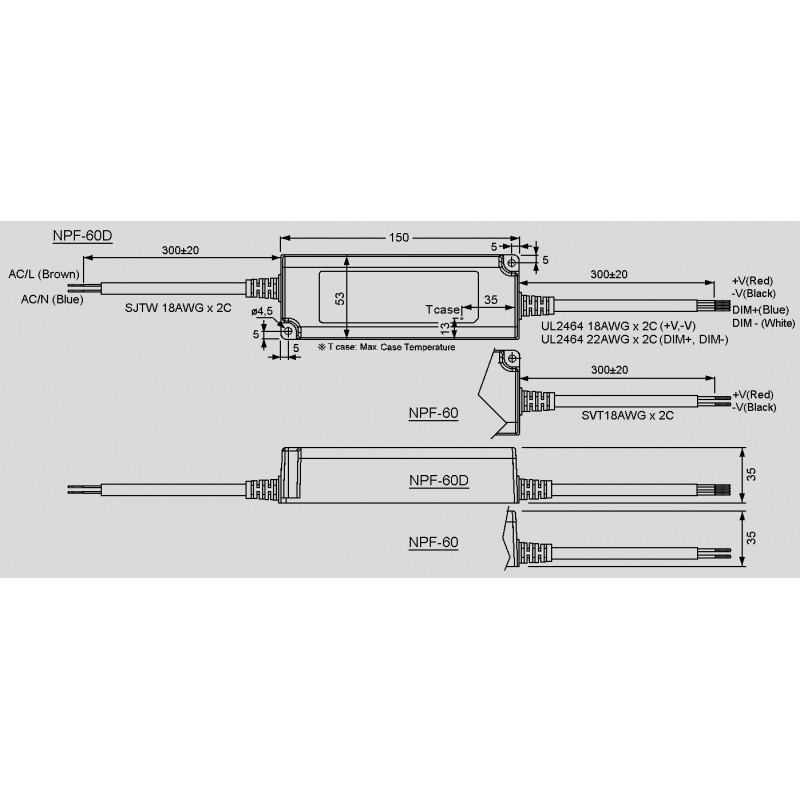

  • dimensions: 150x53x35mm
  • weight: 490g

NPF-60-12

45592 NPF-60-12 NPF-60-12 4711287459141 Mean Well LED driver series NPF-60. LED drivers in a plastic housing (IP67) with a low no-load power, 60W and a universal input. These devices comply with EN61000-3-2, class C, EN55015, EN61347-1 as well as EN61347-2-13 and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: NPF-60-12, NPF-60-15, NPF-60-20, NPF-60-24, NPF-60-30, NPF-60-36, NPF-60-42, NPF-60-48 and NPF-60-54. single output output: 60 to 60,48W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 50A no-load power: &lt;0,15W overcurrent protection: 95 to 108% withstand voltage I/P-O/P: 3750V AC operating temperature: -40 to +70°C dimensions: 150x53x35mm weight: 490g

Specifications

manufacturer
Manufacturer's name NPF-60-12
GTIN 4711287459141
Output voltage [V] 12
Efficiency [%] 86
Output current range [A] 5
Output voltage tolerance: [%] 4
Output power [W] 60
Ripple [mVp-p] 150
Data Sheet

Unit price

20,59 €

Volume discounts

Quantity Unit price
50 + 19,29 €

Stock: 0
Next incoming goods:
CW 25/2024
21 units


Further delivery:
CW 29/2024
