NPP-1200-24

Mean Well battery charger series NPP-1200

External battery chargers with a 3-stage charging curve, a remote ON/OFF control and a built-in fan. These devices can be used as power supplies as well as battery chargers, are suitable for lead-acid batteries and are protected against overload, overtemperature, overvoltage as well as short circuit. They have a built-in potentiometer for adjusting the output voltage / output current and comply with EN62368-1 as well as EN60335-1/2-29. We offer the following types of this Mean Well series: NPP-1200-12, NPP-1200-24 and NPP-1200-48.

  • output: 1176 to 1209,6W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • AC current: 6,5A
  • maximal input inrush current: 50A
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • storage temperature: -40 to +85°C
  • dimensions: 250x158x67mm
  • weight: 1930g

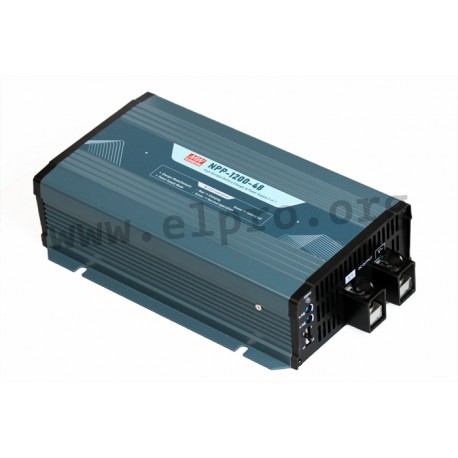

NPP-1200-24, Mean Well external battery chargers, 1200W, for lead-acid batteries, NPP-1200 series

NPP-1200-24

241300 NPP-1200-24 NPP-1200-24 4711287421537 Mean Well battery charger series NPP-1200. External battery chargers with a 3-stage charging curve, a remote ON/OFF control and a built-in fan. These devices can be used as power supplies as well as battery chargers, are suitable for lead-acid batteries and are protected against overload, overtemperature, overvoltage as well as short circuit. They have a built-in potentiometer for adjusting the output voltage / output current and comply with EN62368-1 as well as EN60335-1/2-29. We offer the following types of this Mean Well series: NPP-1200-12, NPP-1200-24 and NPP-1200-48. output: 1176 to 1209,6W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC AC current: 6,5A maximal input inrush current: 50A withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -30 to +70°C storage temperature: -40 to +85°C dimensions: 250x158x67mm weight: 1930g

Specifications

manufacturer
Manufacturer's name NPP-1200-24
GTIN 4711287421537
Charging voltage [V] 28,8
Float charge voltage [V] 27,6
Recommended accu capacity [Ah] 120...420
Efficiency [%] 93
Output current [A] 36
Data Sheet

Unit price

214,29 €

Volume discounts

Quantity Unit price
50 + 210,59 €

Stock: 4
Further delivery:
CW 34/2024
