PLD-16-350B

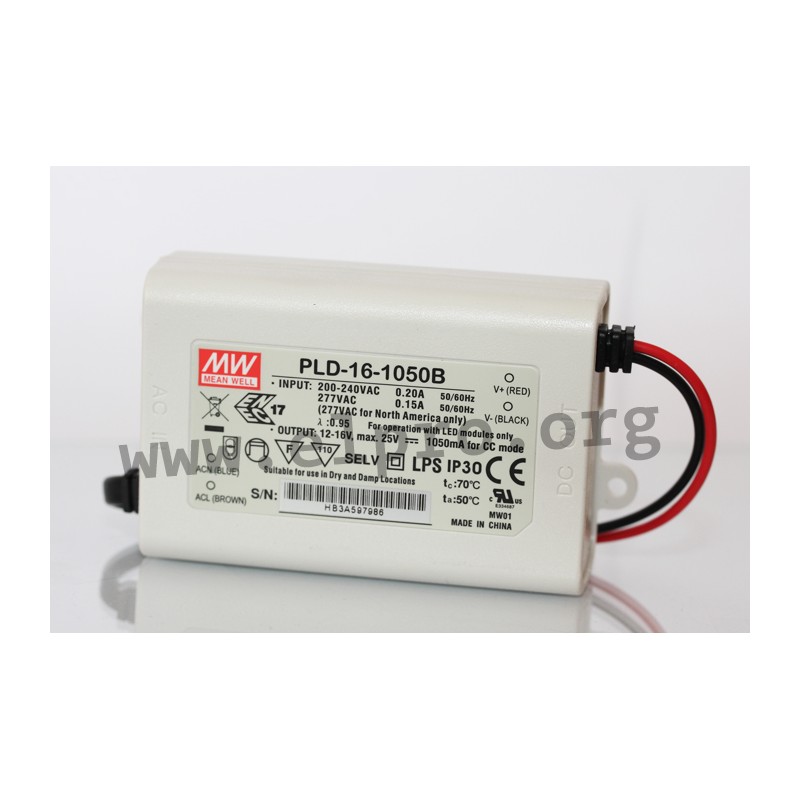

Mean Well LED driver series PLD-16

LED drivers in a plastic housing (IP42) with a constant current, 16,8W and a stranded wire connection. These devices comply with EN61000-3-2, Class C, EN55015, EN61347-1 as well as EN61347-2-13 and are protected against overtemperature, overload (auto recovery) as well as short circuit. They have a built-in active PFC function and are suitable for LED lighting applications. We offe the following types of this Mean Well series: PLD-16-350B, PLD-16-1050B and PLD-16-1400B.

  • single output
  • output: 16,8W
  • input voltage: 180 to 295V AC (47 to 63Hz)
  • maximal input inrush current: 20A
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -30 to +50°C

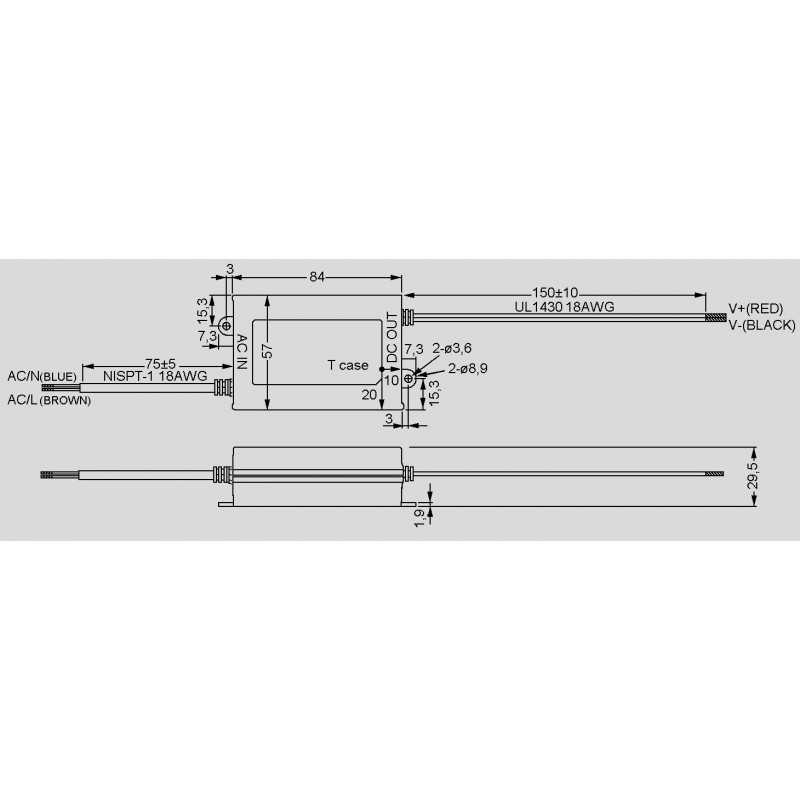

  • dimensions: 58x57x29,5
  • weight: 190g
PLD-16-350B

PLD-16-350B

37724 PLD-16-350B PLD-16-350B 4711287439754 Mean Well LED driver series PLD-16. LED drivers in a plastic housing (IP42) with a constant current, 16,8W and a stranded wire connection. These devices comply with EN61000-3-2, Class C, EN55015, EN61347-1 as well as EN61347-2-13 and are protected against overtemperature, overload (auto recovery) as well as short circuit. They have a built-in active PFC function and are suitable for LED lighting applications. We offe the following types of this Mean Well series: PLD-16-350B, PLD-16-1050B and PLD-16-1400B. single output output: 16,8W input voltage: 180 to 295V AC (47 to 63Hz) maximal input inrush current: 20A withstand voltage I/P-O/P: 3750V AC operating temperature: -30 to +50°C dimensions: 58x57x29,5 weight: 190g

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name PLD-16-350B
GTIN 4711287439754
Output voltage [V] 24...48
Phase 2 phase
Output current range [mA] 0...350
Ripple [Vp-p] 4,6
Efficiency [%] 85,5
Output power [W] 16,8
Data Sheet

Unit price

14,69 €

Volume discounts

Quantity Unit price
50 + 13,89 €

Stock: 21
