PSC-160B

Mean Well battery charger series PSC-160

Open frame (PSC-160A, PSC-160B) or closed frame (PSC-160A-C, PSC-160B-C) type switching power supplies with 160W, a universal input, a battery charger, a battery low signal, a battery low protection and a power fail signal. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a UPS function and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: PSC-160A, PSC-160B, PSC-160A-C, and PSC-160B-C.

  • single output
  • output: 160W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 70A
  • leakage current: <1mA
  • overload protection: 105 to 150%
  • withstand voltage  I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -20 to +70°C
  • weight: 350g

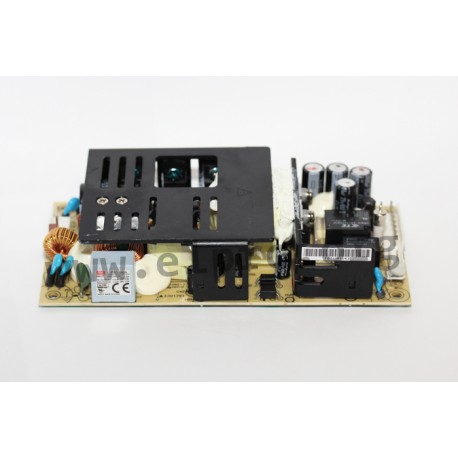

Meanwell PSC-160 series

PSC-160B

45042 PSC-160B PSC-160B 4711232760544 Mean Well battery charger series PSC-160. Open frame (PSC-160A, PSC-160B) or closed frame (PSC-160A-C, PSC-160B-C) type switching power supplies with 160W, a universal input, a battery charger, a battery low signal, a battery low protection and a power fail signal. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a UPS function and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: PSC-160A, PSC-160B, PSC-160A-C, and PSC-160B-C. single output output: 160W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 70A leakage current: &lt;1mA overload protection: 105 to 150% withstand voltage  I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -20 to +70°C weight: 350g

Specifications

manufacturer
Manufacturer's name PSC-160B
GTIN 4711232760544
Output voltage [V] 27,6
Efficiency [%] 90
Output current range [A] 0...5,8 / 0...2
Output voltage tolerance: [%] 1
Output power [W] 160
Output voltage adjustment [V] 24...29
Ripple [mVp-p] 240
Data Sheet

Unit price

40,19 €

Volume discounts

Quantity Unit price
50 + 39,29 €

Stock: 55
Further delivery:
CW 05/2026
