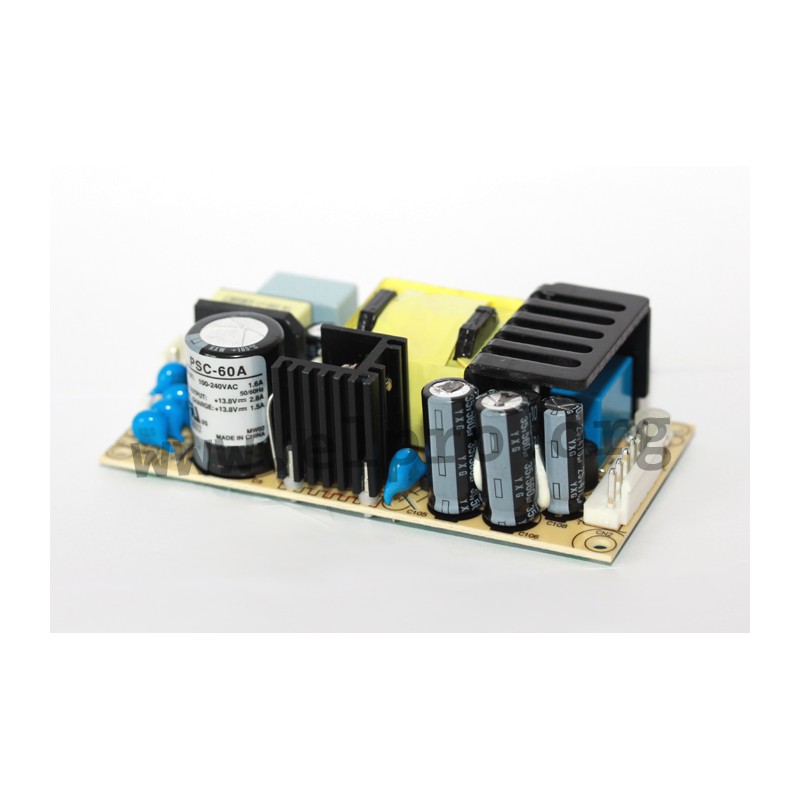

PSC-60B

Mean Well battery charger series PSC-60A

Open frame type switching power supplies with 60W, a battery charger, a battery low protection, a power fail signal, a universal input and a battery low signal. These devices have a UPS function and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fanless design and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: PSC-60A and PSC-60B.

  • single output
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input irush current: 60A
  • leakage current: <1mA
  • overload protection: 105 to 150%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 1500V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -20 to +70°C
  • weight: 130g

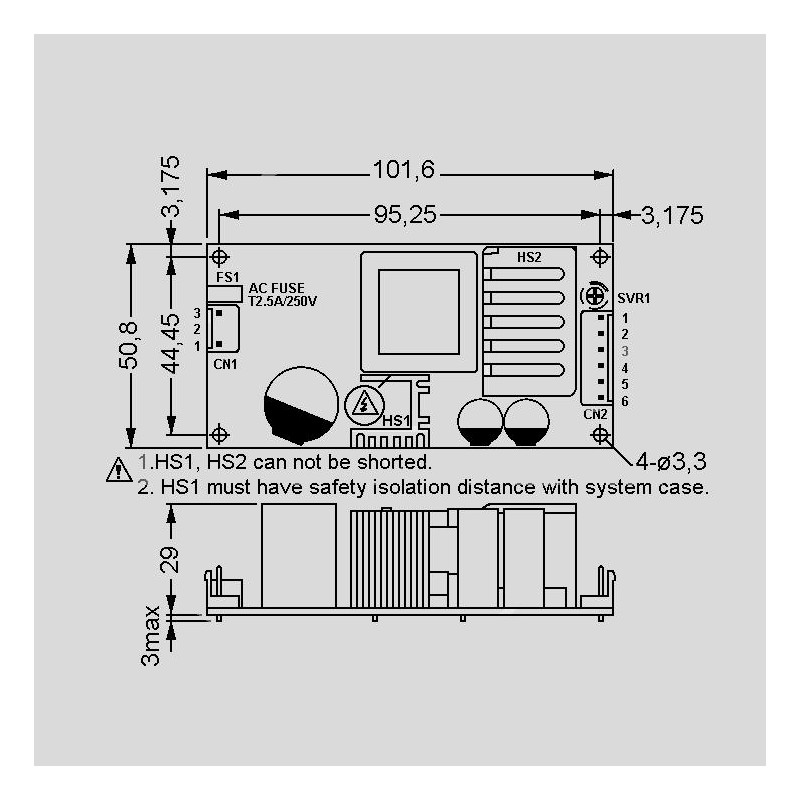

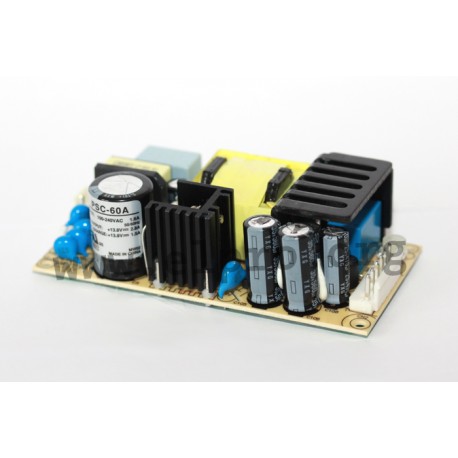

dimensions

PSC-60B

35574 PSC-60B PSC-60B 4711232760582 Mean Well battery charger series PSC-60A. Open frame type switching power supplies with 60W, a battery charger, a battery low protection, a power fail signal, a universal input and a battery low signal. These devices have a UPS function and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a fanless design and comply with&nbsp;UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series:&nbsp;PSC-60A and PSC-60B. single output input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input irush current: 60A leakage current: &lt;1mA overload protection: 105 to 150% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 1500V AC withstand voltage O/P-FG: 500V AC operating temperature: -20 to +70&deg;C weight: 130g

Specifications

manufacturer
Manufacturer's name PSC-60B
GTIN 4711232760582
Output voltage [V] 27,6/27,6
Phase 2 phase
Efficiency [%] 84
Output current range [A] 0...2,15/0...0,75
Output voltage tolerance: [%] 1
Output power [W] 59,34
Output voltage adjustment [V] 24,29
Ripple [mV] 240
Data Sheet

Unit price

19,79 €

Volume discounts

Quantity Unit price
50 + 18,39 €

Stock: 36
Further delivery:
CW 33/2024
