PSD-45A-05

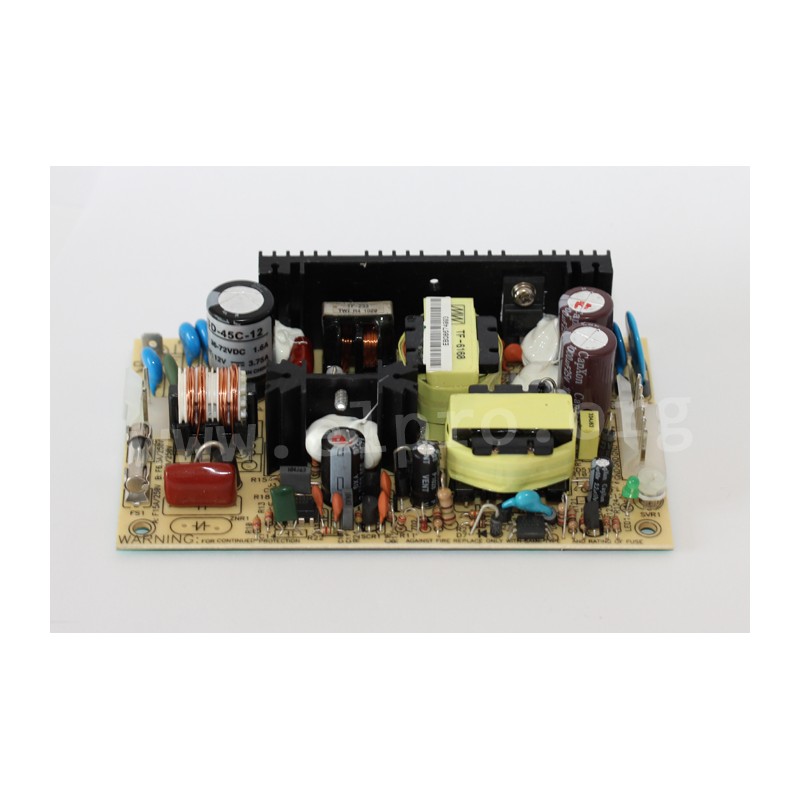

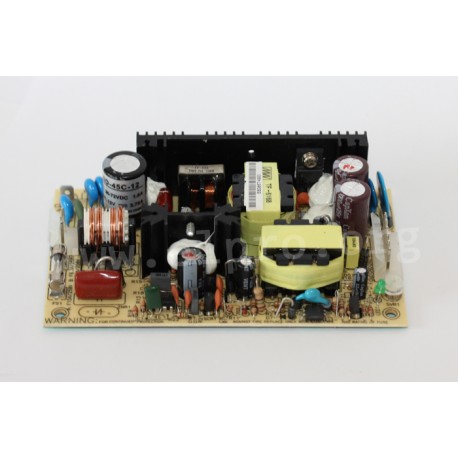

Mean Well DC/DC converter series PSD-45

Open frame type DC/DC converters with 45W, an input voltage ratio of 2:1, a regulated output voltage and a built-in EMI filter. These devices have a galvanic isolation of input/output and are protected against overload, voltage reversal, short circuit as well as overvoltage. They have a fanless design and comply with EN62368-1, EN55032 class B as well as EN55024. We offer the following types of this Mean Well series: PSD-45A-05, PSD-45A-12, PSD-45A-24, PSD-45B-05, PSD-45B-12, PSD-45B-24, PSD-45C-05, PSD-45C-12 and PSD-45C-24.

  • single output
  • output: 30 to 45W
  • overload protection: 105 to 160%
  • withstand voltage I/P-O/P: 1500V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -10 to +60°C
  • weight: 190g

PSD-45A-05

35694 PSD-45A-05 PSD-45A-05 Mean Well DC/DC converter series PSD-45. Open frame type DC/DC converters with 45W, an input voltage ratio of 2:1, a regulated output voltage and a built-in EMI filter. These devices have a galvanic isolation of input/output and are protected against overload, voltage reversal, short circuit as well as overvoltage. They have a fanless design and comply with EN62368-1, EN55032 class B as well as EN55024. We offer the following types of this Mean Well series: PSD-45A-05, PSD-45A-12, PSD-45A-24, PSD-45B-05, PSD-45B-12, PSD-45B-24, PSD-45C-05, PSD-45C-12 and PSD-45C-24. single output output: 30 to 45W overload protection: 105 to 160% withstand voltage I/P-O/P: 1500V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -10 to +60°C weight: 190g

Specifications

manufacturer
Manufacturer's name PSD-45A-05
Input voltage [V] 9,2...18
Output voltage [V] 5
Efficiency [%] 74
Output current range [A] 0...6
Output voltage tolerance: [%] ±2
Ripple [mV] 100
Data Sheet

Unit price

14,89 €

Volume discounts

Quantity Unit price
50 + 13,89 €

Stock: 2
Next incoming goods:
CW 28/2024
32 units


Further delivery:
CW 29/2024
