PWM-200-24DA2

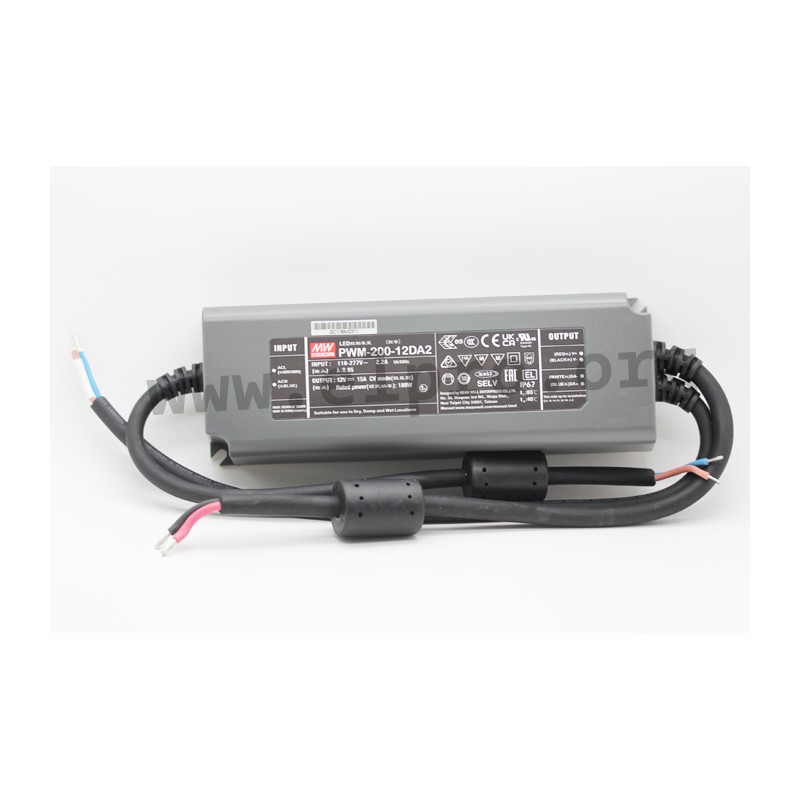

Mean Well LED driver series PWM-200

LED drivers in a plastic housing (IP67) with a DALI 2.0 interface, protection class II, a PWM output voltage and 200W. These devices are protected against short circuit, overtemperature, overload as well as overvoltage and comply with EN55015, UL8750, EN61347-1, EN61347-2-13, IEC61347-1 as well as IEC61347-2-13. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: PWM-200-12DA2, PWM-200-24DA2, PWM-200-36DA2 and PWM-200-48DA2.

  • single output
  • output: 180 to 200,1W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • input current: 1,1A
  • maximal input inrush current: 65A
  • leakage current: 0,75mA
  • no-load power: <0,5W
  • connection type: stranded wire
  • cable length: 30cm
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 1500V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +85°C
  • dimensions: 195x68x39,5mm
  • weight: 1030g
PWM-200-24DA2, Mean Well LED drivers, 200W, IP67, PWM output voltage, DALI 2.0 interface, PWM-200 series

PWM-200-24DA2

237647 PWM-200-24DA2 PWM-200-24DA2 4711287460154 Mean Well LED driver series PWM-200. LED drivers in a plastic housing (IP67) with a DALI 2.0 interface, protection class II, a PWM output voltage and 200W. These devices are protected against short circuit, overtemperature, overload as well as overvoltage and comply with EN55015, UL8750, EN61347-1, EN61347-2-13, IEC61347-1 as well as IEC61347-2-13. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: PWM-200-12DA2, PWM-200-24DA2, PWM-200-36DA2 and PWM-200-48DA2. single output output: 180 to 200,1W input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC input current: 1,1A maximal input inrush current: 65A leakage current: 0,75mA no-load power: &lt;0,5W connection type: stranded wire cable length: 30cm withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 1500V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +85°C dimensions: 195x68x39,5mm weight: 1030g

Specifications

manufacturer
Manufacturer's name PWM-200-24DA2
GTIN 4711287460154
Output voltage [V] 24
Efficiency [%] 93
Output current [A] 8,3
Output power [W] 199,2
Data Sheet

Unit price

48,09 €

Volume discounts

Quantity Unit price
50 + 46,49 €

Stock: 96
Next incoming goods:
CW 25/2024
204 units

Further delivery:
CW 34/2024
