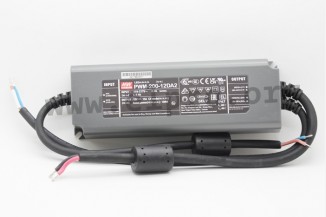

Mean Well LED driver series PWM-200

LED drivers in a plastic housing (IP67) with a DALI 2.0 interface, protection class II, a PWM output voltage and 200W. These devices are protected against short circuit, overtemperature, overload as well as overv...

Mean Well LED driver series PWM-200

LED drivers in a plastic housing (IP67) with a DALI 2.0 interface, protection class II, a PWM output voltage and 200W. These devices are protected against short circuit, overtemperature, overload as well as overvoltage and comply with EN55015, UL8750, EN61347-1, EN61347-2-13, IEC61347-1 as well as IEC61347-2-13. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: PWM-200-12DA2, PWM-200-24DA2, PWM-200-36DA2 and PWM-200-48DA2.

  • single output
  • output: 180 to 200,1W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • input current: 1,1A
  • maximal input inrush current: 65A
  • leakage current: 0,75mA
  • no-load power: <0,5W
  • connection type: stranded wire
  • cable length: 30cm
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 1500V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +85°C
  • dimensions: 195x68x39,5mm
  • weight: 1030g
> More
Data Sheet
Showing 1 - 4 of 4 products
  • Product Stock Unit price Volume discounts
  • Mean Well
    PWM-200-12DA2, Mean Well LED drivers, 200W, IP67, PWM output voltage, DALI 2.0 interface, PWM-200 series
    50,59 €
    237645 PWM-200-12DA2 PWM-200-12DA2
    50,59 €
    Quantity Unit price
    50 + 48,89 €

    More
    Stock: 16
  • Mean Well
    PWM-200-24DA2, Mean Well LED drivers, 200W, IP67, PWM output voltage, DALI 2.0 interface, PWM-200 series
    48,09 €
    237647 PWM-200-24DA2 PWM-200-24DA2
    48,09 €
    Quantity Unit price
    50 + 46,49 €

    More
    Stock: 107
  • Mean Well
    PWM-200-36DA2, Mean Well LED drivers, 200W, IP67, PWM output voltage, DALI 2.0 interface, PWM-200 series
    53,69 €
    237649 PWM-200-36DA2 PWM-200-36DA2
    53,69 €
    Quantity Unit price
    50 + 51,99 €

    More
    Stock: 11
  • Mean Well
    PWM-200-48DA2, Mean Well LED drivers, 200W, IP67, PWM output voltage, DALI 2.0 interface, PWM-200 series
    53,69 €
    237651 PWM-200-48DA2 PWM-200-48DA2
    53,69 €
    Quantity Unit price
    50 + 51,99 €

    More
    Stock: 2
Showing 1 - 4 of 4 products
