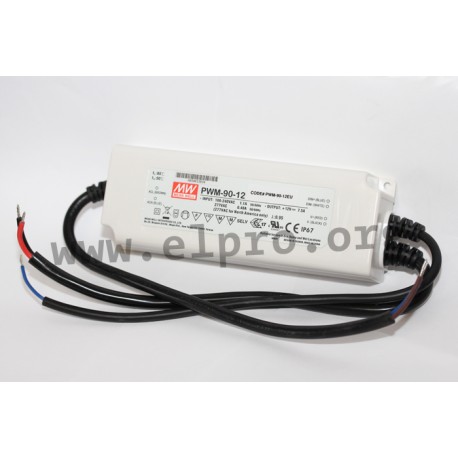

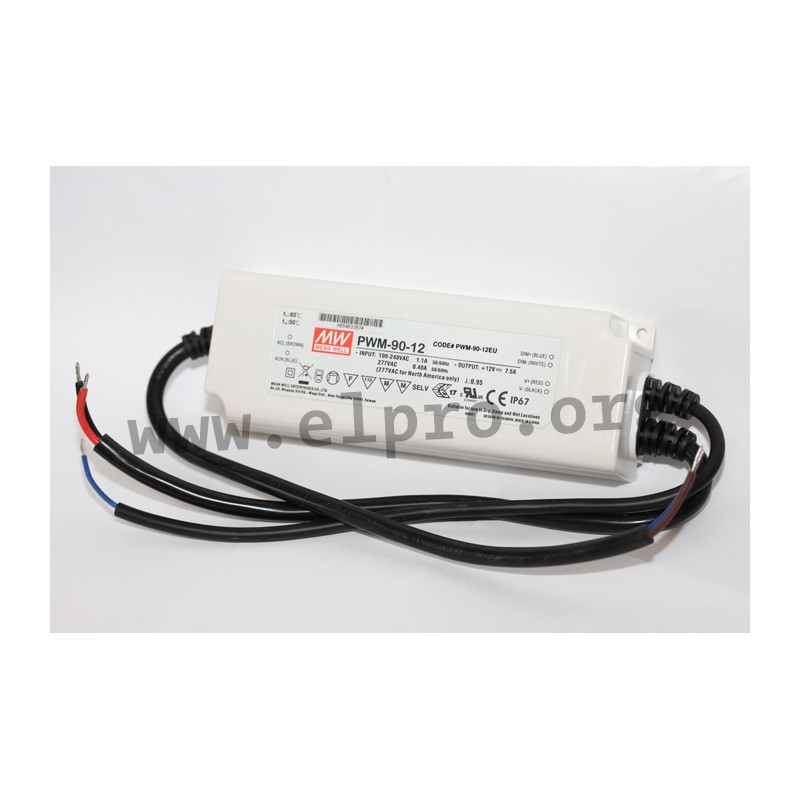

LED drivers in a plastic housing (IP67) with a PWM style output, 90W and a 3 in 1 dimming function (0 to 10V DC, 10V PWM, potentiometer). These devices are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit and comply with EN61347-1, EN61347-2-13 as well as EN55015. They are suitable for LED lighting applications and have a built-in active PFC function. We offer the following types of this Mean Well series: PWM-90-12, PWM-90-12EU, PWM-90-24, PWM-90-36 and PWM-90-48.
Discontinued items. Only remainder of stock available.
|Output voltage [V]||12|
|Output current [A]||7,5|
|Output power [W]||90|
|Output voltage tolerance: [%]||4|
