RCP-2000-12

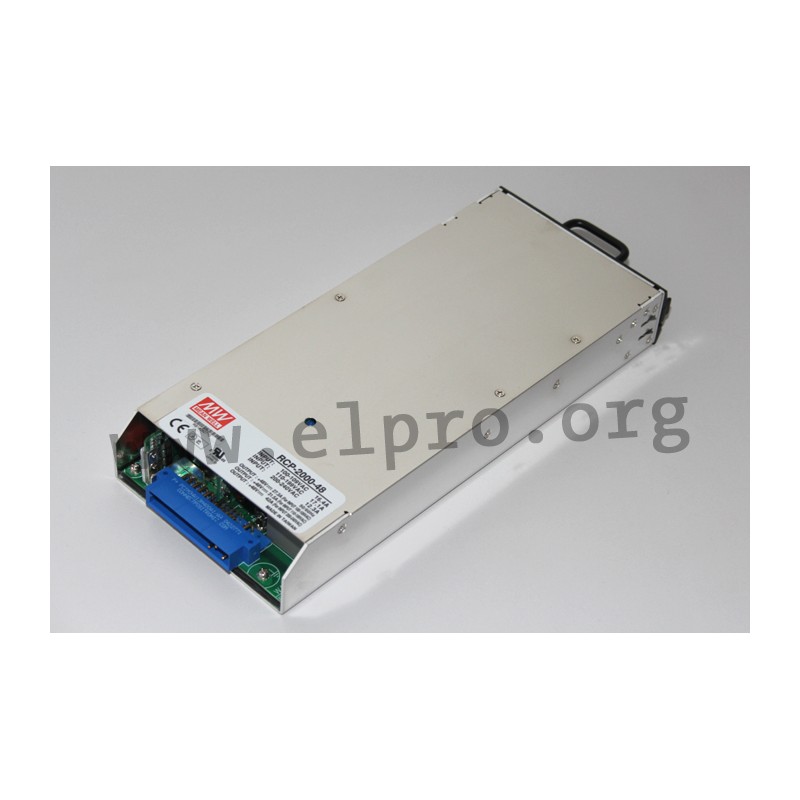

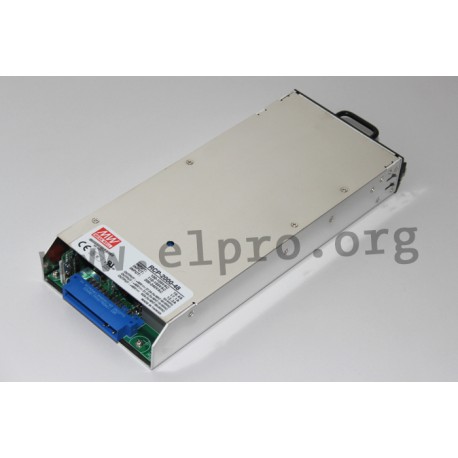

Mean Well power supply series RCP-2000

Switching power supplies in an enclosed housing with 2000W, a built-in remote ON/OFF control, an AC/DC OK signal, a built-in auxiliary power, a hot swap function, a fan, a built-in remote sense function, a universal input, a parallel function, a built-in ORing diode and a low profile (1U). These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for an active current sharing of up to 6000W (3 units) and comply with UL/EN60950-1, EN55032/EN55011 class B as well as EN55032/EN55011 class A. We offer the types RCP-2000-12, RCP-2000-24 and RCP-2000-48 of this Mean Well series as well as the matching 19" rack RKP-1UT and the matching control/monitor unit RKP-CMU1  as well as the control/monitor rack RKP-1UI-CMU1.

  • single output
  • output: 1200 to 2016W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 50A
  • leakage current: <1,1mA
  • output voltage adjustment: -12/+16%
  • overload protection: 105 to 125%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 700V AC
  • operating temperature: -40 to +70°C
  • weight: 2000g

RCP-2000-12

36259 RCP-2000-12 RCP-2000-12 4711232761053 Mean Well power supply series RCP-2000. Switching power supplies in an enclosed housing with 2000W, a built-in remote ON/OFF control, an AC/DC OK signal, a built-in auxiliary power, a hot swap function, a fan, a built-in remote sense function, a universal input, a parallel function, a built-in ORing diode and a low profile (1U). These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for an active current sharing of up to 6000W (3 units) and comply with UL/EN60950-1, EN55032/EN55011 class B as well as EN55032/EN55011 class A. We offer the types RCP-2000-12, RCP-2000-24 and RCP-2000-48 of this Mean Well series as well as the matching 19" rack RKP-1UT and the matching control/monitor unit RKP-CMU1  as well as the control/monitor rack RKP-1UI-CMU1. single output output: 1200 to 2016W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 50A leakage current: &lt;1,1mA output voltage adjustment: -12/+16% overload protection: 105 to 125% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 700V AC operating temperature: -40 to +70°C weight: 2000g

Specifications

manufacturer
Manufacturer's name RCP-2000-12
GTIN 4711232761053
Output voltage [V] 12
Phase 2 phase
Efficiency [%] 86
Output current range [A] 0...100
Output voltage tolerance: [%] 2
Output power [W] 1200
Ripple [mVp-p] 150
Data Sheet

Unit price

520,39 €

Volume discounts

Quantity Unit price
50 + 520,39 €

Stock: 6
Further delivery:
CW 29/2024
