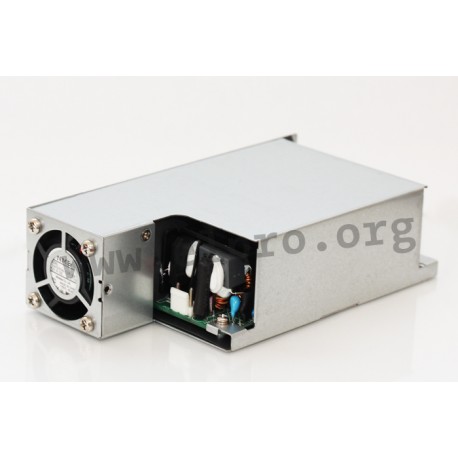

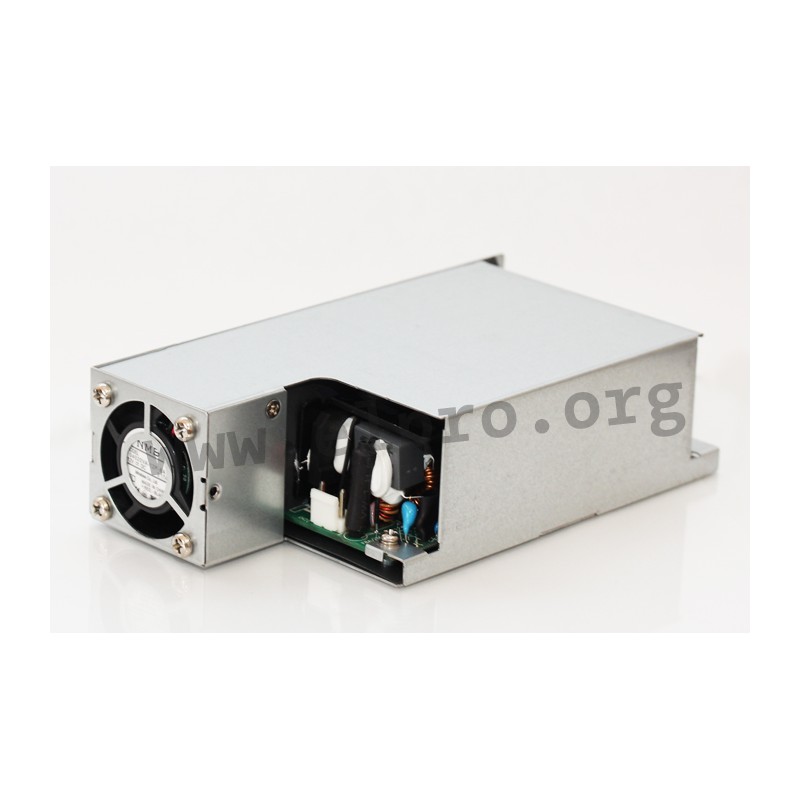

These supplies have an enclosed frame with fan on the side (SF), contact pin for nylon-crimp-terminals and a universal input. In addition to that, the devices have an output of 250 Watt with free air convection and 400 Watt with a fan. Furthermore, they possess an overload protection by pulsing hiccup shutdown (auto recovery) and protections against short circuit and overvoltage. They conform to EN60601-1 and have a fan voltage of 5V/0.6A. We are offering the following types by Meanwell: RPS-400-12-TF, RPS-400-15-TF, RPS-400-24-TF, RPS-400-27-TF, RPS-400-36-TF, RPS-400-48-TF, RPS-400-12-SF, RPS-400-15-SF, RPS-400-24-SF, RPS-400-27-SF, RPS-400-36-SF and RPS-400-48-SF.
• input voltage: 80 to 264V AC (47 to 63 Hz) 113 to 370V DC
• input inrush current, max.: 80A
• leakage current
• overload protection: 105 to 135%
• withstand voltage
I/P-O/P: 4000V AC
I/P-FG: 2000V AC
O/P-FG: 1500V AC
• operating temperature: -30 to +70°C
• weight: 640g
Discontinued items. Only remainder of stock available.
|output voltage [V]||48|
|output current range [A]||8,4|
|output power [W]||403,2|
|output voltage tolerance: [%]||1|
