PSAIG 15V 5A G3

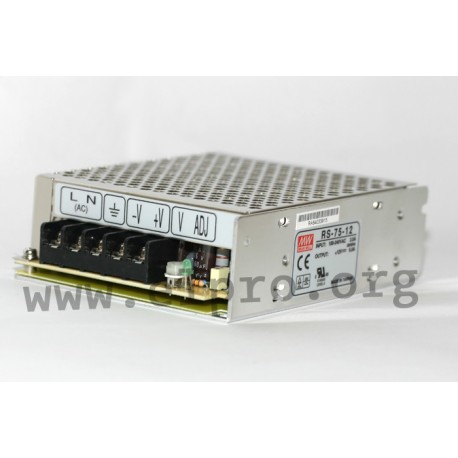

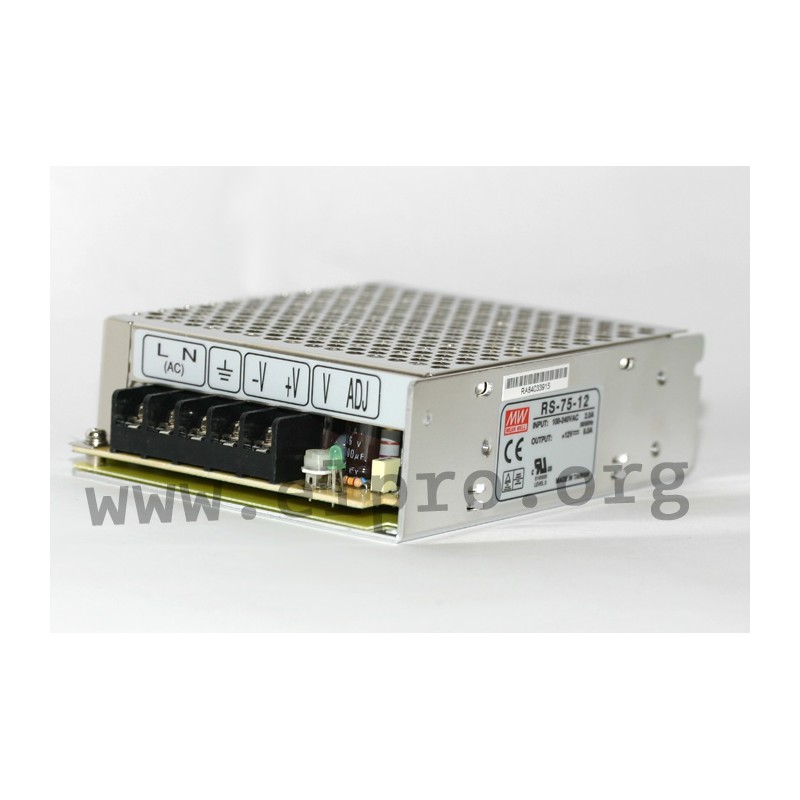

Mean Well power supply series RS-75

Switching power supplies in an enclosed housing with 75W, screw terminals and a universal input. These devices are using 105°C long life electrolytic capacitors and are protected against overload (auto recovery), short circuit as well as overvoltage. They have a low no-load power and comply with UL62368-1, EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: RS-75-3.3, RS-75-5, RS-75-12, RS-75-15, RS-75-24 and RS-75-48.

  • single output
  • output: 49,5 to 76,8W
  • input voltage: 88 to 264V AC (47 to 63Hz), 125 to 373V DC
  • maximal input inrush current: 40A
  • leakage current: <2mA
  • output voltage adjustment: +10/-5%
  • overload protection: 110 to 150%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -25 to +70°C
  • weight: 410g

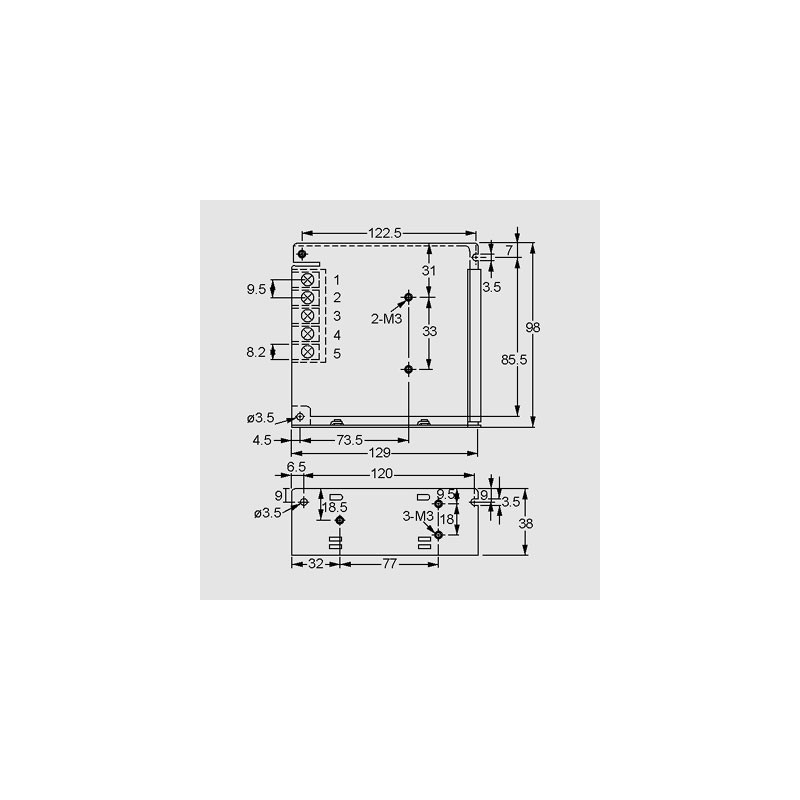

dimensions and terminal pin assignment

PSAIG 15V 5A G3

17953 PSAIG 15V 5A G3 RS-75-15 RS-75-15 Mean Well power supply series RS-75. Switching power supplies in an enclosed housing with 75W, screw terminals and a universal input. These devices are using 105°C long life electrolytic capacitors and are protected against overload (auto recovery), short circuit as well as overvoltage. They have a low no-load power and comply with UL62368-1, EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: RS-75-3.3, RS-75-5, RS-75-12, RS-75-15, RS-75-24 and RS-75-48. single output output: 49,5 to 76,8W input voltage: 88 to 264V AC (47 to 63Hz), 125 to 373V DC maximal input inrush current: 40A leakage current: &lt;2mA output voltage adjustment: +10/-5% overload protection: 110 to 150% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -25 to +70°C weight: 410g

Specifications

manufacturer
Manufacturer's name RS-75-15
Output voltage [V] 15
Phase 2 phase
Efficiency [%] 86
Output current range [A] 0...5
Output voltage tolerance: [%] 1
Output power [W] 75
Ripple [mVp-p] 120
Data Sheet

Unit price

13,59 €

Volume discounts

Quantity Unit price
50 + 12,79 €

Stock: 588
Further delivery:
CW 31/2024
