RSD-150B-5

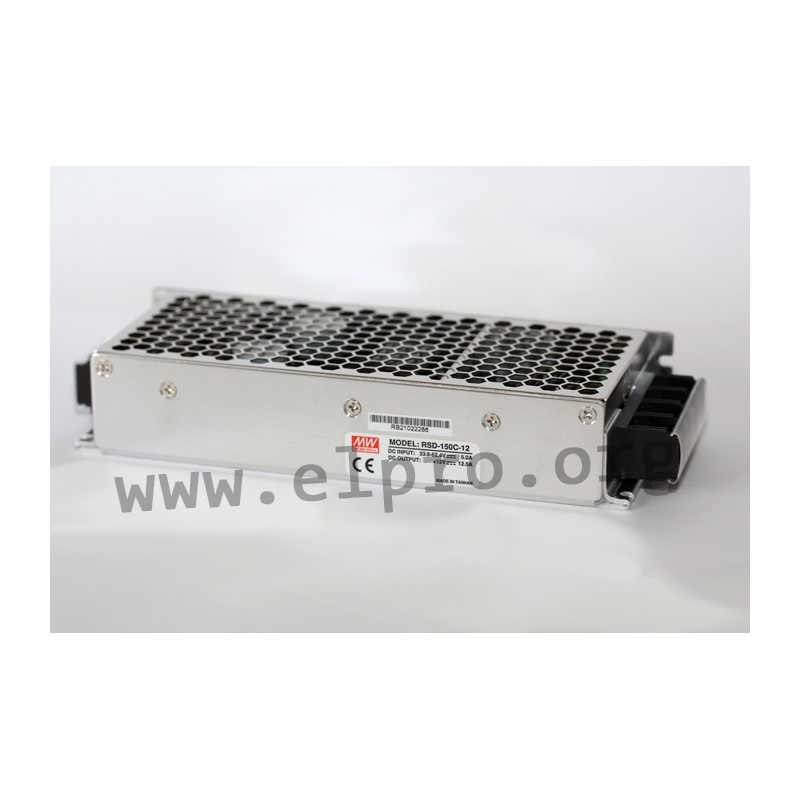

Mean Well DC/DC converter series RSD-150

DC/DC converters in an enclosed housing (1U/36mm) with 150W, a galvanic isolation of input/output, a regulated output voltage and an LED indicator for power on. These devices are suitable for rail industry applications and are protected against overload, short circuit, input voltage reversal, overtemperature as well as overvoltage. They have a built-in constant current limiting circuit and comply with EN50155, EN45545-2, EN55032 class A as well as EN55032 class B. We offer the following types of this Mean Well series: RSD-150B-5, RSD-150B-12, RSD-150B-24, RSD-150C-5, RSD-150C-12, RSD-150C-24, RSD-150D-5, RSD-150D-12 and RSD-150D-24.

  • single output
  • output: 150 to 151,2W
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 4000V DC
  • withstand voltage I/P-FG: 2500V DC
  • withstand voltage O/P-FG: 2500V DC
  • operating temperature: -40 to +55°C
  • weight: 800g

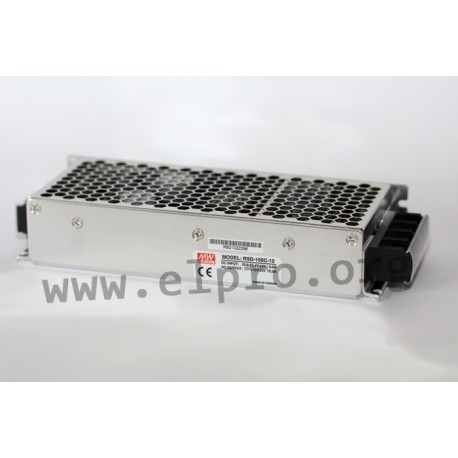

Meanwell RSD-150 series

RSD-150B-5

36240 RSD-150B-5 RSD-150B-5 4711287464473 Mean Well DC/DC converter series RSD-150. DC/DC converters in an enclosed housing (1U/36mm) with 150W, a galvanic isolation of input/output, a regulated output voltage and an LED indicator for power on. These devices are suitable for rail industry applications and are protected against overload, short circuit, input voltage reversal, overtemperature as well as overvoltage. They have a built-in constant current limiting circuit and comply with EN50155, EN45545-2, EN55032 class A as well as EN55032 class B. We offer the following types of this Mean Well series: RSD-150B-5, RSD-150B-12, RSD-150B-24, RSD-150C-5, RSD-150C-12, RSD-150C-24, RSD-150D-5, RSD-150D-12 and RSD-150D-24. single output output: 150 to 151,2W overload protection: 105 to 135% withstand voltage I/P-O/P: 4000V DC withstand voltage I/P-FG: 2500V DC withstand voltage O/P-FG: 2500V DC operating temperature: -40 to +55°C weight: 800g

Specifications

manufacturer
Manufacturer's name RSD-150B-5
GTIN 4711287464473
Input voltage [V] 16,8...31,2
Output voltage [V] 5
Efficiency [%] 89
Output current range [A] 0...30
Ripple [mVp-p] 100
Data Sheet

Unit price

83,29 €

Volume discounts

Quantity Unit price
50 + 80,49 €

Stock: 0
Next incoming goods:
CW 20/2024
24 units

Further delivery:
CW 34/2024
