RSD-150B-12

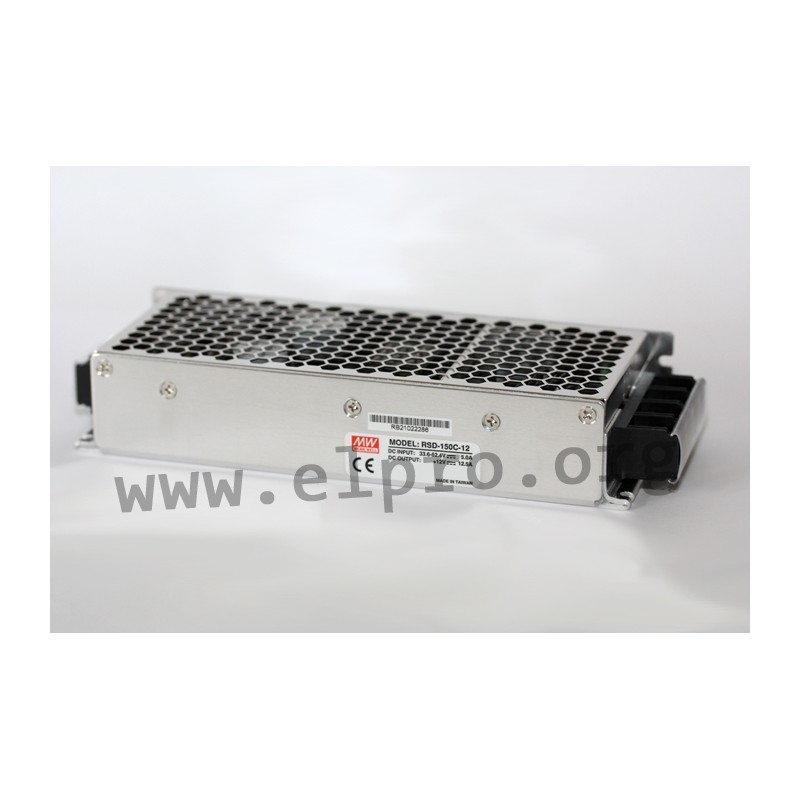

Mean Well DC/DC converter series RSD-150

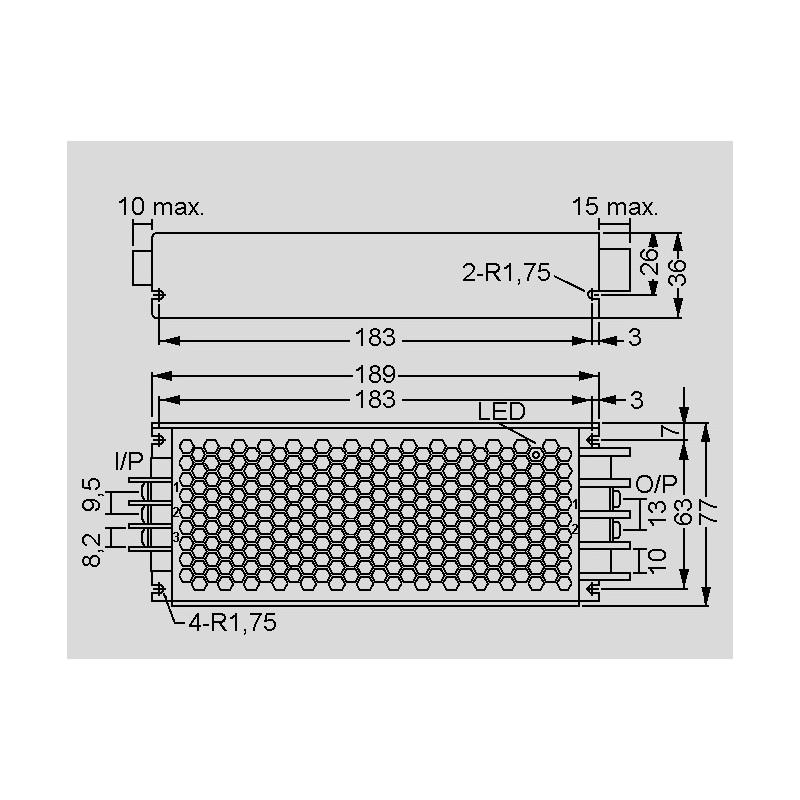

DC/DC converters in an enclosed housing (1U/36mm) with 150W, a galvanic isolation of input/output, a regulated output voltage and an LED indicator for power on. These devices are suitable for rail industry applications and are protected against overload, short circuit, input voltage reversal, overtemperature as well as overvoltage. They have a built-in constant current limiting circuit and comply with EN50155, EN45545-2, EN55032 class A as well as EN55032 class B. We offer the following types of this Mean Well series: RSD-150B-5, RSD-150B-12, RSD-150B-24, RSD-150C-5, RSD-150C-12, RSD-150C-24, RSD-150D-5, RSD-150D-12 and RSD-150D-24.

  • single output
  • output: 150 to 151,2W
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 4000V DC
  • withstand voltage I/P-FG: 2500V DC
  • withstand voltage O/P-FG: 2500V DC
  • operating temperature: -40 to +55°C
  • weight: 800g

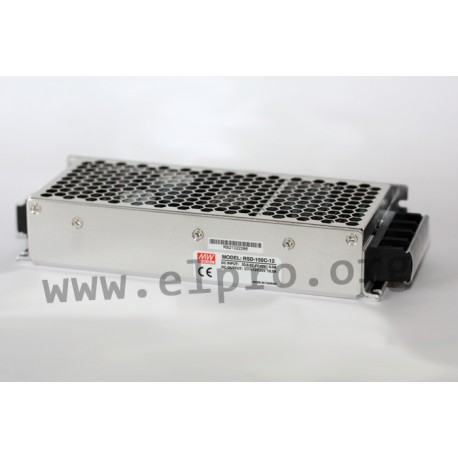

Meanwell RSD-150 series

RSD-150B-12

36241 RSD-150B-12 RSD-150B-12 4711287464480 Mean Well DC/DC converter series RSD-150. DC/DC converters in an enclosed housing (1U/36mm) with 150W, a galvanic isolation of input/output, a regulated output voltage and an LED indicator for power on. These devices are suitable for rail industry applications and are protected against overload, short circuit, input voltage reversal, overtemperature as well as overvoltage. They have a built-in constant current limiting circuit and comply with EN50155, EN45545-2, EN55032 class A as well as EN55032 class B. We offer the following types of this Mean Well series: RSD-150B-5, RSD-150B-12, RSD-150B-24, RSD-150C-5, RSD-150C-12, RSD-150C-24, RSD-150D-5, RSD-150D-12 and RSD-150D-24. single output output: 150 to 151,2W overload protection: 105 to 135% withstand voltage I/P-O/P: 4000V DC withstand voltage I/P-FG: 2500V DC withstand voltage O/P-FG: 2500V DC operating temperature: -40 to +55°C weight: 800g

Specifications

manufacturer
Manufacturer's name RSD-150B-12
GTIN 4711287464480
Input voltage [V] 16,8...31,2
Output voltage [V] 12
Efficiency [%] 90
Output current range [A] 0...12,5
Ripple [mVp-p] 120
Data Sheet

Unit price

78,59 €

Volume discounts

Quantity Unit price
50 + 75,99 €

Stock: 57
Further delivery:
CW 34/2024
