RSD-60G-5

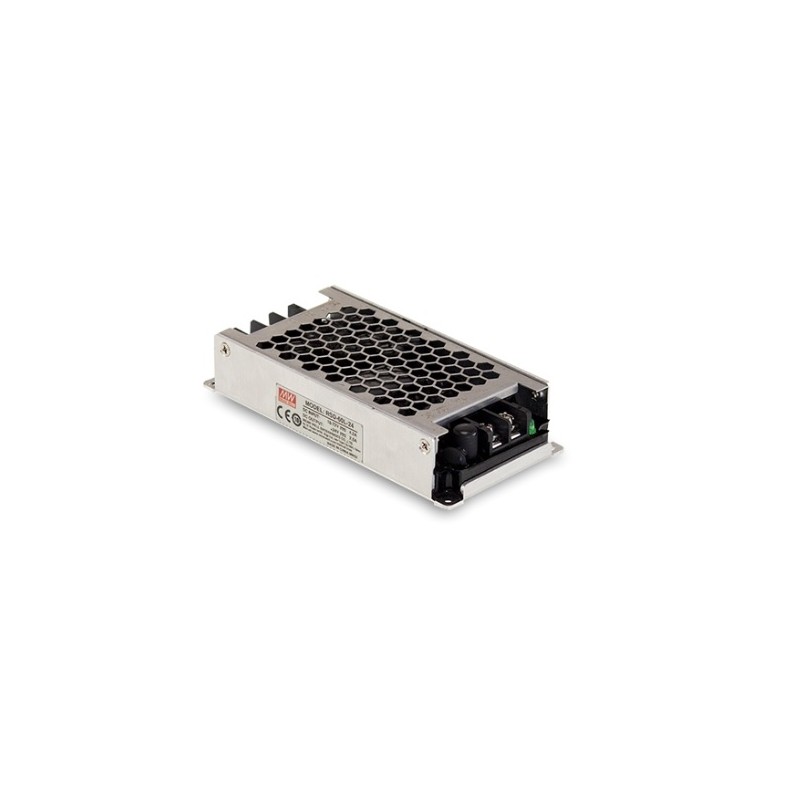

Mean Well DC/DC converter series RSD-60

DC/DC converters in an enclosed housing with 60W, screw terminals, an input voltage ratio of 4:1, a low profile (1U/25mm) and an LED indicator for power on. These devices require no minimum load and are protected against overload, overvoltage, input voltage reversal as well as short circuit. They have a built-in constant current limiting circuit, have a fanless design, are suitable for rail industry applications and comply with EN50155, EN45545-2, UL62368-1 as well as EN55032 class A. We offer the following types of this Mean Well series: RSD-60G-3.3, RSD-60G-5, RSD-60G-12, RSD-60G-24, RSD-60L-3.3, RSD-60L-5, RSD-60L-12, RSD-60L-24, RSD-60H-3.3, RSD-60H-5, RSD-60H-12 and RSD-60H-24.

  • single output
  • output: 39,6 to 60W
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 4000V DC
  • withstand voltage I/P-FG: 2500V DC
  • withstand voltage O/P-FG: 2500V DC
  • operating temperature: -40 to +70°C
  • weight: 290g
Meanwell RSD-60_ series

RSD-60G-5

110558 RSD-60G-5 RSD-60G-5 4711287464268 Mean Well DC/DC converter series RSD-60. DC/DC converters in an enclosed housing with 60W, screw terminals, an input voltage ratio of 4:1, a low profile (1U/25mm) and an LED indicator for power on. These devices require no minimum load and are protected against overload, overvoltage, input voltage reversal as well as short circuit. They have a built-in constant current limiting circuit, have a fanless design, are suitable for rail industry applications and comply with EN50155, EN45545-2, UL62368-1 as well as EN55032 class A. We offer the following types of this Mean Well series: RSD-60G-3.3, RSD-60G-5, RSD-60G-12, RSD-60G-24, RSD-60L-3.3, RSD-60L-5, RSD-60L-12, RSD-60L-24, RSD-60H-3.3, RSD-60H-5, RSD-60H-12 and RSD-60H-24. single output output: 39,6 to 60W overload protection: 105 to 135% withstand voltage I/P-O/P: 4000V DC withstand voltage I/P-FG: 2500V DC withstand voltage O/P-FG: 2500V DC operating temperature: -40 to +70°C weight: 290g

Specifications

manufacturer
Manufacturer's name RSD-60G-5
GTIN 4711287464268
Input voltage [V] 9...36
Output voltage [V] 5
Efficiency [%] 88
Output current range [A] 0...12
Output voltage tolerance: [%] 2
Output power [W] 60
Ripple [mVp-p] 100
Data Sheet

Unit price

33,59 €

Volume discounts

Quantity Unit price
50 + 31,49 €

Stock: 142
Further delivery:
CW 34/2024
