RSP-200-3.3

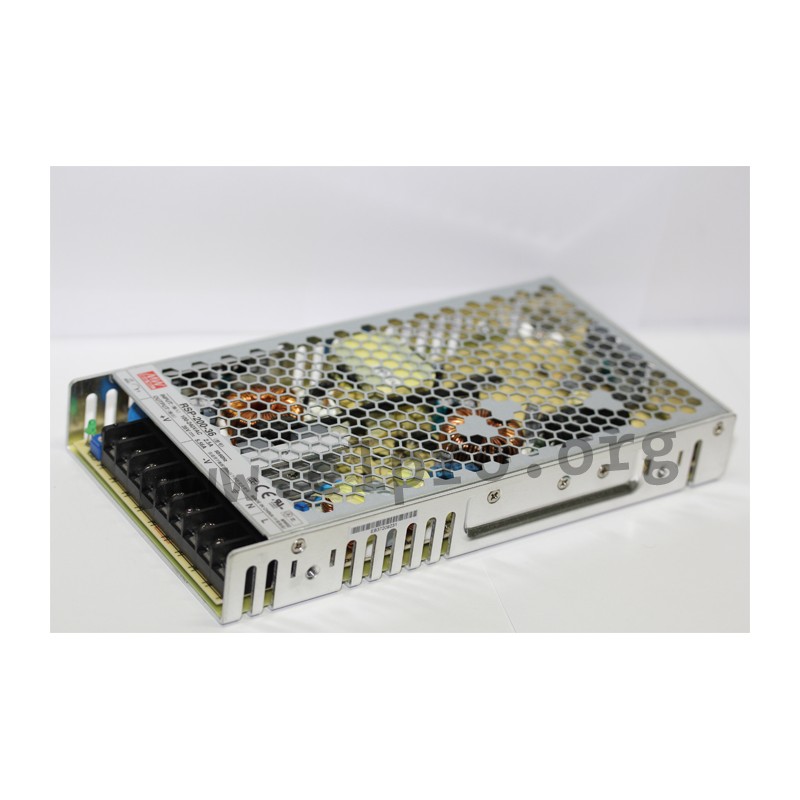

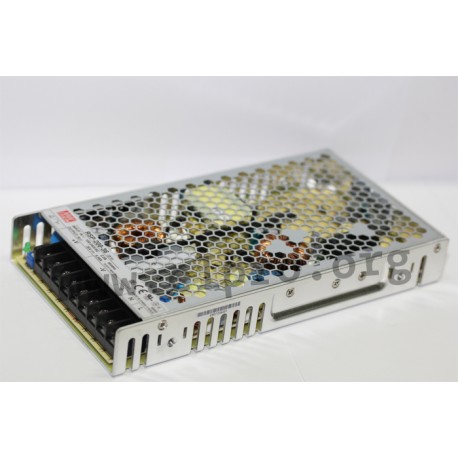

Mean Well power supply series RSP-200

Switching power supplies in an enclosed housing with 200W, a universal input, screw terminals and a low profile (1U). These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for control cabinet (19") mounting and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: RSP-200-2.5, RSP-200-3.3, RSP-200-4, RSP-200-5, RSP-200-7.5, RSP-200-12, RSP-200-13.5, RSP-200-15, RSP-200-24, RSP-200-27, RSP-200-36 and RSP-200-48.

  • single output
  • output: 100 to 202,5W
  • input voltage: 88 to 264V AC (47 to 63Hz), 124 to 370V DC
  • maximal input inrush current: 45A
  • leakage current: <1mA
  • output voltage adjustment: ±10%
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • weight: 720g

RSP-200-3.3

41465 RSP-200-3.3 RSP-200-3.3 4711287435916 Mean Well power supply series RSP-200. Switching power supplies in an enclosed housing with 200W, a universal input, screw terminals and a low profile (1U). These devices have a&nbsp;built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are&nbsp;suitable for control cabinet (19") mounting and comply with&nbsp;UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series:&nbsp;RSP-200-2.5, RSP-200-3.3, RSP-200-4, RSP-200-5, RSP-200-7.5, RSP-200-12, RSP-200-13.5, RSP-200-15, RSP-200-24, RSP-200-27, RSP-200-36 and RSP-200-48. single output output: 100 to 202,5W input voltage: 88 to 264V AC (47 to 63Hz), 124 to 370V DC maximal input inrush current: 45A leakage current: &lt;1mA output voltage adjustment:&nbsp;&plusmn;10% overload protection: 105 to 135% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -30 to +70&deg;C weight: 720g

Specifications

manufacturer
Manufacturer's name RSP-200-3.3
GTIN 4711287435916
Phase 2 phase
Efficiency [%] 81,5
Output current range [A] 0...40
Output voltage tolerance: [%] 2
Output power [W] 132
Ripple [mVp-p] 100
Data Sheet

Unit price

35,39 €

Volume discounts

Quantity Unit price
50 + 34,29 €

Stock: 6
Next incoming goods:
CW 25/2024
105 units


Further delivery:
CW 29/2024
