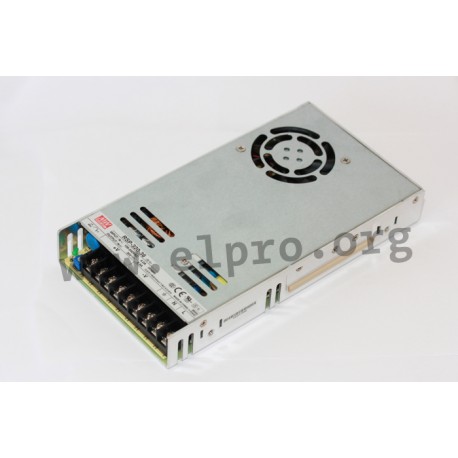

RSP-320-13.5

Mean Well power supply series RSP-300

Switching power supplies in an enclosed case with 320W, a built-in fan, screw terminals, a low profile and a universal input. These devices have a built-in active PFC funciton and are protected against short circuit, overload (auto recovery) as well as overvoltage. They are suitable for control cabinets due to their compact size (1U). We offer the following types of this Mean Well series: RSP-320-2.5, RSP-320-3.3, RSP-320-4, RSP-320-5, RSP-320-7.5, RSP-320-12, RSP-320-13.5, RSP-320-15, RSP-320-24, RSP-320-27, RSP-320-36 and RSP-320-48.

  • single output
  • output: 150 to 321,6W
  • input voltage: 88 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 40A
  • maximal leakage current: 1mA
  • output voltage adjustment: ±10%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • weight: 900g

RSP-320-13.5

39099 RSP-320-13.5 RSP-320-13.5 Mean Well power supply series RSP-300. Switching power supplies in an enclosed case with 320W, a built-in fan, screw terminals, a low profile and a universal input. These devices have a built-in active PFC funciton and are protected against short circuit, overload (auto recovery) as well as overvoltage. They are suitable for control cabinets due to their compact size (1U). We offer the following types of this Mean Well series: RSP-320-2.5, RSP-320-3.3, RSP-320-4, RSP-320-5, RSP-320-7.5, RSP-320-12, RSP-320-13.5, RSP-320-15, RSP-320-24, RSP-320-27, RSP-320-36 and RSP-320-48. single output output: 150 to 321,6W input voltage: 88 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 40A maximal leakage current: 1mA output voltage adjustment: ±10% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -30 to +70°C weight: 900g

Data sheet

manufacturer
manufacturer's name RSP-320-13.5
output voltage [V] 13,5
phase 2 phase
efficiency [%] 88
output current range [A] 0...23,8
output power [W] 321,3
output voltage tolerance: [%] 1
ripple [mVp-p] 150

Download

Data Sheet

43,59 €

Volume discounts

15 pcs. / 42,89 €

stock: 49
