RT-65D

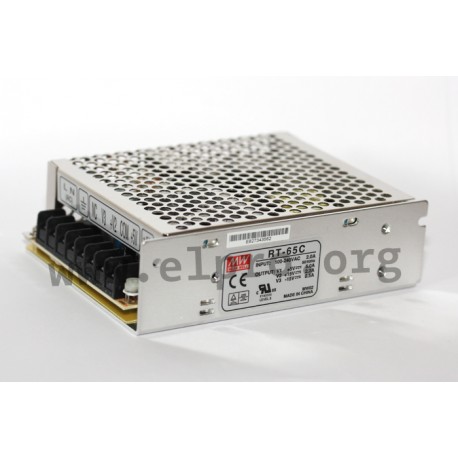

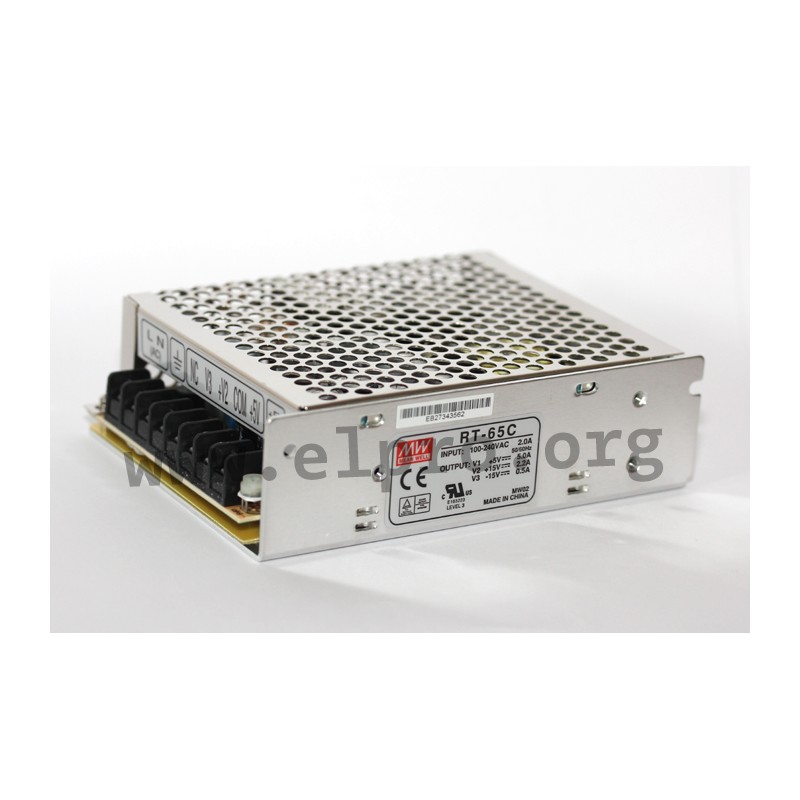

Mean Well power supply series RT-65

Switching power supplies in an enclosed housing with 65W, a triple output, a universal input and screw terminals. These devices are using 105°C long life electrolytic capacitors and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a high reliability and comply with UL62368-1, EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: RT-65A, RT-65B, RT-65C and RT-65D.

  • triple output
  • output: 64,6 to 68W
  • input voltage: 88 to 264V AC (47 to 63Hz), 125 to 373V DC
  • maximal input inrush current: 40A
  • leakage current: <2mA
  • output voltage adjustment (CH1): 4,75 to 5,5V
  • overload protection: 110 to 150%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -25 to +70°C
  • weight: 440g
RT-65D

RT-65D

37722 RT-65D RT-65D 4711287434285 Mean Well power supply series RT-65. Switching power supplies in an enclosed housing with 65W, a triple output, a universal input and screw terminals. These devices are using 105°C long life electrolytic capacitors and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a high reliability and comply with UL62368-1, EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: RT-65A, RT-65B, RT-65C and RT-65D. triple output output: 64,6 to 68W input voltage: 88 to 264V AC (47 to 63Hz), 125 to 373V DC maximal input inrush current: 40A leakage current: &lt;2mA output voltage adjustment (CH1): 4,75 to 5,5V overload protection: 110 to 150% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -25 to +70°C weight: 440g

Specifications

manufacturer
Manufacturer's name RT-65D
GTIN 4711287434285
Output voltage [V] 5/24/12
Phase 2 phase
Efficiency [%] 79
Output current range [A] 0,5...8/0,2....
Output voltage tolerance: [%] 2/+4 -6/6
Output power [W] 68
Ripple [mVp-p] 80/150/120
Data Sheet

Unit price

16,99 €

Volume discounts

Quantity Unit price
50 + 15,79 €

Stock: 164
Next incoming goods:
CW 07/2026
100 units

Further delivery:
CW 12/2026
