PSAIG 12V 2,1A

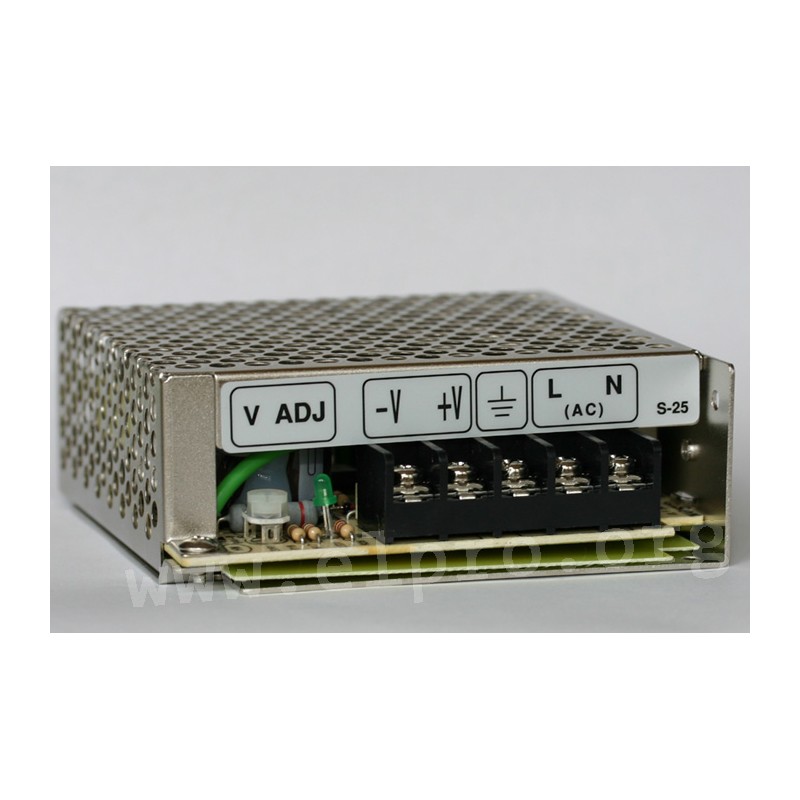

Mean Well power supply series S-25

Switching power supplies in an enclosed housing with 25W, screw terminals and a universal input. These devices have a fanless design and are protected against overload, short circuit as well as overvoltage. They have a fixed switching frequency at 56kHz and comply with UL1012, EN60950-1, EN55022 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: S-25-12 and S-25-15.

  • single output
  • output: 25,2 to 25,5W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 25A
  • leakage current: <0,75mA
  • output voltage adjustment: ±10%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 1500V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -10 to +60°C
  • weight: 390g

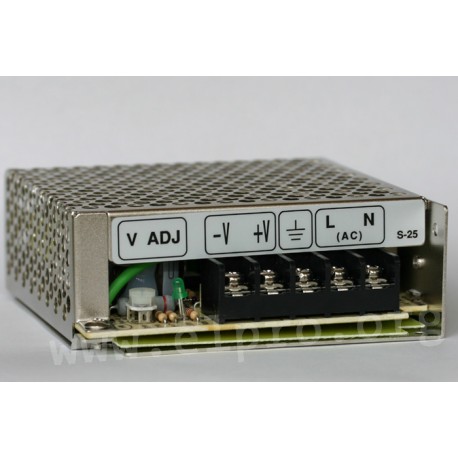

Meanwell S-25 series

PSAIG 12V 2,1A

17925 PSAIG 12V 2,1A S-25-12 S-25-12 Mean Well power supply series S-25. Switching power supplies in an enclosed housing with 25W, screw terminals and a universal input. These devices have a fanless design and are protected against overload, short circuit as well as overvoltage. They have a fixed switching frequency at 56kHz and comply with UL1012, EN60950-1, EN55022 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: S-25-12 and S-25-15. single output output: 25,2 to 25,5W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 25A leakage current: &lt;0,75mA output voltage adjustment: ±10% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 1500V AC withstand voltage O/P-FG: 500V AC operating temperature: -10 to +60°C weight: 390g

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name S-25-12
Output voltage [V] 12
Phase 2 phase
Efficiency [%] 76
Output current range [A] 0...2,1
Output voltage tolerance: [%] 1
Output power [W] 25,2
Ripple [mVp-p] 100
Data Sheet

Unit price

17,49 €

Stock: 18
