DCW05A-5

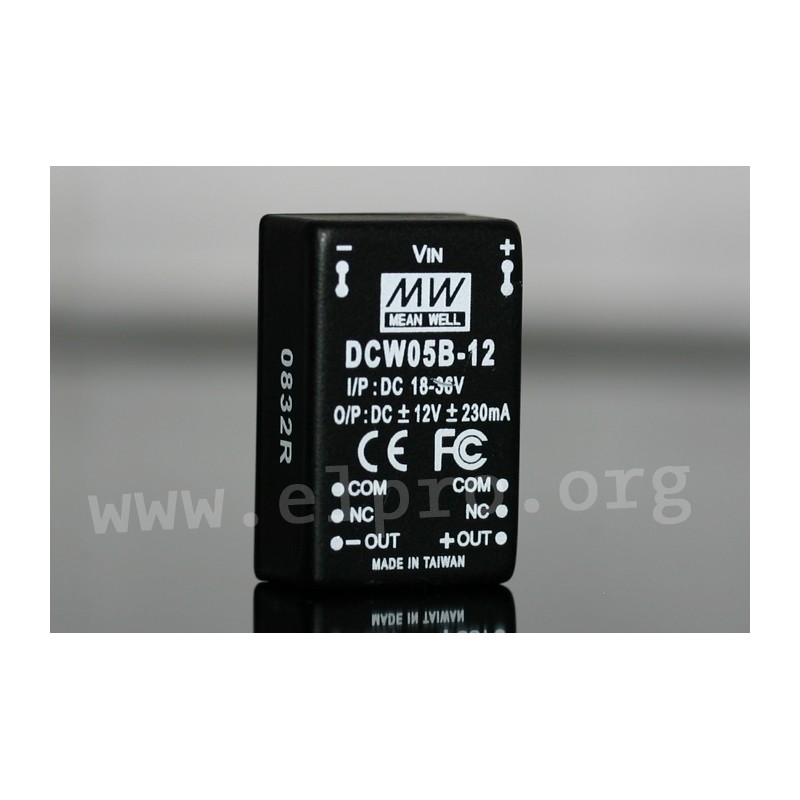

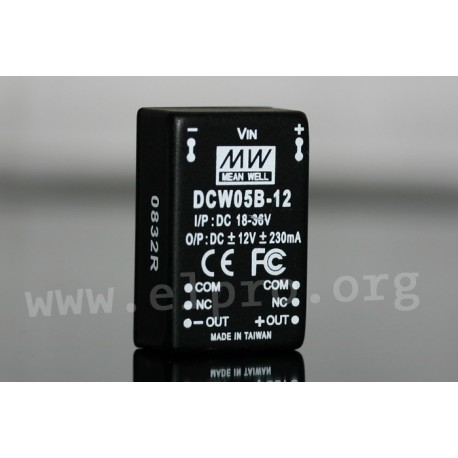

Mean Well DC/DC converter series SCW05 and DCW05

Regulated DC/DC converters in a DIL24 metal housing with 5W, a built-in EMI filter and an input voltage ratio of 2:1. These devices are suitable for PCB mounting and are protected against overload as well as short circuit. They have a high reliability and comply with EN55032 class B. We offer the types SCW05C-12 and DCW05A-12 of this Mean Well series.

  • single (SCW_) or dual output (DCW_)
  • output: 5W
  • maximal ripple and noise: 50mVpp
  • withstand voltage: 1000V DC
  • operating temperature: -40 to +71°C
  • weight: 15g
Meanwell DCW05 series

DCW05A-5

32288 DCW05A-5 DCW05A-05 DCW05A-05 Mean Well DC/DC converter series SCW05 and DCW05. Regulated DC/DC converters in a DIL24 metal housing with 5W, a built-in EMI filter and an input voltage ratio of 2:1. These devices are suitable for PCB mounting and are protected against overload as well as short circuit. They have a high reliability and comply with EN55032 class B. We offer the types SCW05C-12 and DCW05A-12 of this Mean Well series. single (SCW_) or dual output (DCW_) output: 5W maximal ripple and noise: 50mVpp withstand voltage: 1000V DC operating temperature: -40 to +71°C weight: 15g

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name DCW05A-05
Case DIL 24 case
Input [V DC] 9...18
Output [V] 5
Output [mA] 50...500
Efficiency [%] 75
Output2 [mA] -100...-500
Ripple [mV] 50
Output2 [V] -5
Data Sheet

Unit price

8,69 €

Stock: 13
