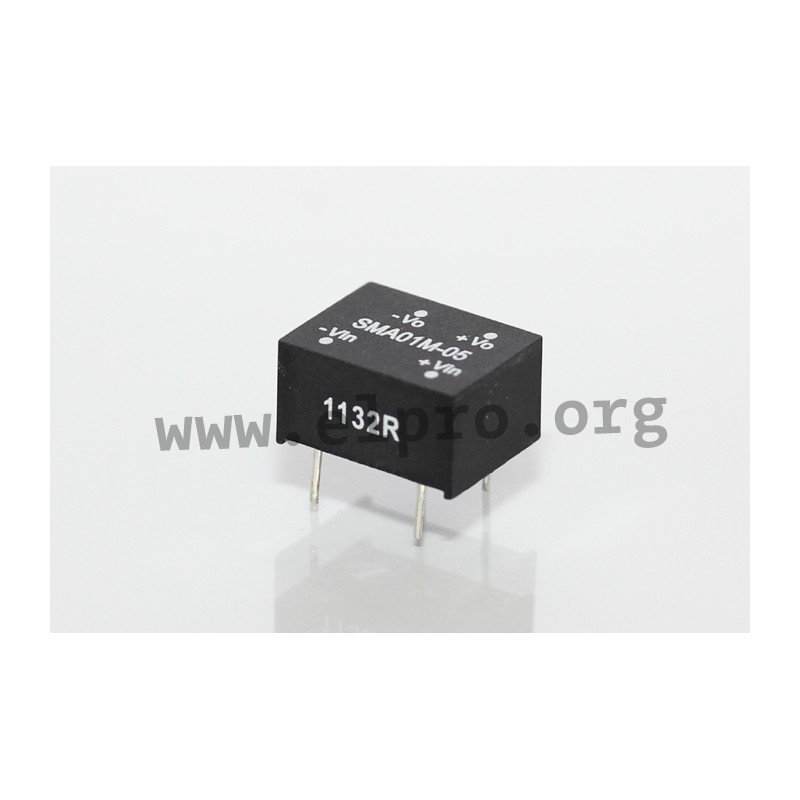

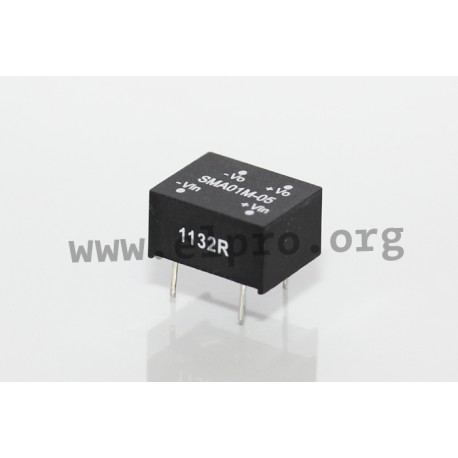

SMA01M-12

Mean Well DC/DC converter series SMA01

Unregulated DC/DC converters in a DIL8 housing with 1W and a built-in EMC filter. These devices are suitable for PCB mounting and are galvanically isolated between input and output. They have a fanless design and a high reliability. We offer the following types of this Mean Well series: SMA01L-05, SMA01L-09, SMA01L-12, SMA01L-15, SMA01M-05, SMA01M-09, SMA01M-12, SMA01M-15, SMA01N-05, SMA01N-09, SMA01N-12 and SMA01N-15.

  • single output
  • output: 1W
  • output voltage tolerance: ±2%
  • maximal ripple and noise: 100mVpp
  • withstand voltage: 1500V DC
  • operating temperature: -40 to +90°C
  • weight: 1,7g
Meanwell SMA series

SMA01M-12

35751 SMA01M-12 SMA01M-12 4711287477756 Mean Well DC/DC converter series SMA01. Unregulated DC/DC converters in a DIL8 housing with 1W and a built-in EMC filter. These devices are suitable for PCB mounting and are galvanically isolated between input and output. They have a fanless design and a high reliability. We offer the following types of this Mean Well series: SMA01L-05, SMA01L-09, SMA01L-12, SMA01L-15, SMA01M-05, SMA01M-09, SMA01M-12, SMA01M-15, SMA01N-05, SMA01N-09, SMA01N-12 and SMA01N-15. single output output: 1W output voltage tolerance: ±2% maximal ripple and noise: 100mVpp withstand voltage: 1500V DC operating temperature: -40 to +90°C weight: 1,7g

Specifications

manufacturer
Manufacturer's name SMA01M-12
GTIN 4711287477756

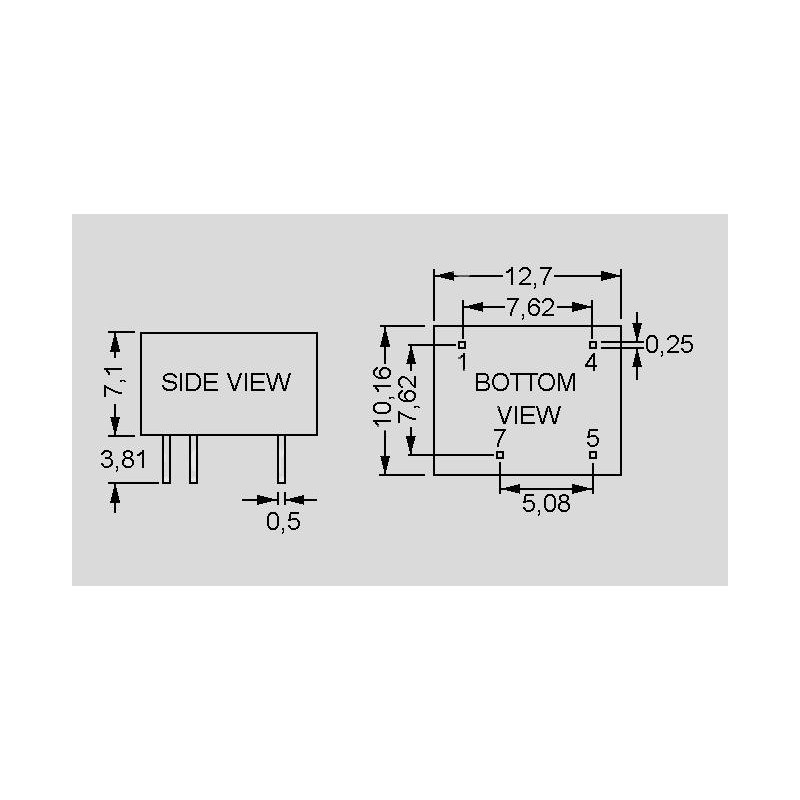

Case DIL 8 case
Input [V DC] 12
Output [V] 12
Output [mA] 0...84
Efficiency [%] 80
Data Sheet

Unit price

4,59 €

Volume discounts

Quantity Unit price
50 + 4,09 €

Stock: 15
Further delivery:
CW 42/2024
