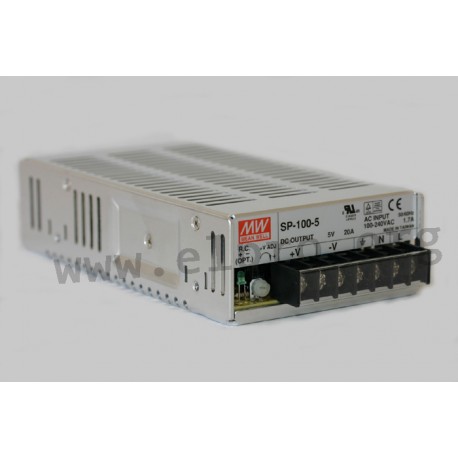

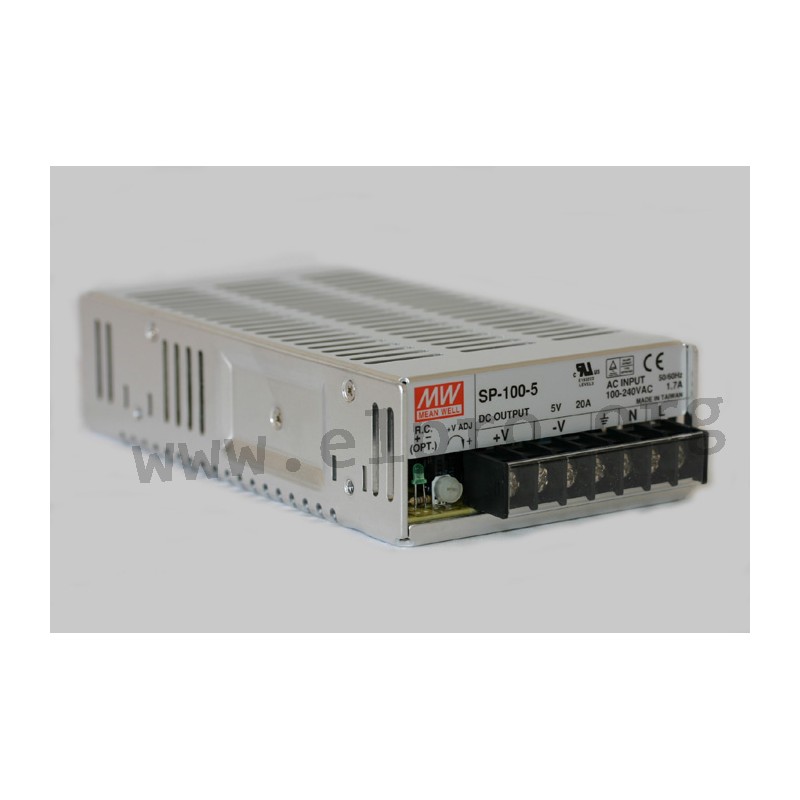

PSAIGP 15V 6,7A

Mean Well power supply series SP-100

Switching power supplies in an enclosed housing with 100W, a universal input and screw terminals. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They comply with UL/EN60950-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: SP-100-12 and SP-100-15.

  • single output
  • output: 100,5 to 102W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 35A
  • leakage current: <2mA
  • output voltage adjustment: +10/-5%
  • overload protection: 105 to 150%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 1500V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -10 to +60°C
  • weight: 660g

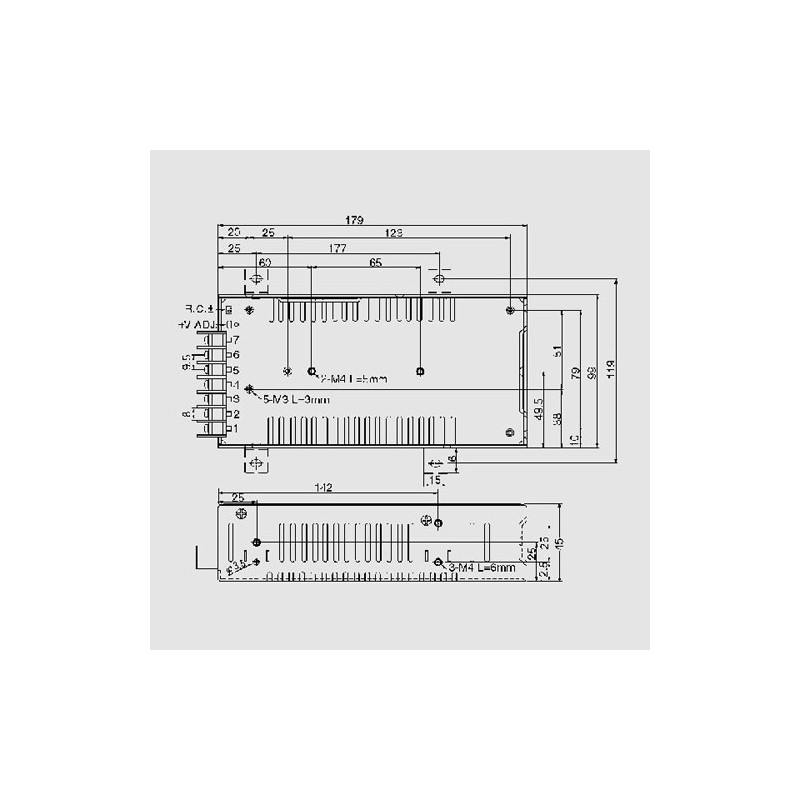

dimensions

PSAIGP 15V 6,7A

18057 PSAIGP 15V 6,7A SP-100-15 SP-100-15 Mean Well power supply series SP-100. Switching power supplies in an&nbsp;enclosed housing with 100W, a universal input and&nbsp;screw terminals. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They comply with&nbsp;UL/EN60950-1,&nbsp;EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series:&nbsp;SP-100-12 and SP-100-15. single output output: 100,5 to 102W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 35A leakage current: &lt;2mA output voltage adjustment: +10/-5% overload protection: 105 to 150% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 1500V AC withstand voltage O/P-FG: 500V AC operating temperature: -10 to +60&deg;C weight: 660g

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name SP-100-15
Output voltage [V] 15
Phase 2 phase
Efficiency [%] 84
Output current range [A] 0...6,7
Output voltage tolerance: [%] 2
Output power [W] 100,5
Ripple [mVp-p] 100
Data Sheet

Unit price

41,19 €

Stock: 8
