PSAIGP 15V 13,4A

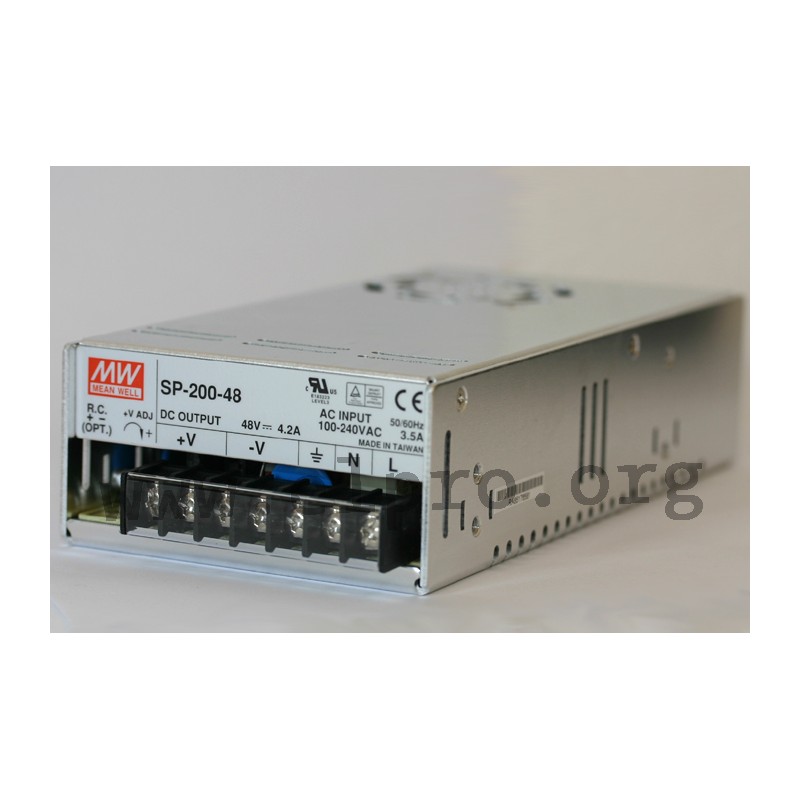

Mean Well power supply series SP-200

Switching power supplies in an enclosed housing with 200W, a universal input, a built-in fan and screw terminals. These devices have a built-in active PFC function, are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit and comply with UL60950-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: SP-200-5, SP-200-13.5 and SP-200-15.

  • single output
  • output: 200 to 201,1W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 50A
  • leakage current: <2mA
  • output voltage adjustment: -5/+10%
  • overload protection: 105 to 150%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -10 to +60°C
  • weight: 850g

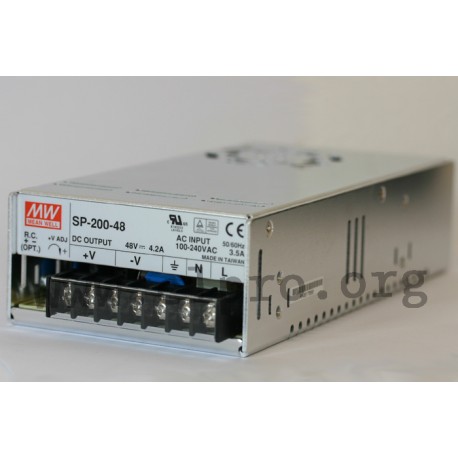

Meanwell SP-200 series

PSAIGP 15V 13,4A

18051 PSAIGP 15V 13,4A SP-200-15 SP-200-15 Mean Well power supply series&nbsp;SP-200. Switching power supplies in an enclosed housing with 200W, a universal input, a built-in fan and screw terminals. These devices have a&nbsp;built-in active PFC function, are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit and comply with&nbsp;UL60950-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series:&nbsp;SP-200-5, SP-200-13.5 and SP-200-15. single output output: 200 to 201,1W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 50A leakage current: &lt;2mA output voltage adjustment: -5/+10% overload protection: 105 to 150% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -10 to +60&deg;C weight: 850g

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name SP-200-15
Output voltage [V] 15
Phase 2 phase
Efficiency [%] 84
Output current range [A] 0...13,4
Output voltage tolerance: [%] 2
Output power [W] 201
Ripple [mVp-p] 100
Data Sheet

Unit price

59,59 €

Stock: 8
