PSAIGP 12V 40A

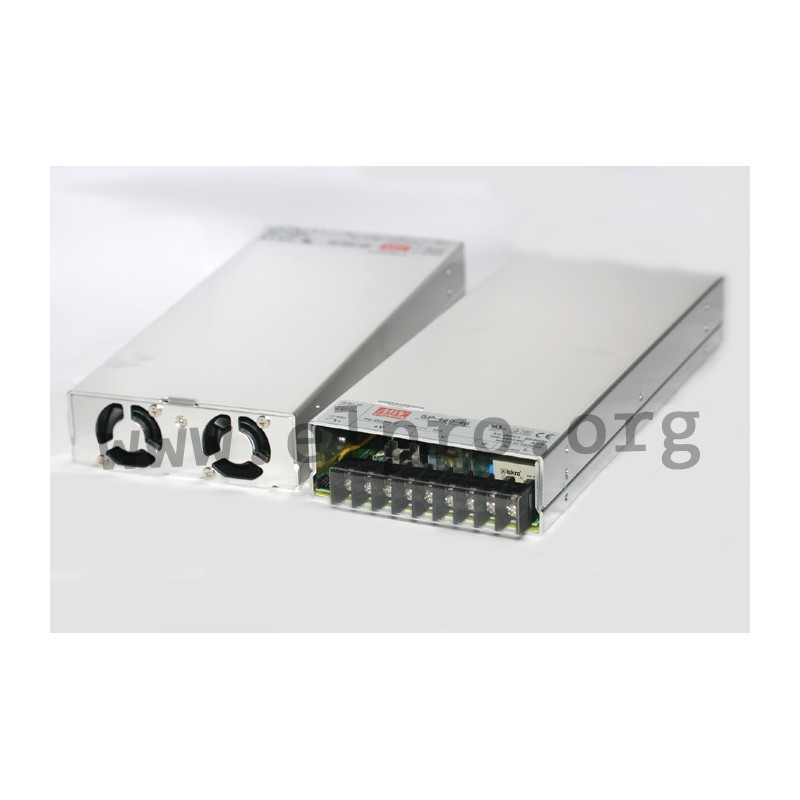

Mean Well power supply series SP-480

Switching power supplies in an enclosed housing with 480W, a fan, a universal input, a low profile (43mm), a built-in remote sense function and screw terminals. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a built-in remote ON/OFF control and comply with EN60950-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the types SP-480-12 and SP-480-48 of this Mean Well series.

  • single output
  • output: 480W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 40A
  • leakage current: <2mA
  • overload protection: 102 to 121% (3,3 to 5V) / 105 to 135% (12 to 48V)
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 1500V AC
  • operating temperature: -20 to +60°C
  • weight: 1700g

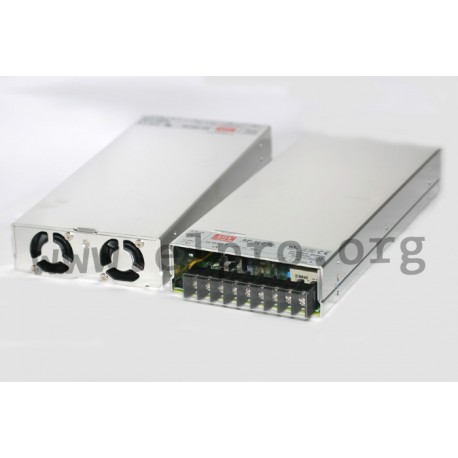

Meanwell SP-480 series

PSAIGP 12V 40A

18026 PSAIGP 12V 40A SP-480-12 SP-480-12 Mean Well power supply series SP-480. Switching power supplies in an enclosed housing with 480W, a fan, a universal input, a low profile (43mm), a built-in remote sense function and screw terminals. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a built-in remote ON/OFF control and comply with EN60950-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the types SP-480-12 and SP-480-48 of this Mean Well series. single output output: 480W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 40A leakage current: &lt;2mA overload protection: 102 to 121% (3,3 to 5V) / 105 to 135% (12 to 48V) withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 1500V AC operating temperature: -20 to +60°C weight: 1700g

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name SP-480-12
Output voltage [V] 12
Phase 2 phase
Efficiency [%] 85
Output current range [A] 0...43
Output voltage tolerance: [%] 1,5
Output power [W] 480
Output voltage adjustment [V] 10,8...13,2
Ripple [mVp-p] 120
Data Sheet

Unit price

142,09 €

Stock: 5
