PSAIG 12V 40A

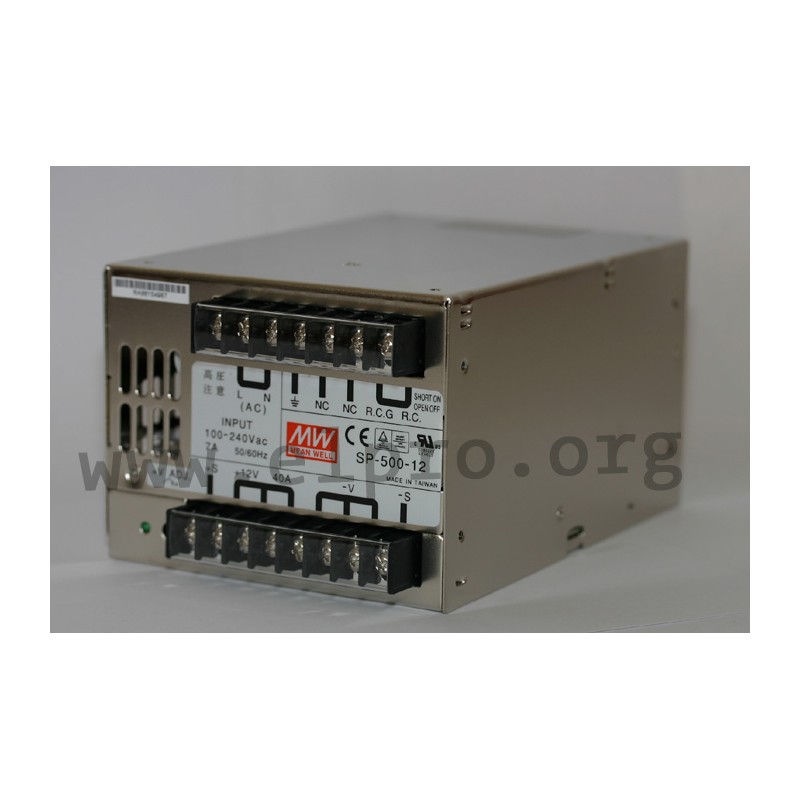

Mean Well power supply series SP-500

Switching power supplies in an enclosed housing with 500W, a built-in DC fan, a built-in remote sense function and a universal input. These devices have a built-in active PFC function and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They have a built-in remote ON/OFF control and comply with UL/EN60950-1, EN61000-3-2 as well as EN61000-3-3. We offer the type SP-500-12 of this Mean Well series.

  • single output
  • output: 480W
  • input voltage: 88 to 264V AC (47 to 63Hz), 124 to 370V DC
  • maximal input inrush current: 36A
  • leakage current: <3,5mA
  • output voltage adjustment: ±10%
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -10 to +50°C
  • weight: 1900g

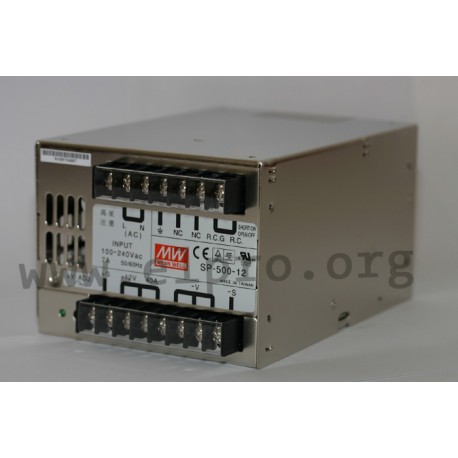

Meanwell SP-500 series

PSAIG 12V 40A

17931 PSAIG 12V 40A SP-500-12 SP-500-12 Mean Well power supply series SP-500. Switching power supplies in an&nbsp;enclosed housing with 500W, a built-in DC fan, a built-in remote sense function and a universal input. These&nbsp;devices have a built-in active PFC function and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They have a&nbsp;built-in remote ON/OFF&nbsp;control and comply with&nbsp;UL/EN60950-1, EN61000-3-2 as well as EN61000-3-3. We offer the type SP-500-12 of this Mean Well series. single output output: 480W input voltage: 88 to 264V AC (47 to 63Hz), 124 to 370V DC maximal input inrush current: 36A leakage current: &lt;3,5mA output voltage adjustment:&nbsp;&plusmn;10% overload protection: 105 to 135% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -10 to +50&deg;C weight: 1900g

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name SP-500-12
Output voltage [V] 12
Phase 2 phase
Efficiency [%] 84
Output current range [A] 0...40
Output voltage tolerance: [%] 1
Output power [W] 480
Ripple [mVp-p] 240
Data Sheet

Unit price

136,69 €

Stock: 3
