PSAIGP 15V 50A

Mean Well power supply series SP-750

Switching power supplies in an enclosed housing with 750W, a fan, a universal input, a built-in remote ON/OFF control and screw terminals. These devices have a built-in active PFC function and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They have a built-in remote sense function and comply with UL/EN60950-1, EN55011, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: SP-750-15, SP-750-24 and SP-750-27.

  • single output
  • output: 750 to 751,2W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 45A
  • leakage current: <2mA
  • overload protection: 105 to 125%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 1500V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -20 to +60°C
  • weight: 2900g

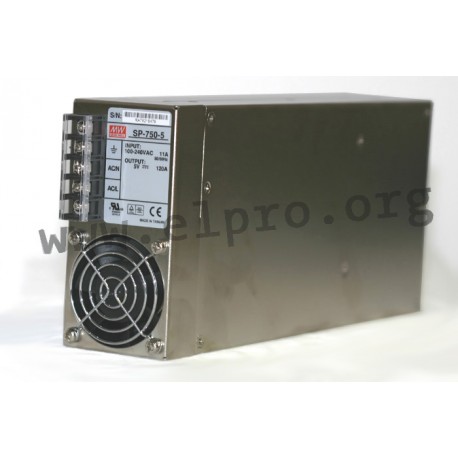

Mean Well SP-750 series

PSAIGP 15V 50A

18055 PSAIGP 15V 50A SP-750-15 SP-750-15 Mean Well power supply series SP-750. Switching power supplies in an&nbsp;enclosed housing with 750W, a fan, a universal input, a built-in remote ON/OFF control and screw terminals. These devices have a built-in active PFC function and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They have a&nbsp;built-in remote sense function and comply with&nbsp;UL/EN60950-1, EN55011, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series:&nbsp;SP-750-15, SP-750-24 and SP-750-27. single output output: 750 to 751,2W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 45A leakage current: &lt;2mA overload protection: 105 to 125% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 1500V AC withstand voltage O/P-FG: 500V AC operating temperature: -20 to +60&deg;C weight: 2900g

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name SP-750-15
Output voltage [V] 15
Phase 2 phase
Efficiency [%] 87
Output current range [A] 0...50
Output voltage tolerance: [%] 1
Output power [W] 750
Output voltage adjustment [V] 13,5...16,5
Ripple [mVp-p] 120
Data Sheet

Unit price

219,89 €

Stock: 1
