XLG-25-A

Mean Well LED driver series XLG-25

LED drivers in a metal housing (IP67) with 25W, a constant power and a low no-load power, a surge immunity level of 6kV and EN61000-3-2 Class C. These devices are protected against overload (auto recovery), short circuit, overtemperature as well as overvoltage and are suitable for LED lighting applications. They comply with EN61347-1, EN61347-2-13, EN62384, EN55015, EN61000-3-3 as well as EN61547 and have a built-in active PFC function. We offer the types XLG-25-A as well as XLG-25-AB of this Mean Well series. Both have a potentiometer for current adjustment. Furthermore, the type XLG-25-AB is equipped with a 3 in 1 dimming function (0 to 10V DC, 10V PWM, potentiometer).

  • single output
  • output: 25W
  • input voltage: 90 to 305V AC (47 to 63Hz)
  • maximal input inrush current: 50A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +85°C
  • dimensions: 105x63x20mm
  • weight: 410g

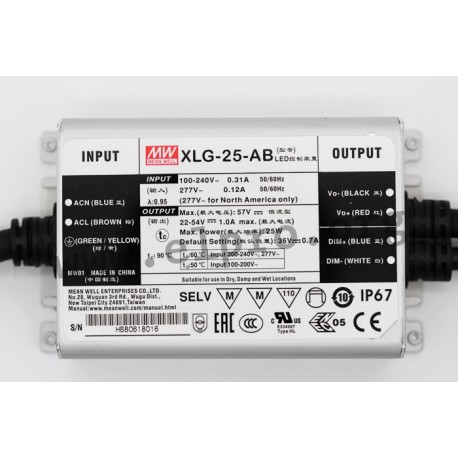

Mean Well XLG-25 series

XLG-25-A

112739 XLG-25-A XLG-25-A 4711287456737 Mean Well LED driver series XLG-25. LED drivers in a metal housing (IP67) with 25W, a constant power and a low no-load power, a surge immunity level of 6kV and EN61000-3-2 Class C. These devices are protected against overload (auto recovery), short circuit, overtemperature as well as overvoltage and are suitable for LED lighting applications. They comply with EN61347-1, EN61347-2-13, EN62384, EN55015, EN61000-3-3 as well as EN61547 and have a built-in active PFC function. We offer the types XLG-25-A as well as XLG-25-AB of this Mean Well series. Both have a potentiometer for current adjustment. Furthermore, the type XLG-25-AB is equipped with a 3 in 1 dimming function (0 to 10V DC, 10V PWM, potentiometer). single output output: 25W input voltage: 90 to 305V AC (47 to 63Hz) maximal input inrush current: 50A no-load power: &lt;0,5W withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +85°C dimensions: 105x63x20mm weight: 410g

Specifications

manufacturer
Manufacturer's name XLG-25-A
GTIN 4711287456737
Efficiency [%] 88
Output power [W] 25
Output current [mA] 700
Output voltage range [V] 22...54
Data Sheet

Unit price

14,99 €

Volume discounts

Quantity Unit price
50 + 14,09 €

Stock: 400
Further delivery:
CW 33/2024
