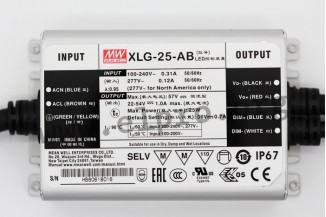

Mean Well power supply series XLG-25

SELV compliant LED power supplies by Mean Well with a surge immunity level of 6kV, constant power, a built-in active PFC function and a wide input range. These devices in a metal housing (IP67) are in compliance with the safety standards EN61347-1, EN61347-2-13, EN62384 (among others) and with the following EMC standards: EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61547 etc. They have a low no load power consumption, are protected against overtemperature, overvoltage, short circuit as well as overload (constant current limiting, auto recovery) and are suitable for LED lighting applications. We offer the types XLG-25-A and XLG-25-AB in our web shop. Both have a built-in potentiometer for current adjustment. In addition, the type XLG-25-AB has a 3 in 1 dimming function (0 to 10V DC, 10V PWM, potentiometer).

• single output
• output: 25W
• input voltage: 90 to 305V AC (47 to 63Hz)
• maximal input inrush current: 50A
• withstand voltage I/P-O/P: 3750V AC
• withstand voltage I/P-FG: 2000V AC
• withstand voltage O/P-FG: 1500V AC
• operating temperature: -40 to +85°C
• weight: 410g
