PF 24 KO

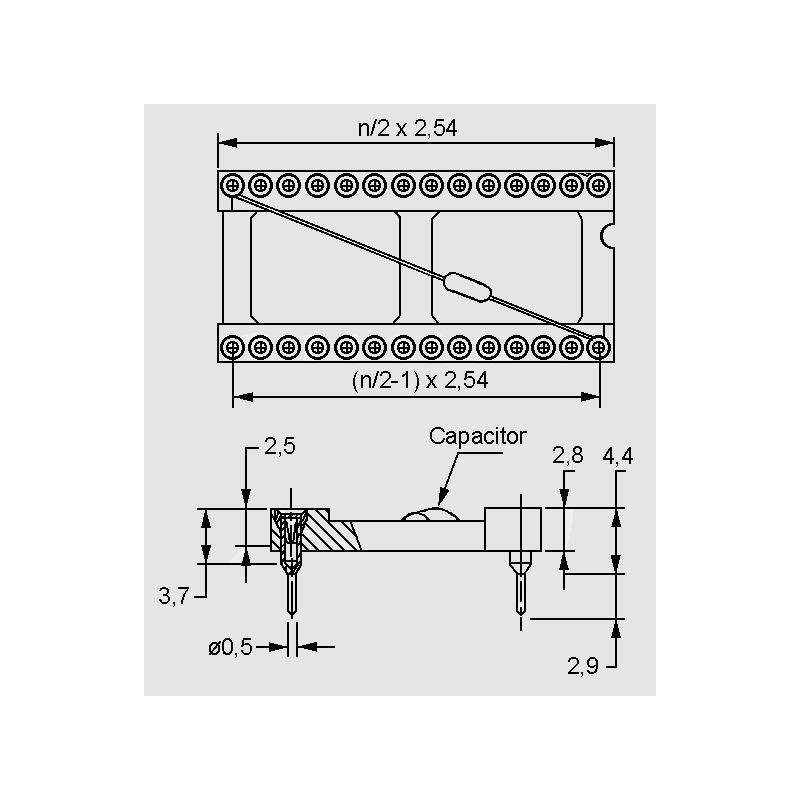

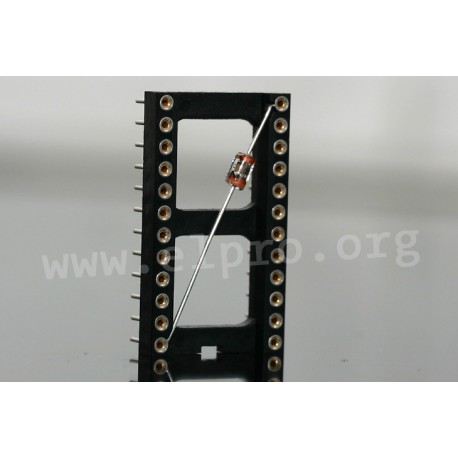

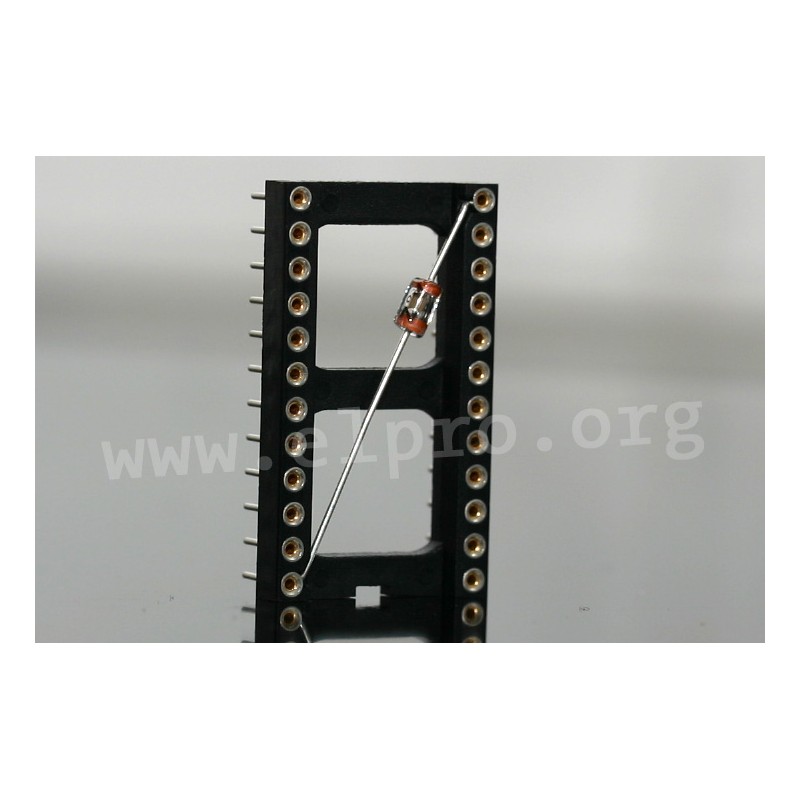

IC precision sockets

* pitch: 2.54 mm
* precision socket with integrated 100nF capacitor for broadband decoupling up to 100MHz
* up to twenty-times less impedance compared with more conventional decoupling
* impedance in frequency range up to 100MHz under 10Ω
* insulator: polyester, glass-filled, UL94V-0
* contact spring: gold-plated
* contact sleece: tin-plated
* ceramic capacitor 0.1µF
PF 24 KO

PF 24 KO

10351 PF 24 KO 001-4-024-6-B1STF-XT0 001-4-024-6-B1STF-XT0 IC precision sockets. * pitch: 2.54 mm* precision socket with integrated 100nF capacitor for broadband decoupling up to 100MHz* up to twenty-times less impedance compared with more conventional decoupling* impedance in frequency range up to 100MHz under 10Ω* insulator: polyester, glass-filled, UL94V-0* contact spring: gold-plated* contact sleece: tin-plated* ceramic capacitor 0.1µF

Specifications

manufacturer
Manufacturer's name 001-4-024-6-...
Number of poles 24
Width [mm] 15,24

Unit price

1,06 €

Stock: 202
Further delivery:
CW 24/2024

Minimum order quantity 1 to 15 units or multiples of 17 plus 0 to 15 .
