> Passive elements>IDC connectors>IDC male headers, pitch: 2.54mm>MPE Garry box headers, pitch 2,54mm, angled, 093 series>MLW 10 A

Manufacturers

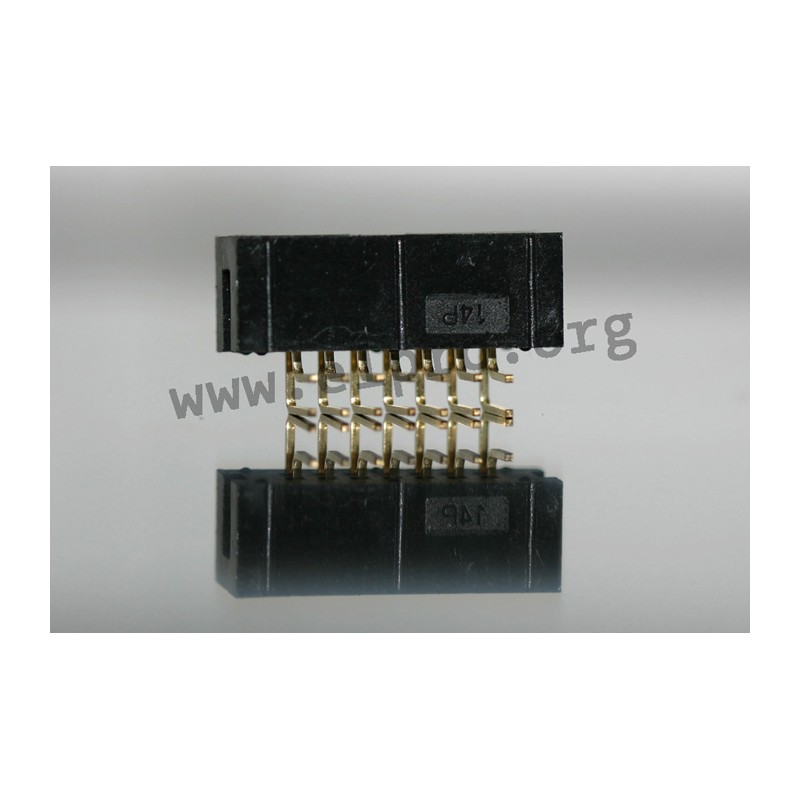

MLW 10 A

low profile

* angled
* colour: black
* pitch: 2.54mm
* PBT +30% glass fiber, UL94V-0
* contacts: brass
* contact surface: gold over nickel or tin
* rated current: 1A
* contact resistance (1A): 10mW
* insulation resistance (500V DC), min.: 1000MΩ
* temperature range: -55...+105°C
MLW _ A

MLW 10 A

9664 MLW 10 A 093-2-010-0-F-BS0 093-2-010-0-F-BS0 low profile. * angled* colour: black* pitch: 2.54mm* PBT +30% glass fiber, UL94V-0* contacts: brass* contact surface: gold over nickel or tin* rated current: 1A* contact resistance (1A): 10mW* insulation resistance (500V DC), min.: 1000MΩ* temperature range: -55...+105°C

Specifications

manufacturer
Manufacturer's name 093-2-010-0-F-BS0
Number of poles 10

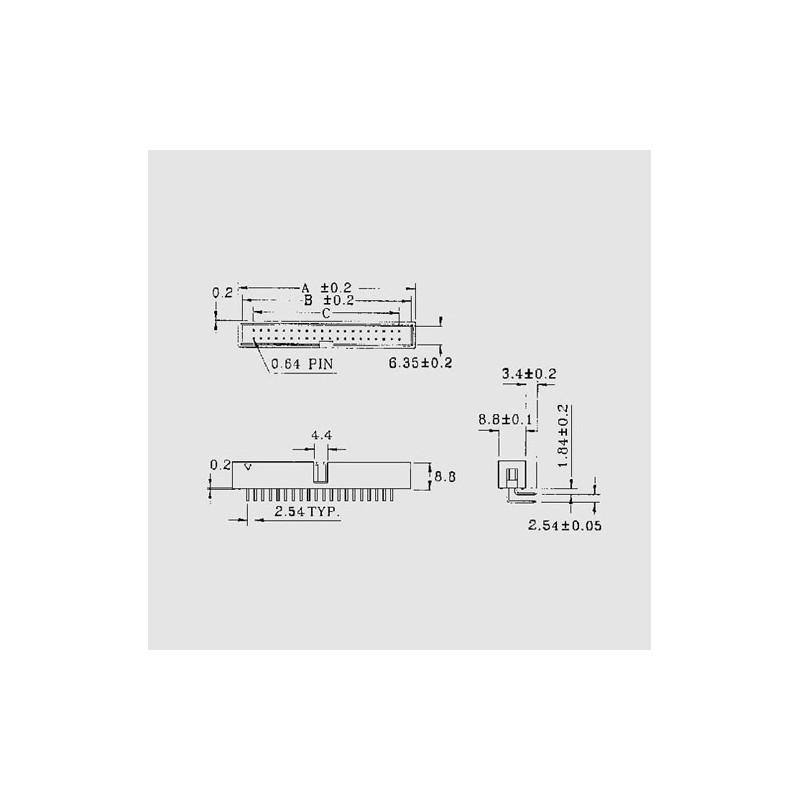

A [mm] 20,3
Width [mm] 18,1
C [mm] 10,16

Unit price

0,308 €

Stock: 18431
Next incoming goods:
CW 26/2024
5200 units

Further delivery:
CW 49/2024

Minimum order quantity 1 unit or multiples of 10 plus 0 to 1 .
