> Passive elements>IDC connectors>IDC male headers, pitch: 2.54mm>MPE Garry box headers, pitch 2,54mm, angled, 093 series>MLW 20 A

Manufacturers

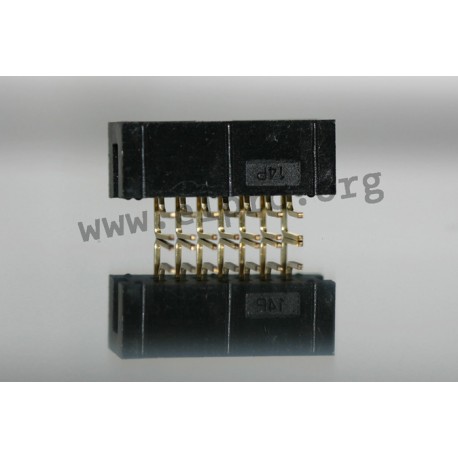

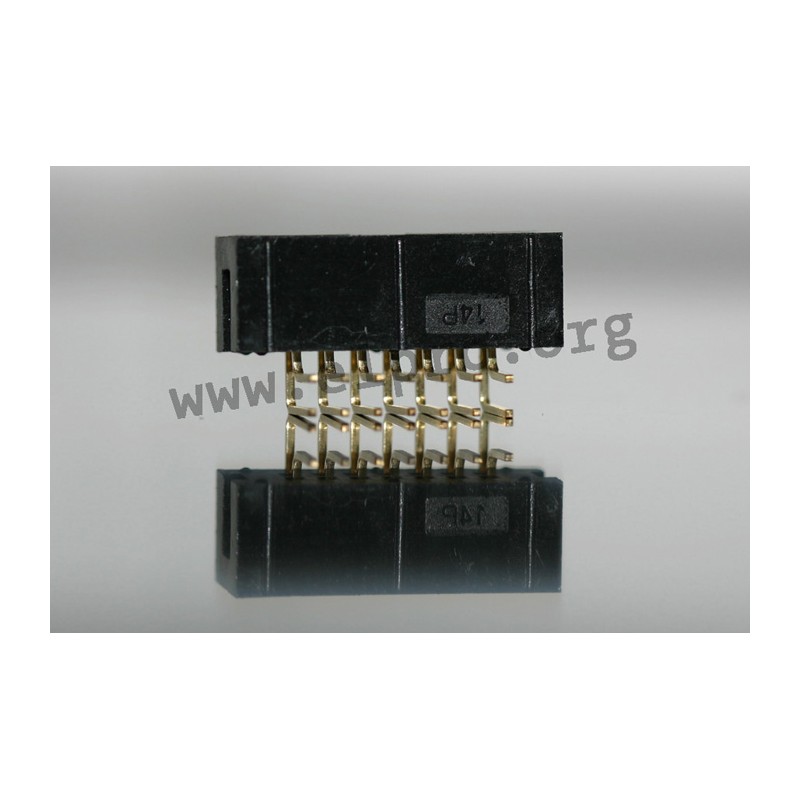

MLW 20 A

low profile

* angled
* colour: black
* pitch: 2.54mm
* PBT +30% glass fiber, UL94V-0
* contacts: brass
* contact surface: gold over nickel or tin
* rated current: 1A
* contact resistance (1A): 10mW
* insulation resistance (500V DC), min.: 1000MΩ
* temperature range: -55...+105°C
MLW _ A

MLW 20 A

9667 MLW 20 A 093-2-020-0-F-BS0 093-2-020-0-F-BS0 low profile. * angled* colour: black* pitch: 2.54mm* PBT +30% glass fiber, UL94V-0* contacts: brass* contact surface: gold over nickel or tin* rated current: 1A* contact resistance (1A): 10mW* insulation resistance (500V DC), min.: 1000MΩ* temperature range: -55...+105°C

Specifications

manufacturer
Manufacturer's name 093-2-020-0-F-BS0
Number of poles 20

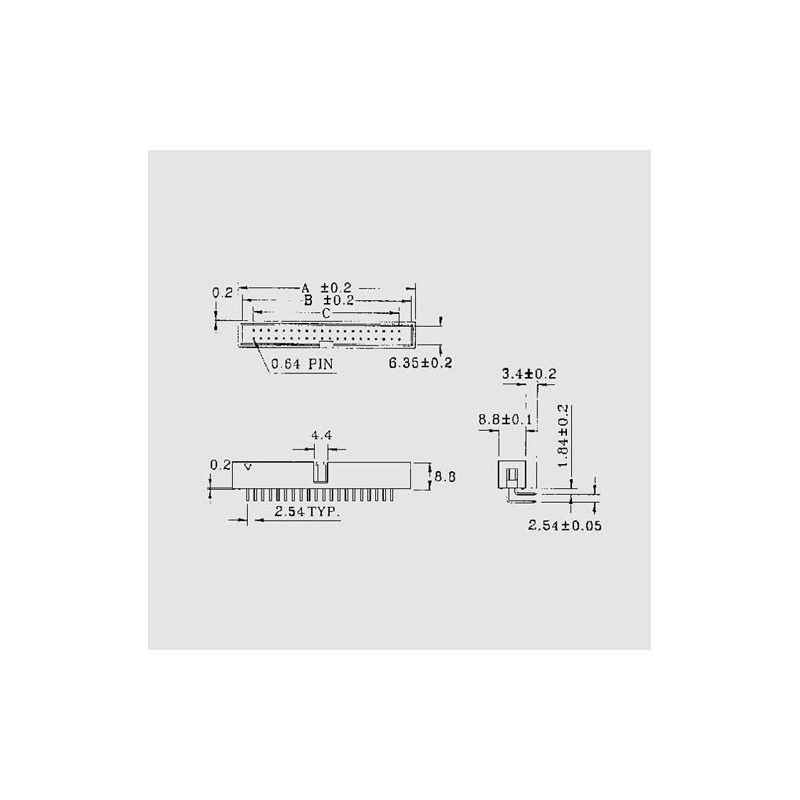

A [mm] 33
Width [mm] 30,8
C [mm] 22,85

Unit price

0,599 €

Stock: 710
Next incoming goods:
CW 11/2026
2900 units

Further delivery:
CW 12/2026

Minimum order quantity 10 units or
multiples of 10.
