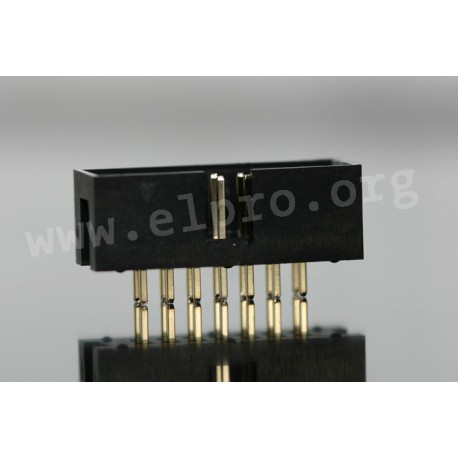

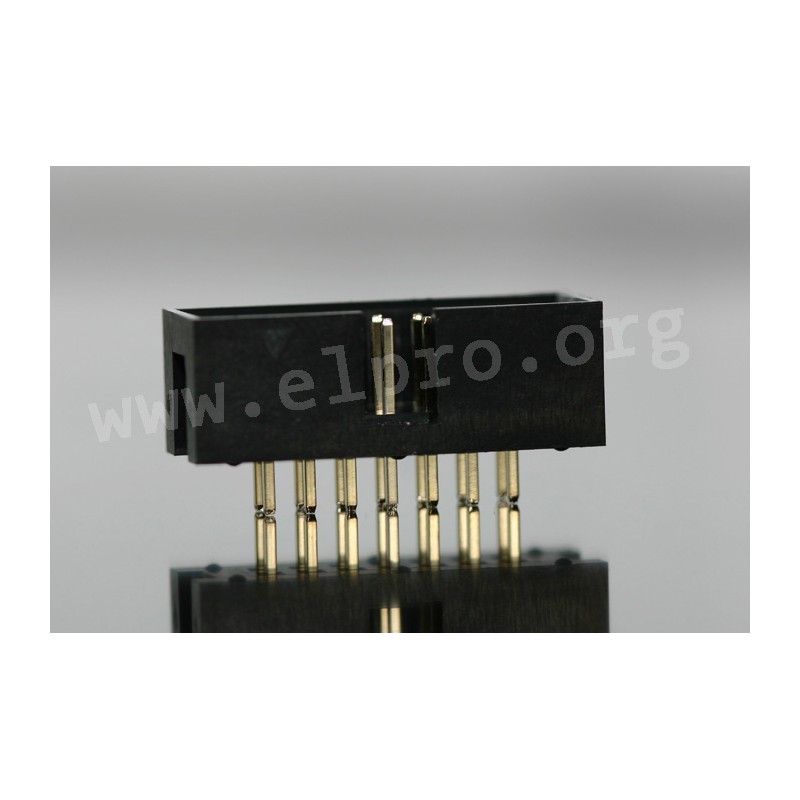

MLW 14 G

low profile box headers

• straight
• colour: black
• pitch: 2.54mm
• PBT +30% glass fiber, UL94V-0
• contacts: brass
• contact surface: gold over nickel or tin
• rated current: 1A
• contact resistance (1A): 10mW
• insulation resistance (500V DC), min.: 1000M&Omega:
• temperature range: -55...+105°C

MLW 14 G

MLW 14 G

9677 MLW 14 G 093-1-014-0-F-BS0 093-1-014-0-F-BS0 low profile box headers. • straight• colour: black• pitch: 2.54mm• PBT +30% glass fiber, UL94V-0• contacts: brass• contact surface: gold over nickel or tin• rated current: 1A• contact resistance (1A): 10mW• insulation resistance (500V DC), min.: 1000M&Omega:• temperature range: -55...+105°C

Specifications

manufacturer
Manufacturer's name 093-1-014-0-F-BS0
Number of poles 14

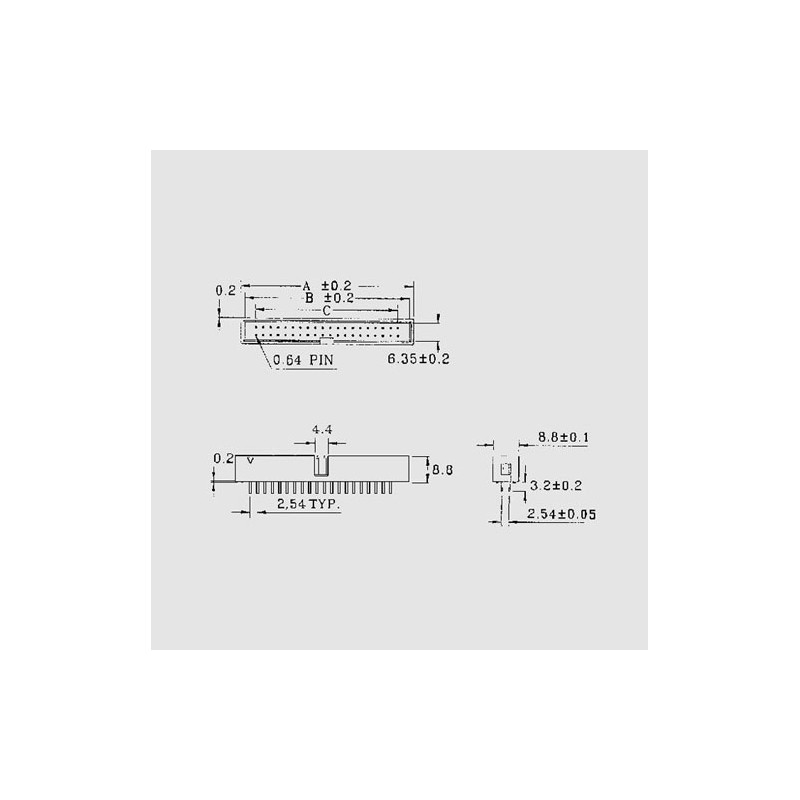

A [mm] 25,38
Width [mm] 23,18
C [mm] 15,24

Unit price

0,263 €

Stock: 8260
Next incoming goods:
CW 28/2024
43280 units

Further delivery:
CW 46/2024

Minimum order quantity 10 units or
multiples of 10.
