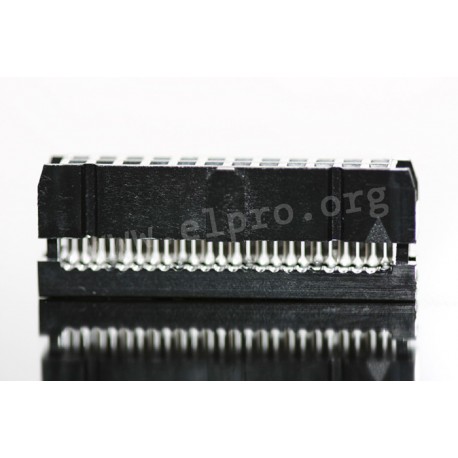

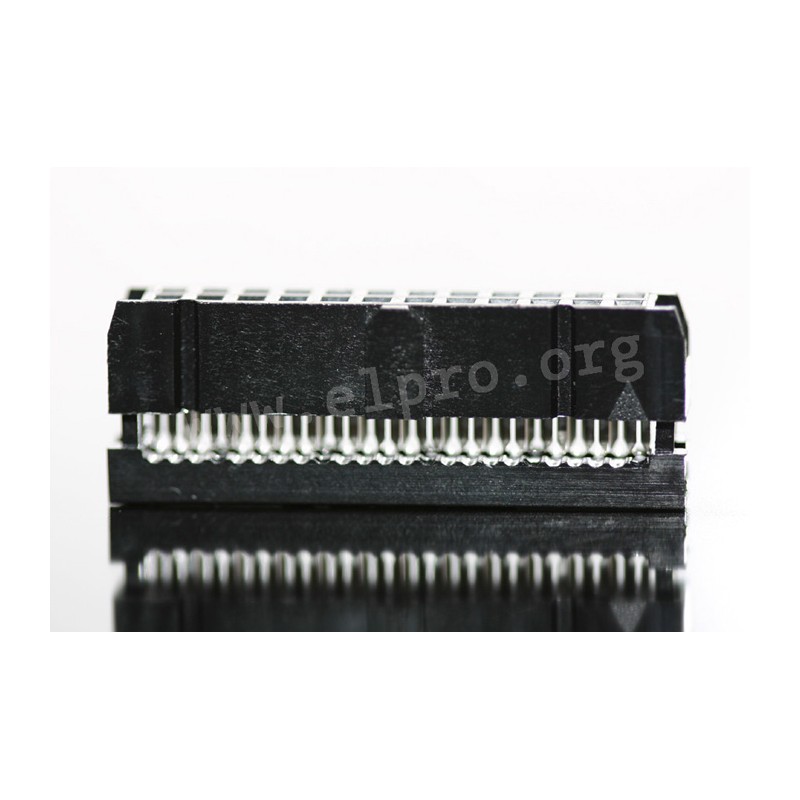

FL 10 LC

MPE Garry IDC female header series 101

  • IDC female headers made of thermoplastic (UL94V-0) in black
  • for flat cables (DIN 41651 / IEC60603-13)
  • with selectively gold-plated contact surfaces and strain relief
  • rated current: 1A
  • rated voltage: 250VRMS / 250V DC
  • dielectric strength: 500VRMS (1min)
  • operating temperature: -40 to +105°C
  • pitch: 2,54mm
FL 10 LC

FL 10 LC

7847 FL 10 LC 101-2-010-S-BQ0A07 101-2-010-S-BQ0A07 MPE Garry IDC female header series 101. IDC female headers made of thermoplastic (UL94V-0) in black for flat cables (DIN 41651 / IEC60603-13) with selectively gold-plated contact surfaces and strain relief rated current: 1A rated voltage: 250VRMS / 250V DC dielectric strength: 500VRMS (1min) operating temperature: -40 to +105°C pitch: 2,54mm

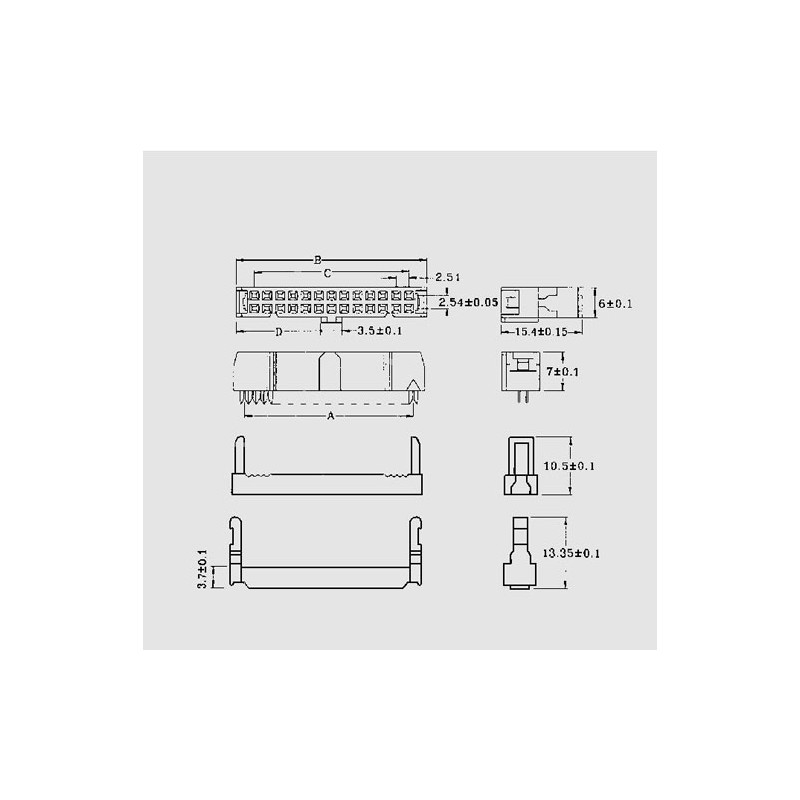

Specifications

manufacturer
Manufacturer's name 101-2-010-S-BQ0A07
Number of poles 10
A [mm] 11,43
Width [mm] 17,27
D [mm] 6,9
C [mm] 10,16
Data Sheet

Unit price

0,148 €

Stock: 61420
Further delivery:
CW 50/2024

Minimum order quantity 10 units or
multiples of 10.
