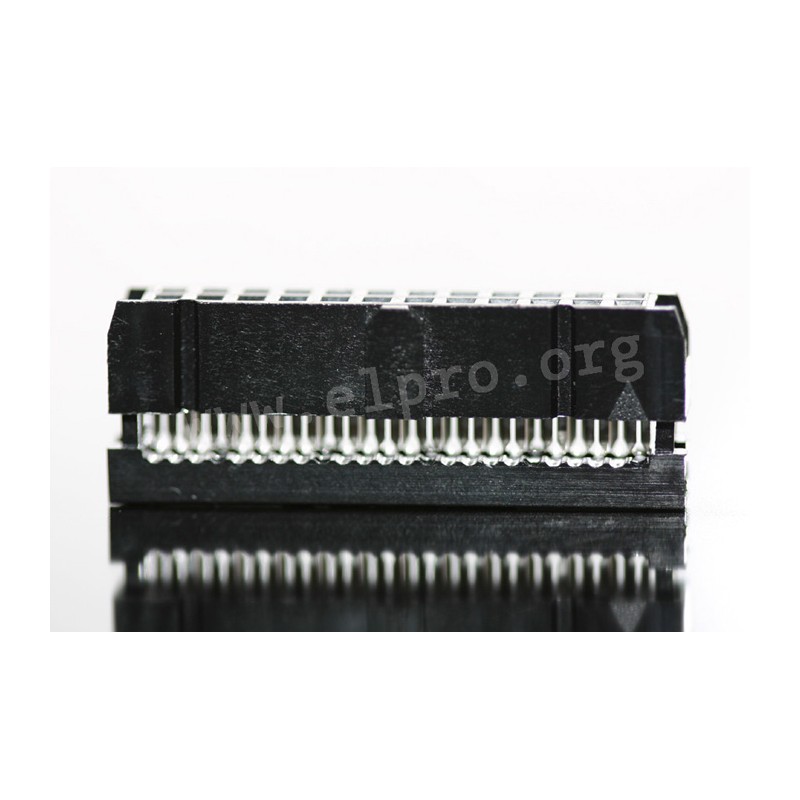

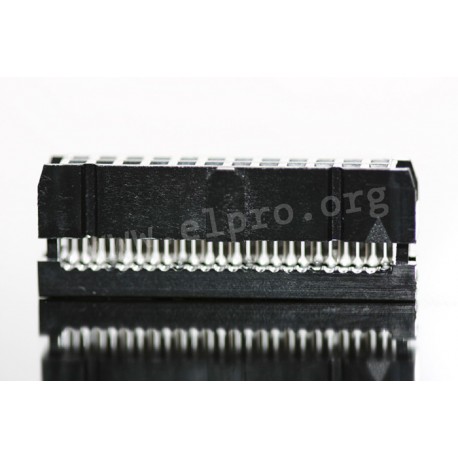

FL 16 LC

MPE Garry IDC female header series 101

  • IDC female headers made of thermoplastic (UL94V-0) in black
  • for flat cables (DIN 41651 / IEC60603-13)
  • with selectively gold-plated contact surfaces and strain relief
  • rated current: 1A
  • rated voltage: 250VRMS / 250V DC
  • dielectric strength: 500VRMS (1min)
  • operating temperature: -40 to +105°C
  • pitch: 2,54mm
FL 16 LC

FL 16 LC

7853 FL 16 LC 101-2-016-S-BQ0A05 101-2-016-S-BQ0A05 MPE Garry IDC female header series 101. IDC female headers made of thermoplastic (UL94V-0) in black for flat cables (DIN 41651 / IEC60603-13) with selectively gold-plated contact surfaces and strain relief rated current: 1A rated voltage: 250VRMS / 250V DC dielectric strength: 500VRMS (1min) operating temperature: -40 to +105°C pitch: 2,54mm

Specifications

manufacturer
Manufacturer's name 101-2-016-S-BQ0A05
Number of poles 16

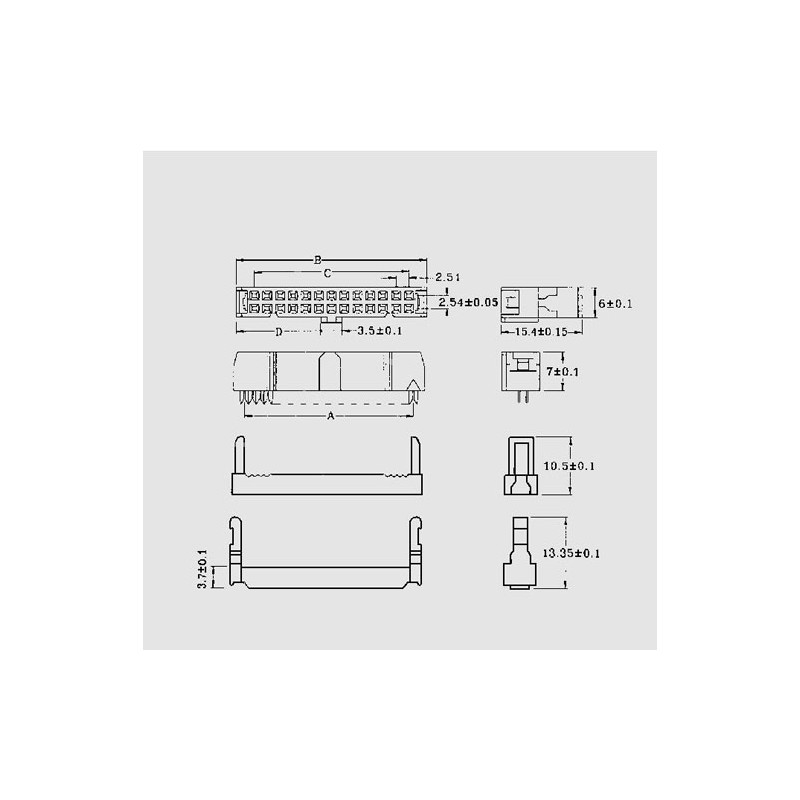

A [mm] 19,05
Width [mm] 24,94
D [mm] 10,71
C [mm] 17,76
Data Sheet

Unit price

0,178 €

Stock: 6667
Next incoming goods:
CW 36/2024
13200 units

Further delivery:
CW 50/2024

Minimum order quantity 1 to 3 units or multiples of 12 plus 0 to 3 .
