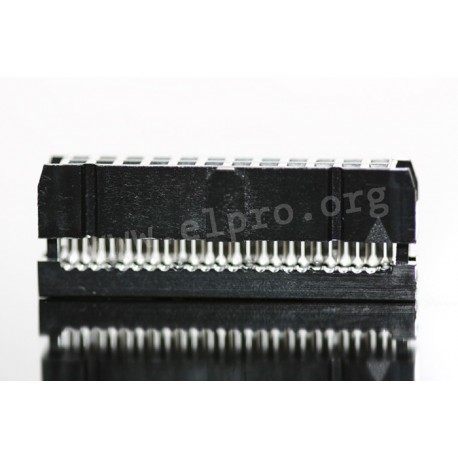

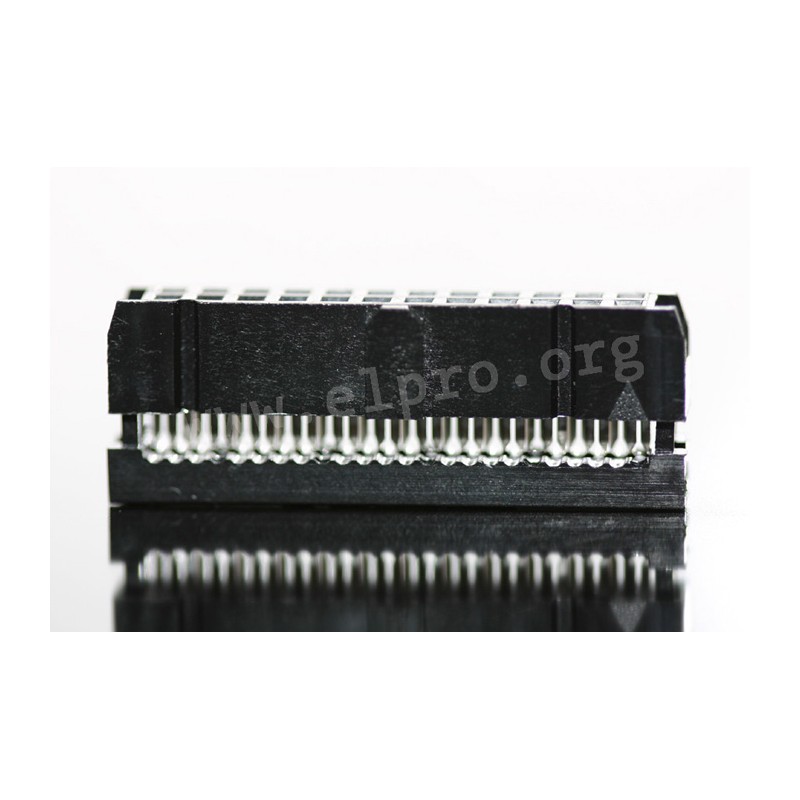

FL 24 LC

MPE Garry IDC female header series 101

  • IDC female headers made of thermoplastic (UL94V-0) in black
  • for flat cables (DIN 41651 / IEC60603-13)
  • with selectively gold-plated contact surfaces and strain relief
  • rated current: 1A
  • rated voltage: 250VRMS / 250V DC
  • dielectric strength: 500VRMS (1min)
  • operating temperature: -40 to +105°C
  • pitch: 2,54mm
FL 24 LC

FL 24 LC

7857 FL 24 LC FL 24 LC MPE Garry IDC female header series 101. IDC female headers made of thermoplastic (UL94V-0) in black for flat cables (DIN 41651 / IEC60603-13) with selectively gold-plated contact surfaces and strain relief rated current: 1A rated voltage: 250VRMS / 250V DC dielectric strength: 500VRMS (1min) operating temperature: -40 to +105°C pitch: 2,54mm

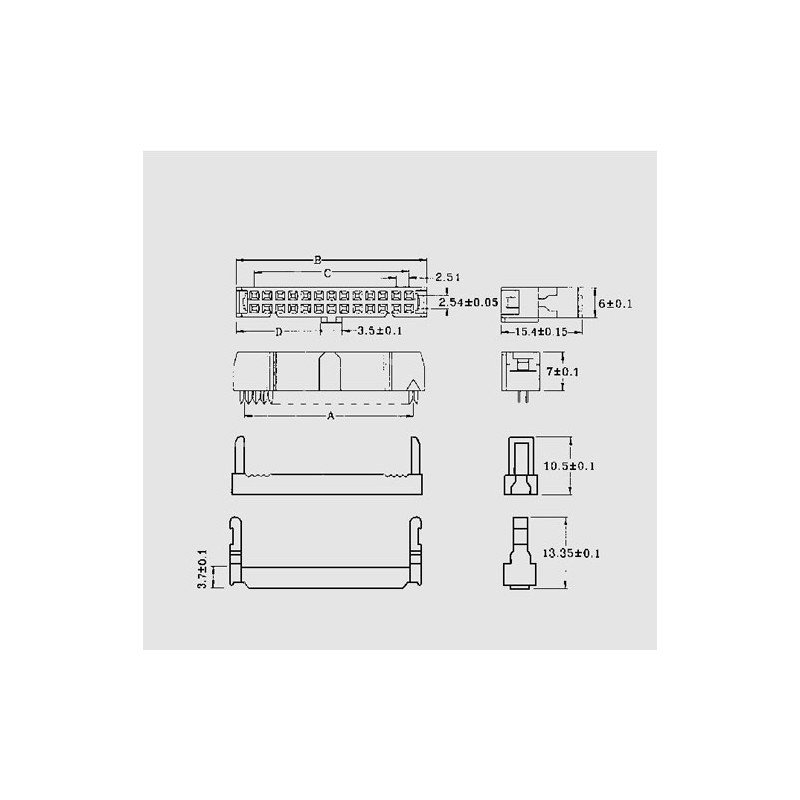

Specifications

Number of poles 24
A [mm] 29,21
Width [mm] 35,08
D [mm] 15,79
C [mm] 27,94

Unit price

0,26 €

Stock: 50
