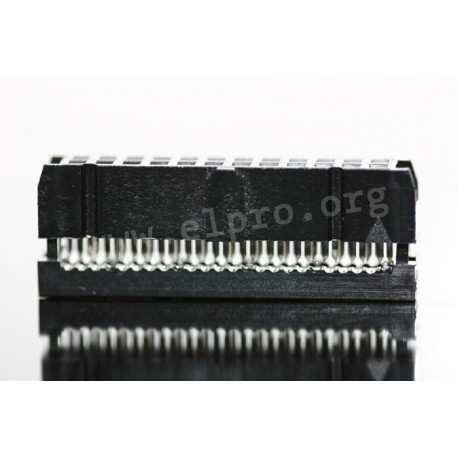

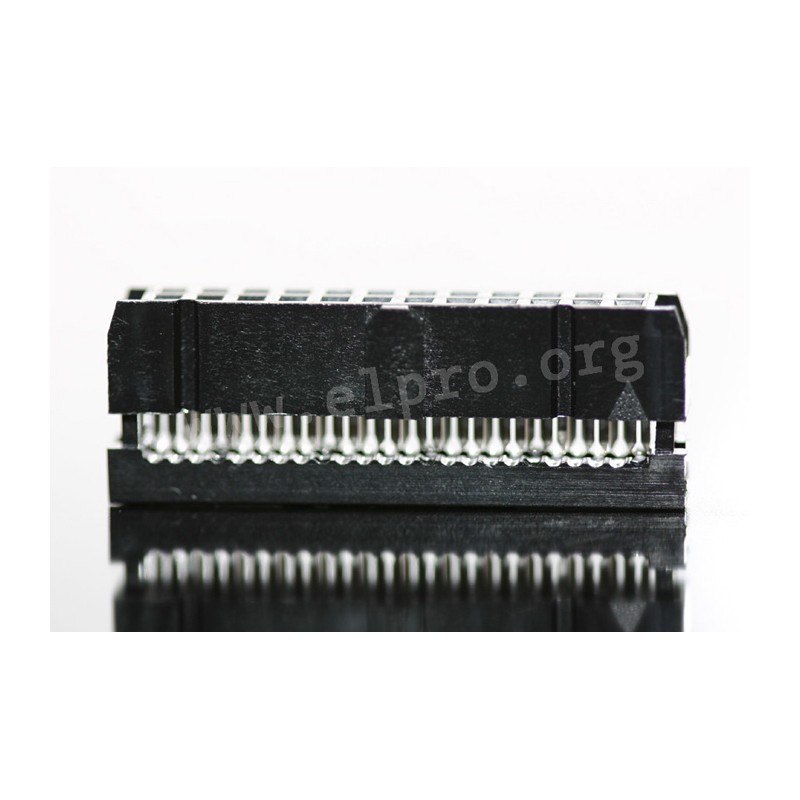

FL 26 LC

MPE Garry IDC female header series 101

  • IDC female headers made of thermoplastic (UL94V-0) in black
  • for flat cables (DIN 41651 / IEC60603-13)
  • with selectively gold-plated contact surfaces and strain relief
  • rated current: 1A
  • rated voltage: 250VRMS / 250V DC
  • dielectric strength: 500VRMS (1min)
  • operating temperature: -40 to +105°C
  • pitch: 2,54mm
FL 26 LC

FL 26 LC

7859 FL 26 LC 101-2-026-S-BQ0A06 101-2-026-S-BQ0A06 MPE Garry IDC female header series 101. IDC female headers made of thermoplastic (UL94V-0) in black for flat cables (DIN 41651 / IEC60603-13) with selectively gold-plated contact surfaces and strain relief rated current: 1A rated voltage: 250VRMS / 250V DC dielectric strength: 500VRMS (1min) operating temperature: -40 to +105°C pitch: 2,54mm

Specifications

manufacturer
Manufacturer's name 101-2-026-S-BQ0A06
Number of poles 26

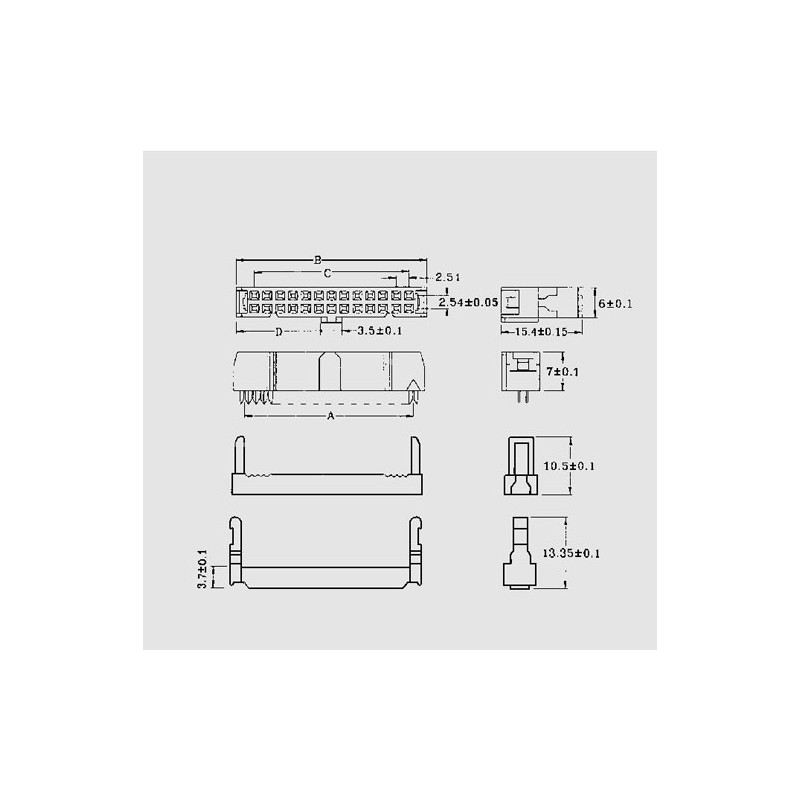

A [mm] 31,75
Width [mm] 37,58
D [mm] 17,06
C [mm] 30,48
Data Sheet

Unit price

0,236 €

Stock: 61732
Further delivery:
CW 50/2024

Minimum order quantity 1 to 4 units or multiples of 12 plus 0 to 4 .
