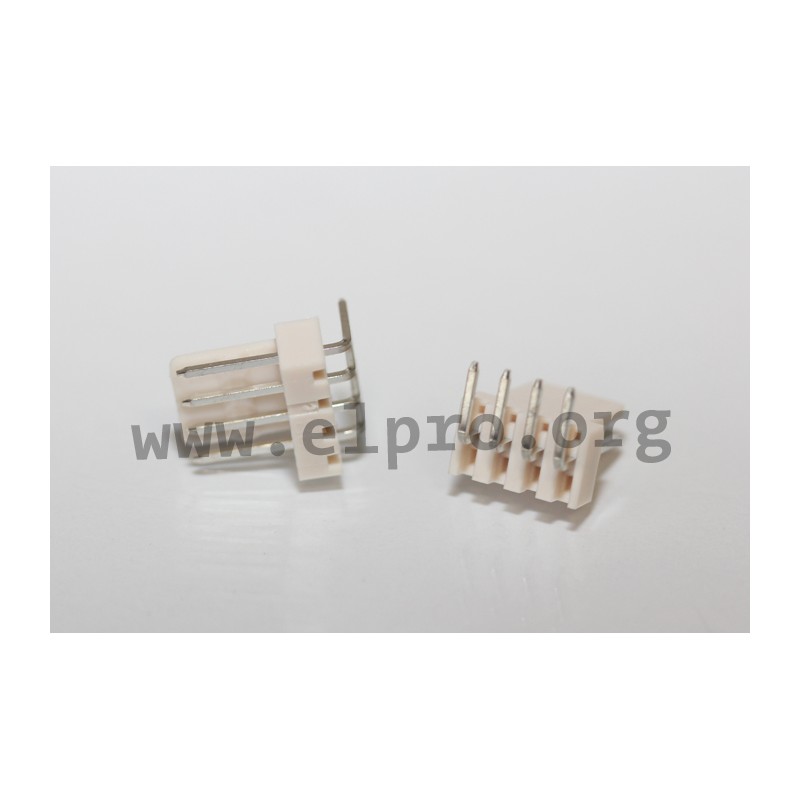

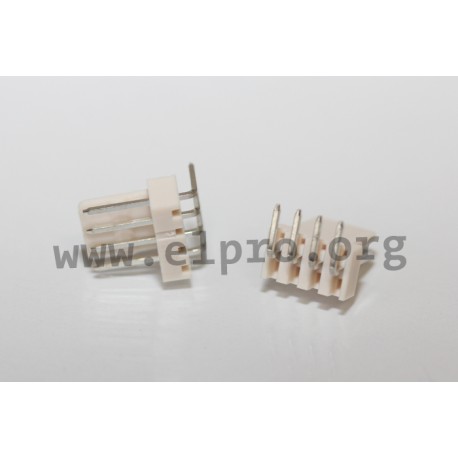

PSA 2,54 8-polig

MPE Garry pin header series 428

  • angled type nylon crimp connectors (90°)
  • insulator is made of thermoplastic (UL94V-0)
  • with tinned copper alloy contacts
  • rated voltage: 250VRMS/V DC
  • rated current: 3A
  • pitch: 2,54mm

Matching contacts

PSA 2,54

PSA 2,54 8-polig

11598 PSA 2,54 8-polig 428-2-008-0-T-KS0 428-2-008-0-T-KS0 MPE Garry pin header series 428. angled type nylon crimp connectors (90°) insulator is made of thermoplastic (UL94V-0) with tinned copper alloy contacts rated voltage: 250VRMS/V DC rated current: 3A pitch: 2,54mm Matching contacts

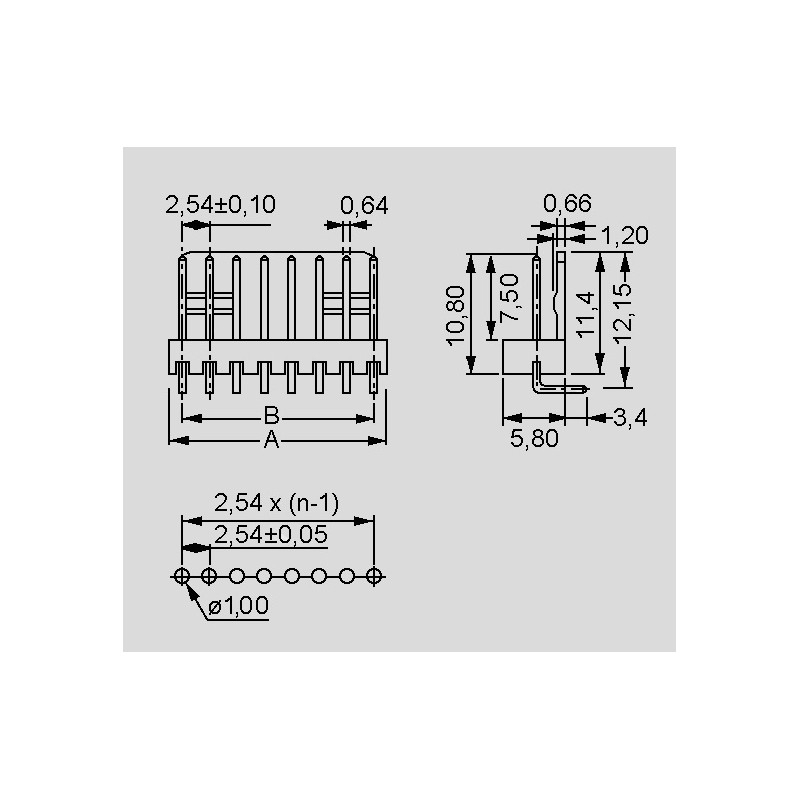

Specifications

manufacturer
Manufacturer's name 428-2-008-0-T-KS0
Number of poles 8
A [mm] 20,32
Width [mm] 17,78
Pitch [mm] 2,54
Data Sheet

Unit price

0,176 €

Stock: 83
Next incoming goods:
CW 52/2026
2500 units

Further delivery:
CW 05/2027

Minimum order quantity 1 to 83 units or multiples of 100 plus 0 to 83 .
