PSA 2,54 12-polig

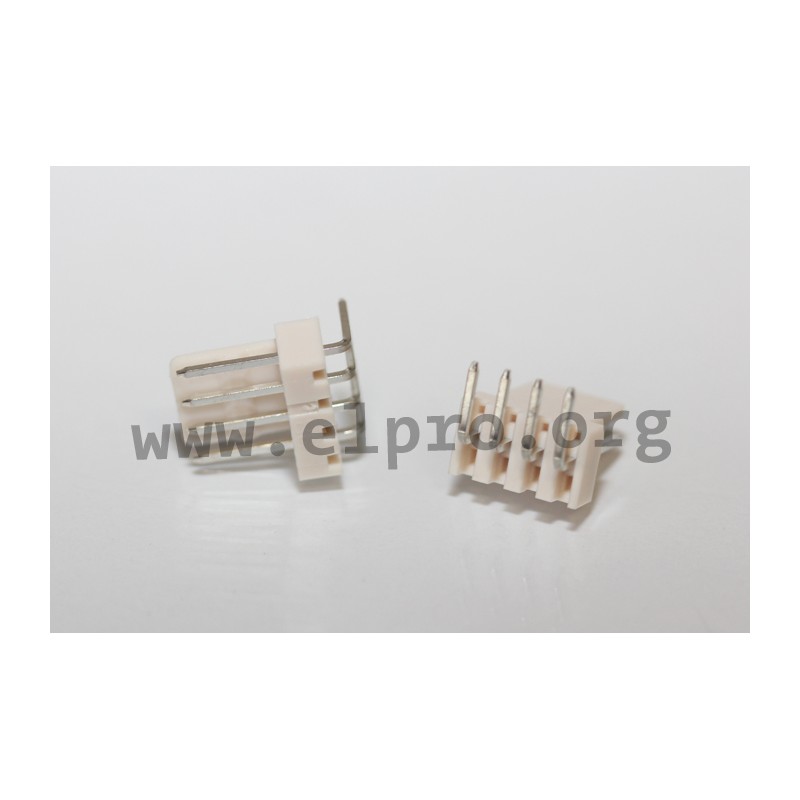

MPE Garry pin header series 428

  • angled type nylon crimp connectors (90°)
  • insulator is made of thermoplastic (UL94V-0)
  • with tinned copper alloy contacts
  • rated voltage: 250VRMS/V DC
  • rated current: 3A
  • pitch: 2,54mm

Matching contacts

PSA 2,54

PSA 2,54 12-polig

39072 PSA 2,54 12-polig 428-2-012-0-T-KS0 428-2-012-0-T-KS0 MPE Garry pin header series 428. angled type nylon crimp connectors (90°) insulator is made of thermoplastic (UL94V-0) with tinned copper alloy contacts rated voltage: 250VRMS/V DC rated current: 3A pitch: 2,54mm Matching contacts

Discontinued items. Only remainder of stock available.

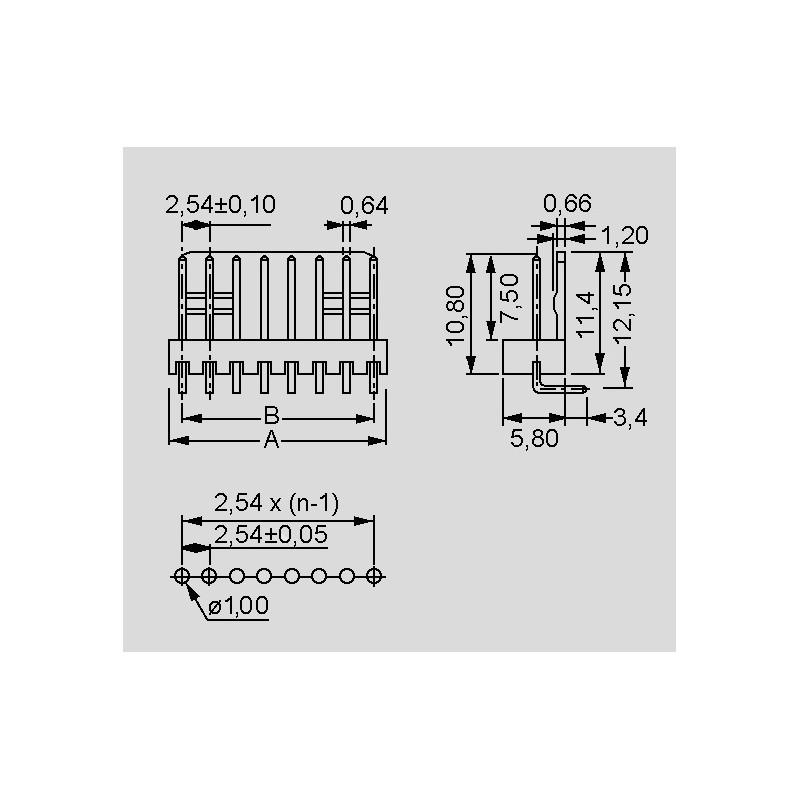

Specifications

manufacturer
Manufacturer's name 428-2-012-0-T-KS0
Number of poles 12
A [mm] 30,48
Width [mm] 27,94
Pitch [mm] 2,54
Data Sheet

Unit price

0,285 €

Stock: 2700

Minimum order quantity 100 units or
multiples of 100.
