PSG 3,96 8-polig

MPE Garry pin header series 580

Straight male headers for crimp connectors with tinned brass contacts. These pin strips have an insulator made of polyamide 6.6 (UL94V-0) and have a pitch of 3,96mm. They are suitable for 250VRMS/V DC as well as 5A. We offer the following types of this MPE Garry series: 580-3-002-0-T-BS0, 580-3-003-0-T-BS0, 580-3-004-0-T-BS0, 580-3-005-T-BS0, 580-3-006-0-T-BS0, 580-3-007-0-T-BS0, 580-3-008-0-T-BS0, 580-3-009-0-T-BS0 and 580-3-015-0-T-BS0.

  • pitch: 3,96mm
  • number of poles: 2 to 15
  • rated voltage: 250VRMS/V DC
  • rated current: 5A
  • dielectric strength (1min): 1500VRMS
  • operating temperature: -25 to +85°C

Matching crimp connectors

PSG 3,96

PSG 3,96 8-polig

39074 PSG 3,96 8-polig 580-3-008-0-T-BS0 580-3-008-0-T-BS0 MPE Garry pin header series 580. Straight male headers for crimp connectors with tinned brass contacts. These pin strips have an insulator made of polyamide 6.6 (UL94V-0) and have a pitch of 3,96mm. They are suitable for 250VRMS/V DC as well as 5A. We offer the following types of this MPE Garry series: 580-3-002-0-T-BS0, 580-3-003-0-T-BS0, 580-3-004-0-T-BS0, 580-3-005-T-BS0, 580-3-006-0-T-BS0, 580-3-007-0-T-BS0, 580-3-008-0-T-BS0, 580-3-009-0-T-BS0 and 580-3-015-0-T-BS0. pitch: 3,96mm number of poles: 2 to 15 rated voltage: 250VRMS/V DC rated current: 5A dielectric strength (1min): 1500VRMS operating temperature: -25 to +85°C Matching crimp connectors

Specifications

manufacturer
Manufacturer's name 580-3-008-0-T-BS0
Number of poles 8

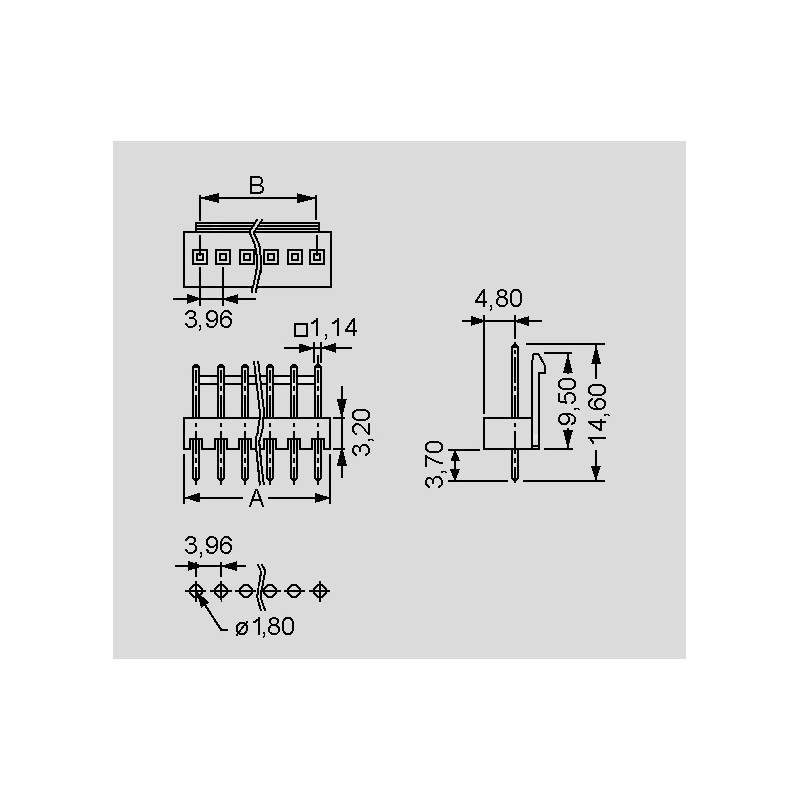

A [mm] 31,68
Width [mm] 27,72

Unit price

0,64 €

Stock: 2400
Further delivery:
CW 46/2024

Minimum order quantity 100 units or
multiples of 100.
