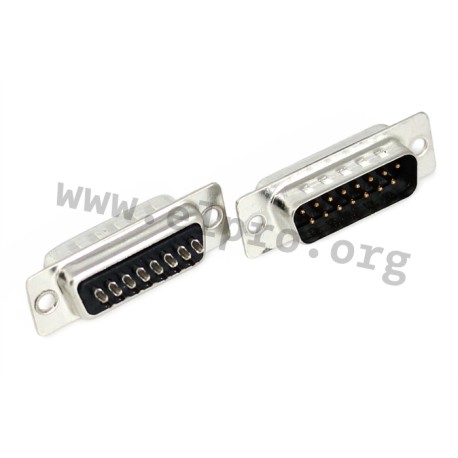

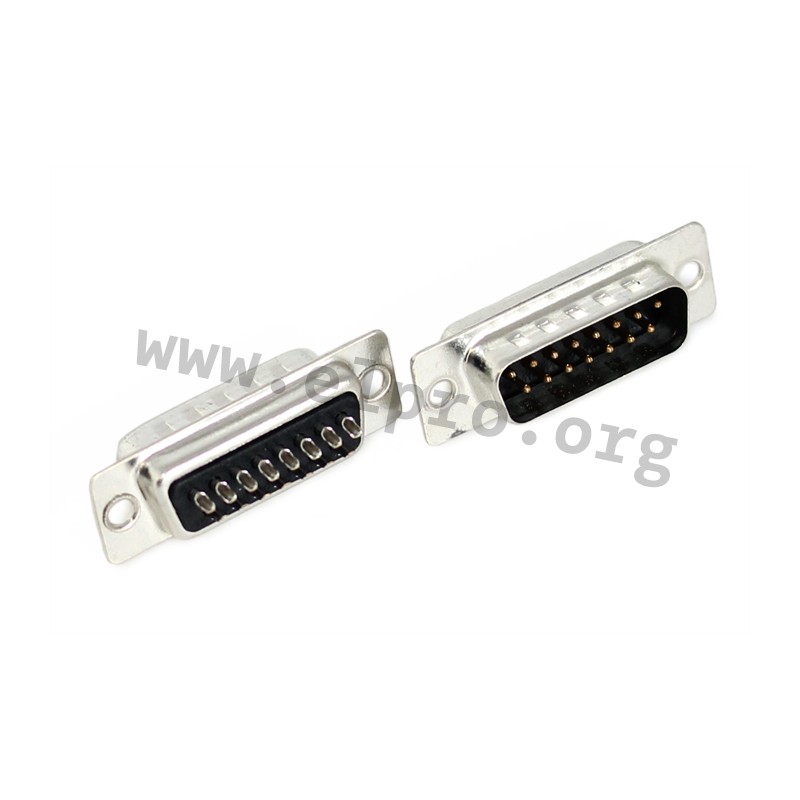

DS 15 L

simple version

• solder buckets
• insulating shell: PBT + 30% glass fiber, UL94V-0
• stamped brass contacts

contact surface
• plug side: selective flash gold over nickel
• solder side: tin over nickel
• housing frame: steel, tin-plated
• operating temperature range: -40...+105°C

596-4-015M-A00TS-BS0, MPE Garry pin strips, stamped contacts, solder bucket, 596-4 series

DS 15 L

13581 DS 15 L 596-4-015M-A00TS-BS0 596-4-015M-A00TS-BS0 simple version. • solder buckets• insulating shell: PBT + 30% glass fiber, UL94V-0• stamped brass contactscontact surface• plug side: selective flash gold over nickel• solder side: tin over nickel• housing frame: steel, tin-plated• operating temperature range: -40...+105°C

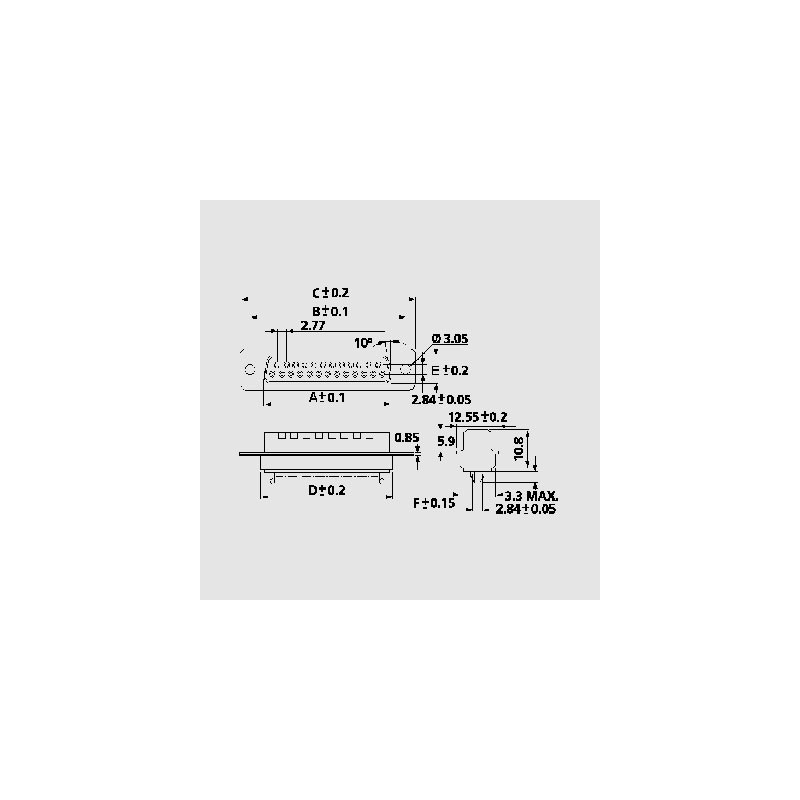

Specifications

manufacturer
Manufacturer's name 596-4-015M-A...
Number of poles 15
A [mm] 25,25
Width [mm] 33,32
D [mm] 27,75
F [mm] 10,72
C [mm] 39,25

Unit price

0,339 €

Stock: 3990
Next incoming goods:
CW 24/2024
2400 units

Further delivery:
CW 44/2024

Minimum order quantity 10 units or
multiples of 10.
