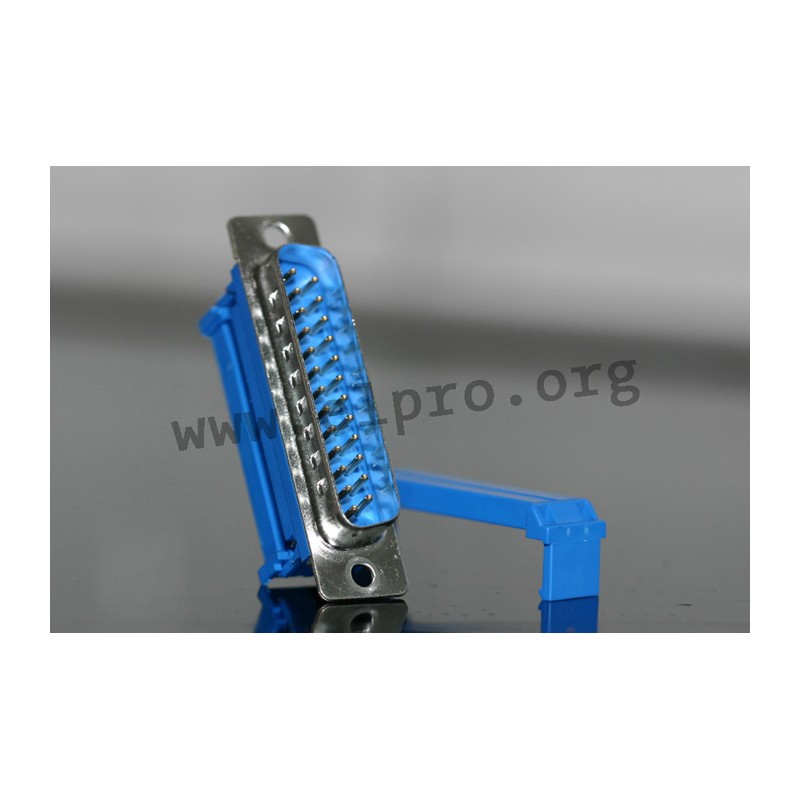

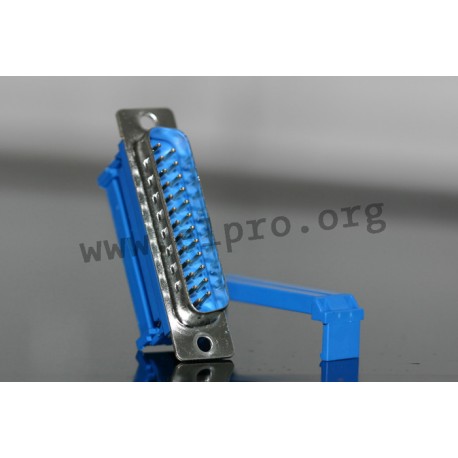

DSF 25 LC

for IDC

* compatible with all D-Sub connectors
* with strain relief
* insulating shell: PBT, glass-filled, UL94V-0
* contacts: phosphor bronze
* contact surface: selective flash gold
* solder side: tin over nickel
* housing material: steel, tinned
* temperature range: -25...+85°C




DSF 25 LC

DSF 25 LC

13597 DSF 25 LC 706-1-025M-A00TS-BS0 706-1-025M-A00TS-BS0 for IDC. * compatible with all D-Sub connectors* with strain relief* insulating shell: PBT, glass-filled, UL94V-0* contacts: phosphor bronze* contact surface: selective flash gold* solder side: tin over nickel* housing material: steel, tinned* temperature range: -25...+85°C

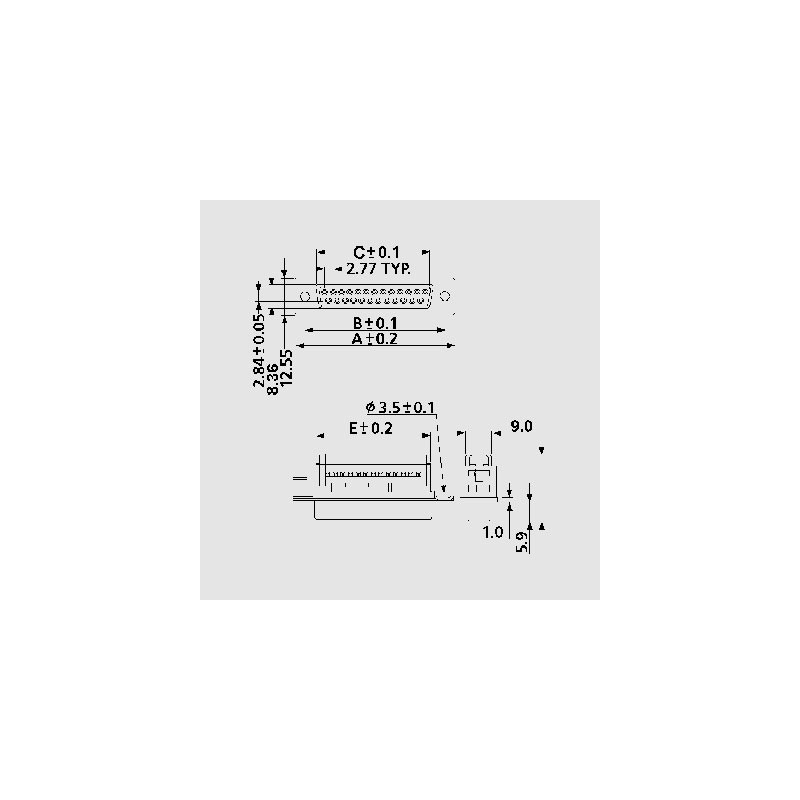

Specifications

manufacturer
Manufacturer's name 706-1-025M-A...
E [mm] 38,14mm
Number of poles 25
A [mm] 53,09
Width [mm] 47,04
E [mm] 38,14
C [mm] 38,96

Unit price

2,49 €

Stock: 1312
Further delivery:
CW 10/2027

Minimum order quantity 4 units or
multiples of 4.
