45055

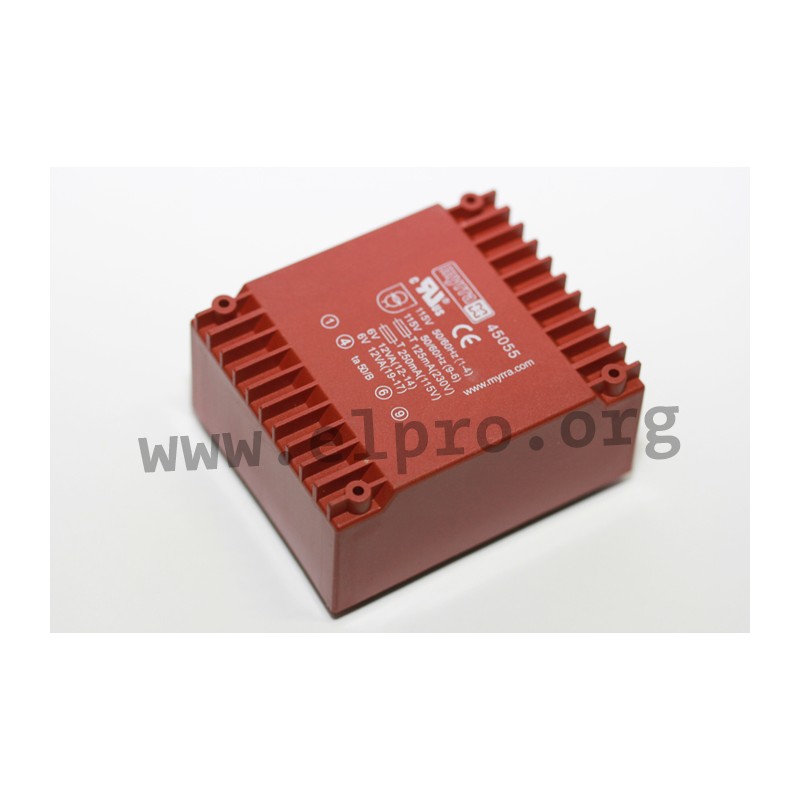

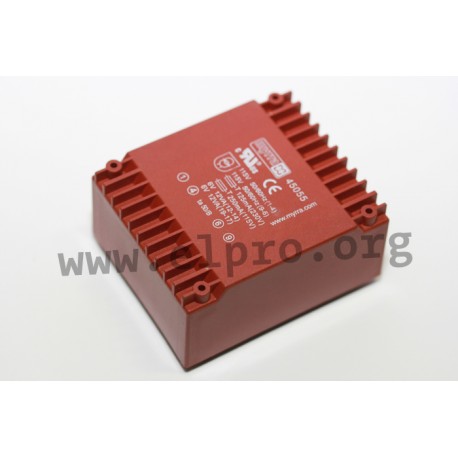

Myrra flat transformers

Flat transformers with 24VA, a UI39 core and a two chamber winding. These transformers are suitable for PCB mounting as well as for 115/230V power supplies and are vacuum encapsulated. They are not short circuit proof and comply with EN61558 as well as UL506. We offer the following types of this Myrra series: 45055, 45057, 45058 and 45060.

  • output: 24VA
  • core: UI 39
  • input voltage: 2x115V
  • not short circuit proof
45055

45055

38685 45055 45055 Myrra flat transformers. Flat transformers with 24VA, a UI39 core and a two chamber winding. These transformers are suitable for PCB mounting as well as for 115/230V power supplies and are vacuum encapsulated. They are not short circuit proof and comply with EN61558 as well as UL506. We offer the following types of this Myrra series: 45055, 45057, 45058 and 45060. output: 24VA core: UI 39 input voltage: 2x115V not short circuit proof

Specifications

manufacturer
Manufacturer's name 45055
Secondary voltage [V] 2x6
Secondary current [A] 2x2
Data Sheet
