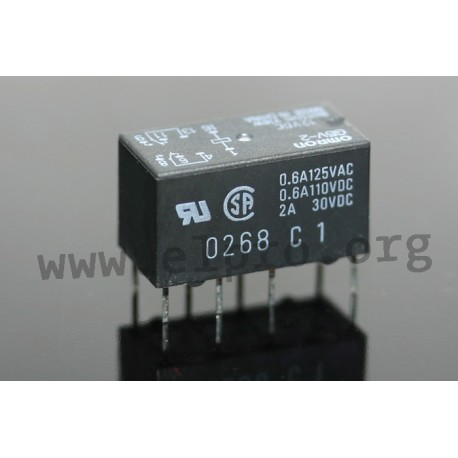

G5V-2 24V

rated current: 2A

* wash tight construction
* wide switching load range: 10mA...2A

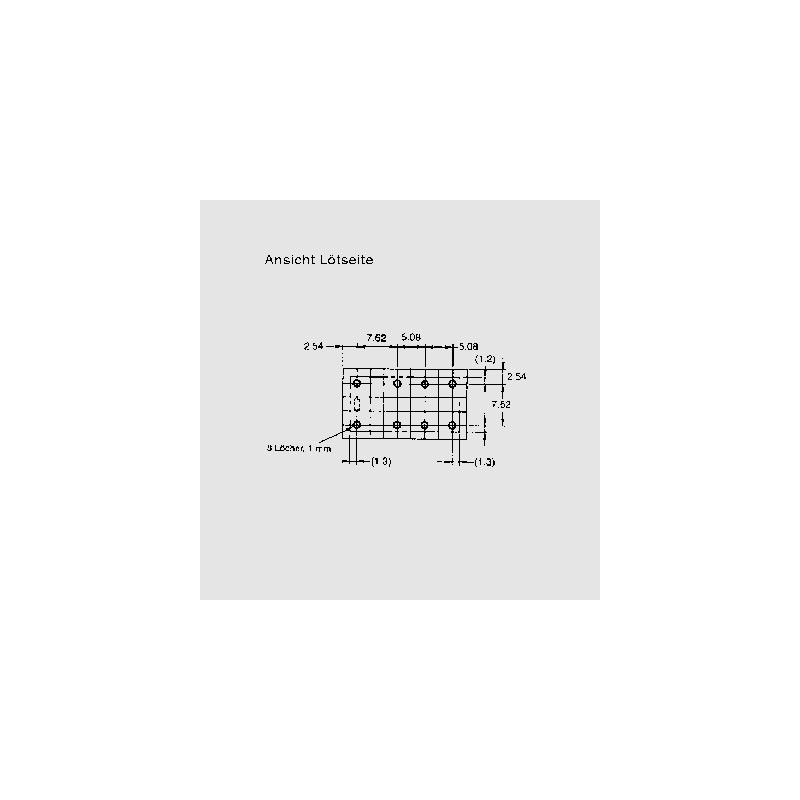

* PCB mounting or insertable in a 16-pole DIP/DIL socket
* in accordance with FCC regulations (part 68)

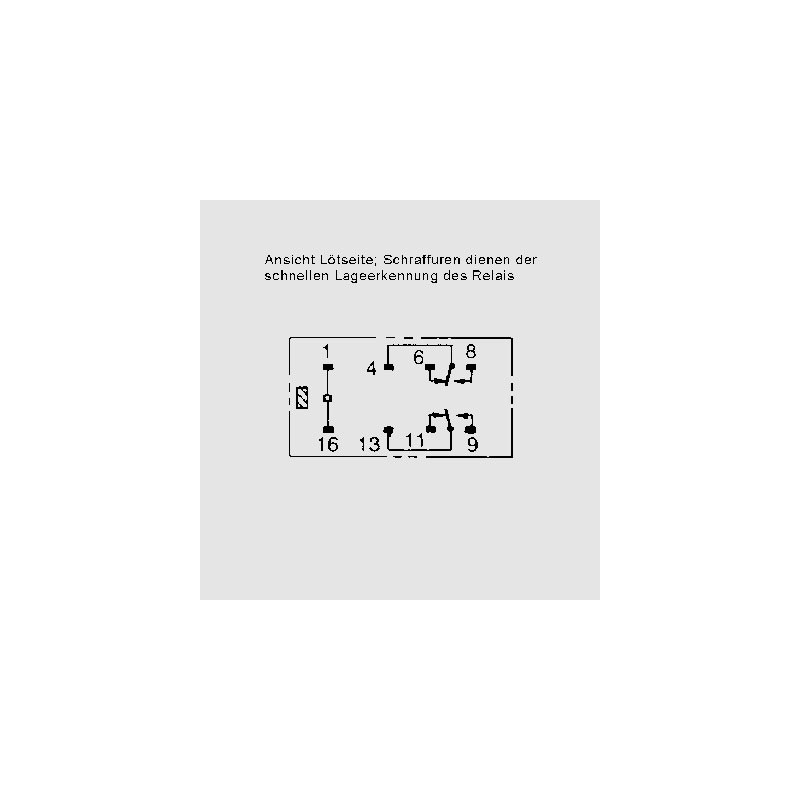

* contact: DPDT
* contact material: gold overlay silver alloy
* rated current, max.: 2A
* max. switching current
G5V_: 2A
G5V_H1: 1A
* max. switching voltage: 125V AC/DC
* max. switching power
G5V_: 62.5VA / 60W
G5V_H1: 62.5VA / 24W
* operate/release time: 7/3ms
* testing voltage
coil/contact: 1000V AC
contact/contact: 750V AC
* lifetime
mechanical: 15x106 operations
electrical: 1x105 operations
* operating temperature
G5V2-_: -25...+65°C
G5V2-_H1: -25...+70°C
* weight approx.: 5g

G5V-2 24V

11982 G5V-2 24V G5V2 24VDC G5V2 24VDC rated current: 2A. * wash tight construction* wide switching load range: 10mA...2A* PCB mounting or insertable in a 16-pole DIP/DIL socket* in accordance with FCC regulations (part 68)* contact: DPDT* contact material: gold overlay silver alloy* rated current, max.: 2A* max. switching currentG5V_: 2AG5V_H1: 1A* max. switching voltage: 125V AC/DC* max. switching powerG5V_: 62.5VA / 60WG5V_H1: 62.5VA / 24W* operate/release time: 7/3ms* testing voltagecoil/contact: 1000V ACcontact/contact: 750V AC* lifetimemechanical: 15x106 operationselectrical: 1x105 operations* operating temperatureG5V2-_: -25...+65°CG5V2-_H1: -25...+70°C* weight approx.: 5g

Specifications

manufacturer
Manufacturer's name G5V2 24VDC
Rated current [mA] 20,8
Switching current [A] 2
Nominal resistance [Ω] 1152
Response voltage [V] 16,8...28,8
Max. switching voltage [V] 125
Max. switching power [VA] 62,5
Max. starting current [A] 2
Data Sheet

Unit price

1,17 €

Stock: 3025
Next incoming goods:
CW 17/2024
1000 units


Further delivery:
CW 38/2024

Minimum order quantity 25 units or
multiples of 25.
