G6K-2F-24VDC

Omron PCB relay series G6K

  • SMD PCB relays

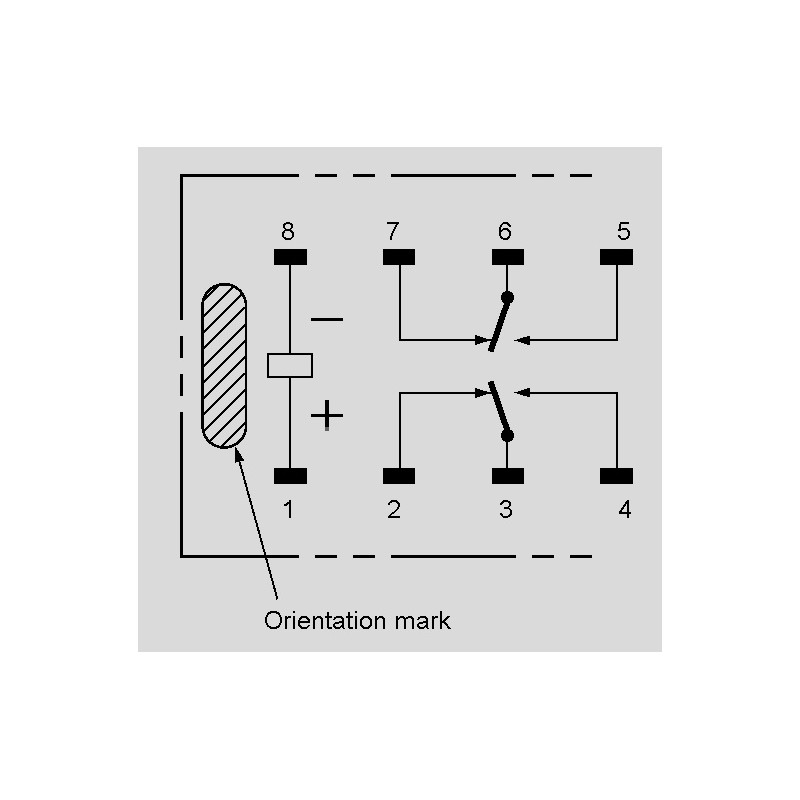

  • 2 changeover contacts (DPDT)

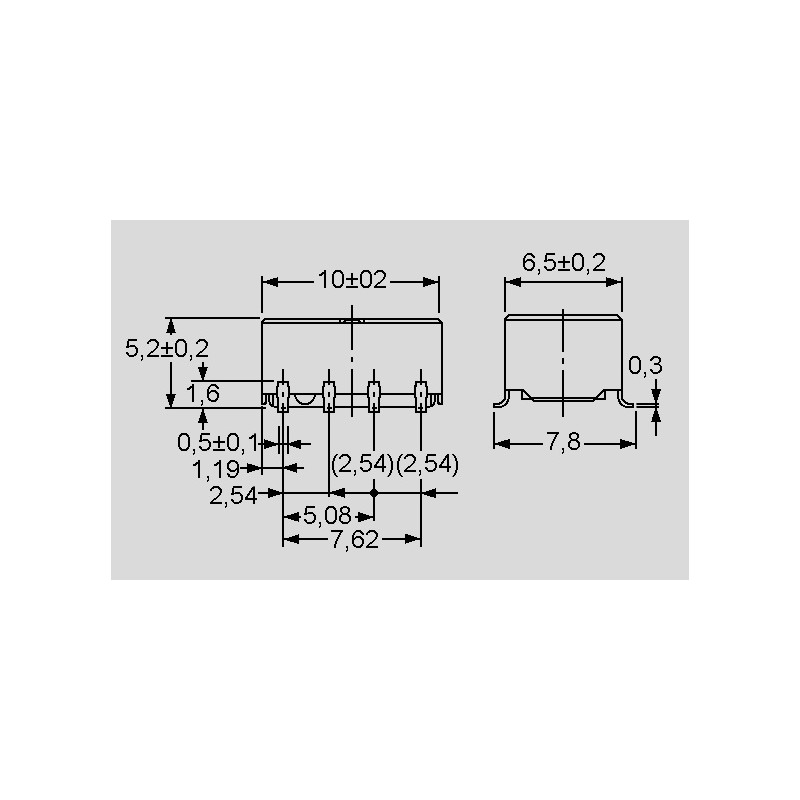

  • in a 10x6,5x5,2mm housing
  • with a high reliability due to gold-plated silver contacts
  • low coil power consumption
  • operating temperature: -40 to +70°C
  • maximal switching voltage: 125V AC, 60V DC
  • rated current: 1A
  • power consumption: 100mW

G6K-2F-24VDC

106876 G6K-2F-24VDC G6K-2F DC24 G6K-2F DC24 Omron PCB relay series G6K. SMD PCB relays  2 changeover contacts (DPDT) in a 10x6,5x5,2mm housing with a high reliability due to gold-plated silver contacts low coil power consumption operating temperature: -40 to +70°C maximal switching voltage: 125V AC, 60V DC rated current: 1A power consumption: 100mW

Specifications

manufacturer
Manufacturer's name G6K-2F DC24
Nominal voltage [V DC] 24
Coil resistance [Ω] 5220
Response voltage [V] 19,2
Nominal capacity [mW] 100
Data Sheet

Unit price

2,39 €

Stock: 0
Next incoming goods:
CW 33/2024
270 units


Further delivery:
CW 22/2025

Minimum order quantity 10 units or
multiples of 10.
