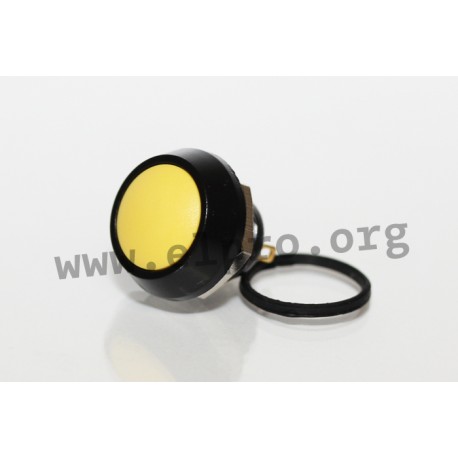

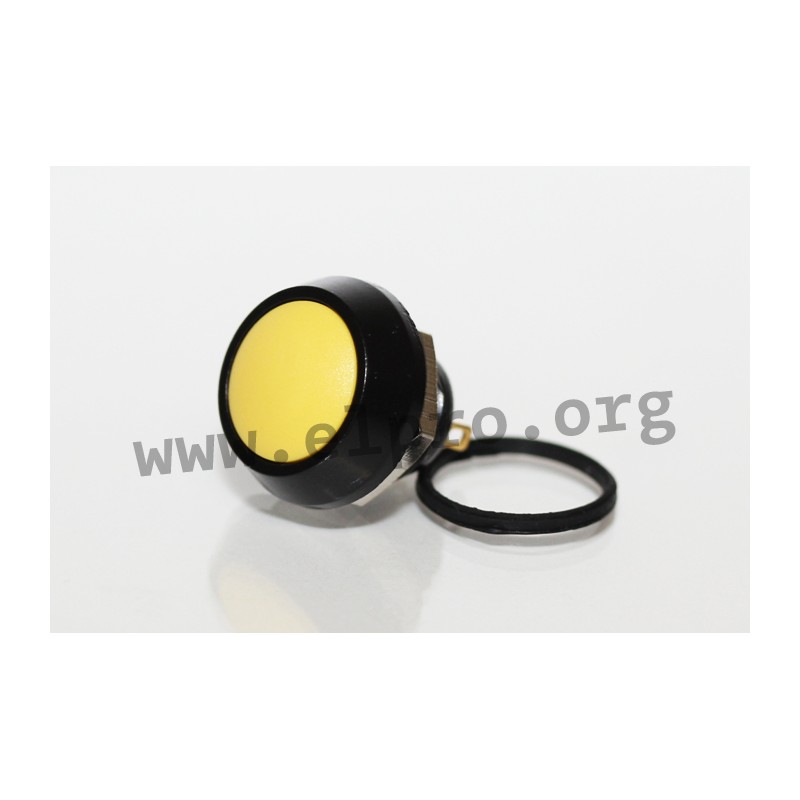

GQ12B-10JYA

pushbutton momentary switches for Ø12mm panel cut-out

• single pole input pushbutton momentary switch with SPST-NO contact
• series GQ12
• solder terminals
• domed profile
• protection class IP65
• secure tactile input-feedback
• material shell: Zn Al
• material actuator: PBT
• material contacts: CuZn 37/2,5µm Au body with colored actuator in yellow

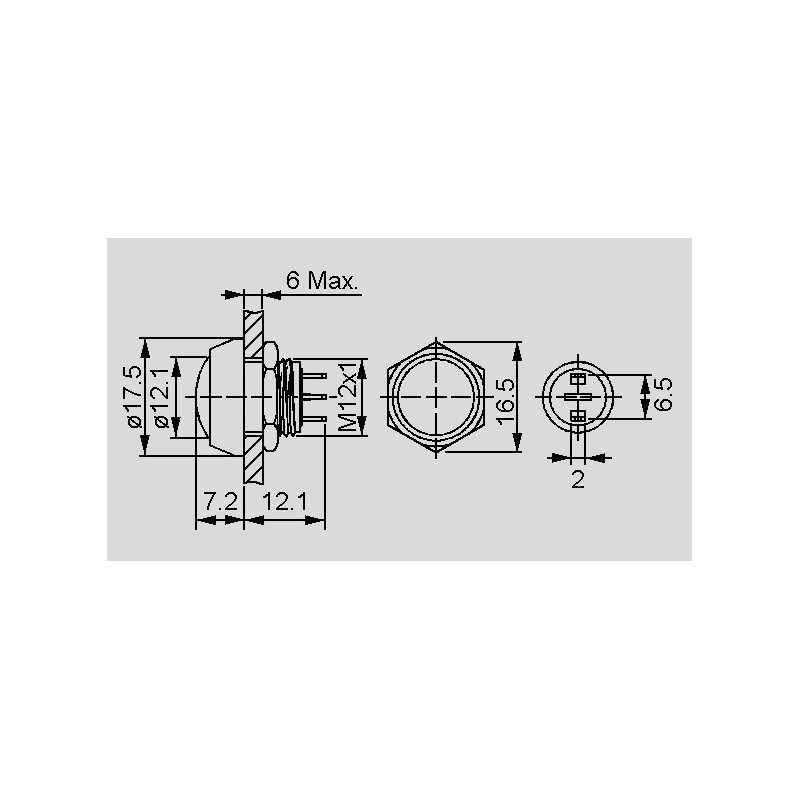

• panel cut-out: Ø12mm
• wall strength: 1...5mm
• switching voltage, max.: 36V DC
• switching current, max.: 2A
• contact resistance: <50mΩ
• insulation resistance: >1000mΩ
• operating force: 5,5N
• operating life/cycles, mechanical: 105
• operating life/cycles, electrical: 204
• temperature range: -20...+70°C

GQ12B-10JYA

39759 GQ12B-10JYA GQ12B-10JYA pushbutton momentary switches for Ø12mm panel cut-out. • single pole input pushbutton momentary switch with SPST-NO contact• series GQ12• solder terminals• domed profile• protection class IP65• secure tactile input-feedback• material shell: Zn Al• material actuator: PBT• material contacts: CuZn 37/2,5µm Au body with colored actuator in yellow• panel cut-out: Ø12mm• wall strength: 1...5mm• switching voltage, max.: 36V DC• switching current, max.: 2A• contact resistance: &lt;50mΩ• insulation resistance: &gt;1000mΩ• operating force: 5,5N• operating life/cycles, mechanical: 105• operating life/cycles, electrical: 204• temperature range: -20...+70°C

Specifications

manufacturer
Manufacturer's name GQ12B-10JYA
Colour yellow
Switching current [A] 2
Panel cut-out [mm] Ø 12
Data Sheet

Unit price

3,99 €

Stock: 153
Further delivery:
CW 24/2024
