ECWFE2W104J

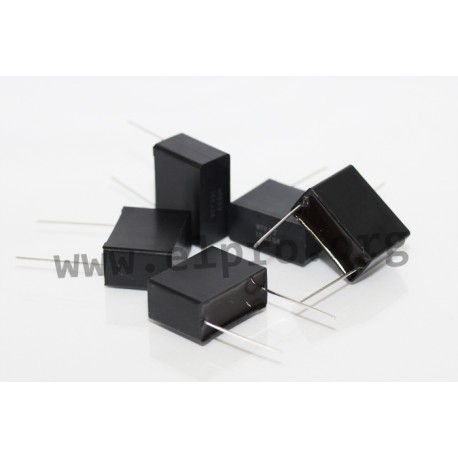

MKP capacitors

• dielectric consists of metallized polypropylene film (PPT)
• coating: flame-retardant epoxy resin
• small dimensions

• excellent frequency characteristics
• no power loss
• recommended for application in high current and high frequency circuits as well as in active filter circuits
•
±5% capacitance tolerance
• operating temperature: up -40 to +105°C
• by Panasonic



ECWFE2W104J

106502 ECWFE2W104J ECWFE2W104J MKP capacitors• dielectric consists of metallized polypropylene film (PPT)• coating: flame-retardant epoxy resin• small dimensions• excellent frequency characteristics• no power loss• recommended for application in high current and high frequency circuits as well as in active filter circuits• ±5% capacitance tolerance• operating temperature: up -40 to +105°C• by Panasonic

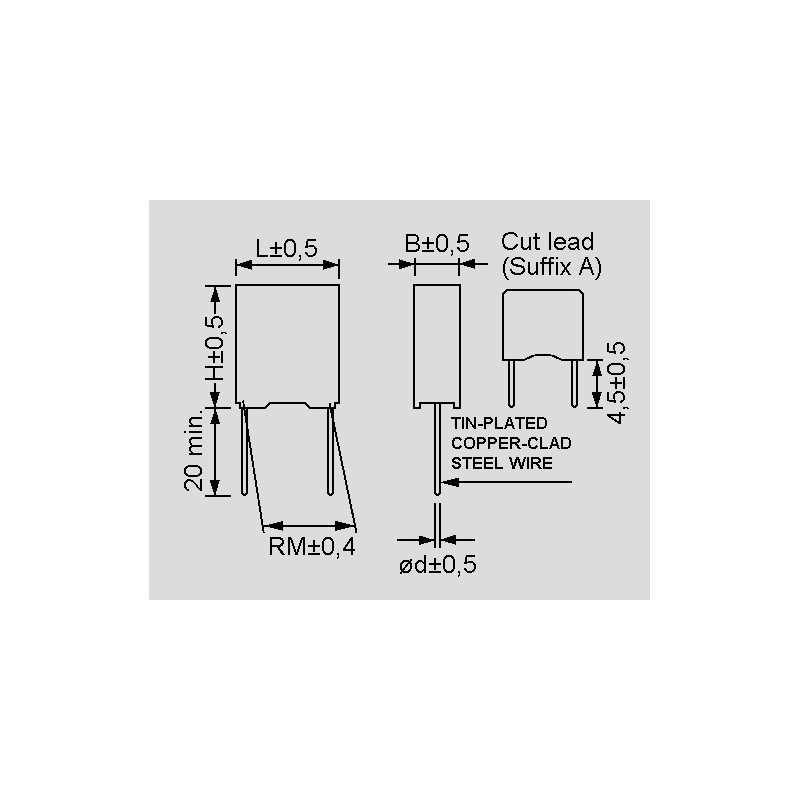

Specifications

manufacturer
Manufacturer's name ECWFE2W104J
Design loose
Nominal voltage [V DC] 450
Ød [mm] 0,6
Height [mm] 10,5
Width [mm] 5
Capacity [µF] 0,1
Pitch [mm] 10
Length [mm] 13
Data Sheet

Unit price

0,19 €

Stock: 1740
Further delivery:
CW 51/2024

Minimum order quantity 1 to 40 units or multiples of 50 plus 0 to 40 .
